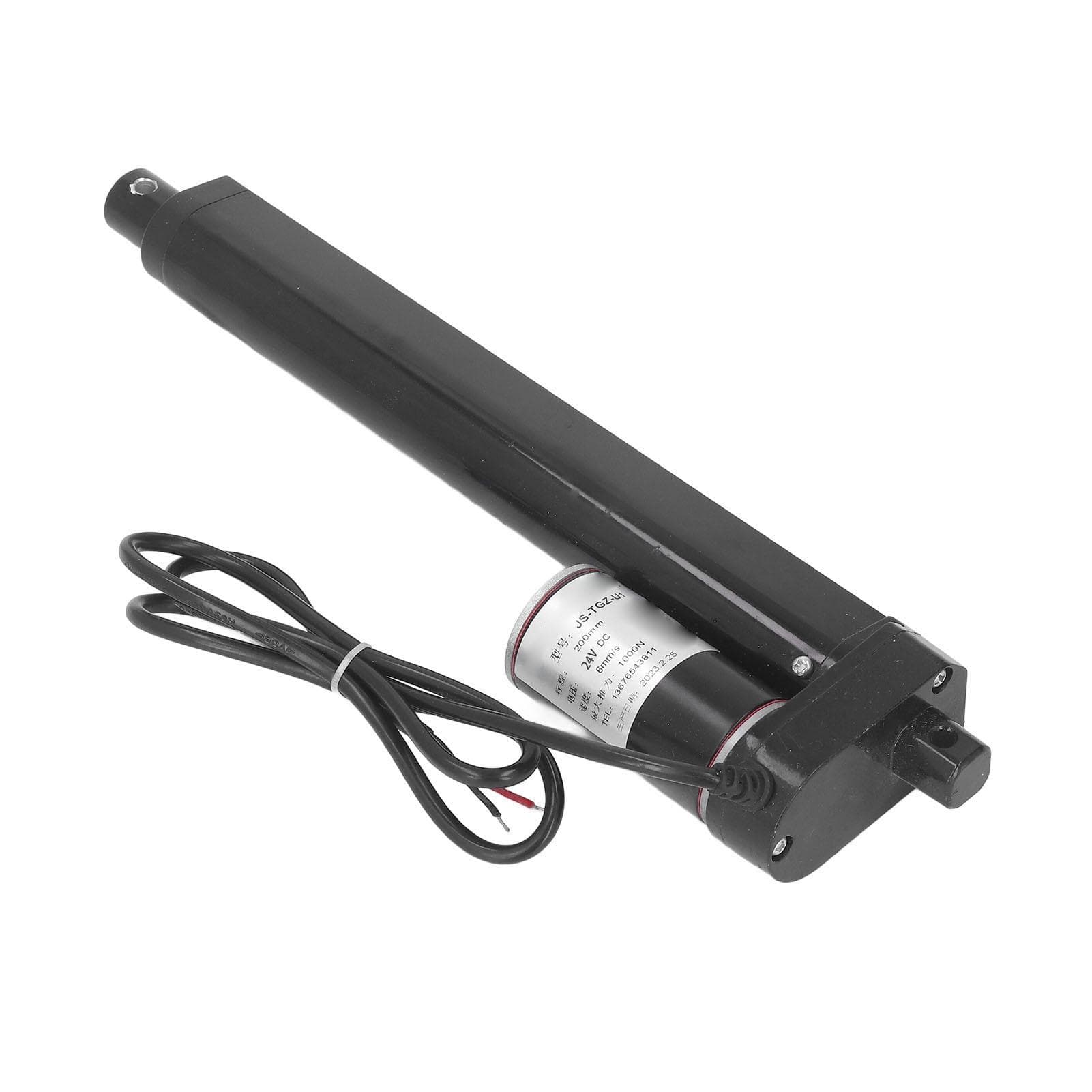

Linear Electric Actuator 1000N 200mm Stroke IP65 Black Linear Actuator with Limit Switch 24V Linear
Koogeelife|SKU 1012230020511vdfdswv
About this item
- Feature: 1. 200MM STROKE: Linear electric actuator has a maximum thrust of 1000N, and can achieve 200mm stroke, suitable for various applications. 2. WORK PRINCIPLE: Linear actuator is converting the rotary motion of the motor into linear reciprocating motion of the push rod to work. 3. WIDE USAGE: Linear actuator can be widely used for electric medical bed, sofa, industrial lifting system, etc., and also for smart home applications. 4. STURDY MATERIAL: Electric actuator is made of premium aluminum alloy, sturdy and stable, can withstand harsh working environment. 5. EASY MAINTENANCE: One electric actuator can be installed and maintained faster and easier than multiple hydraulic and pneumatic cylinders. Specification: Item Type: Linear Electric Actuator Material: Aluminum Alloy Model: JS TGZ U1 Stroke: Approx. 200mm7.9in Voltage: 24VDC Speed: 6mms Maximum Thrust: 1000N No Load Current: 0.5A Load Current: 3A Rated Power: 20W to 30W Ambient Temperature: 40 celsius to 65 celsius Noise Level: <55dB Limit Switch: Built in Protection Grade: IP65 Color: Black Use: Electric medical bed, electric sofa, electric exhibition stand lifting rod, industrial electric lifting system, camera rack, head camera, wedding system . Package List: 1 x Linear Electric Actuator200MM STROKE: Linear electric actuator has a maximum thrust of 1000N, and can achieve 200mm stroke, suitable for various applications. WORK PRINCIPLE: Linear actuator is converting the rotary motion of the motor into linear reciprocating motion of the push rod to work. WIDE USAGE: Linear actuator can be widely used for electric medical bed, sofa, industrial lifting system, etc., and also for smart home applications. STURDY MATERIAL: Electric actuator is made of premium aluminum alloy, sturdy and stable, can withstand harsh working environment. EASY MAINTENANCE: One electric actuator can be installed and maintained faster and easier than multiple hydraulic and pneumatic cylinders.
