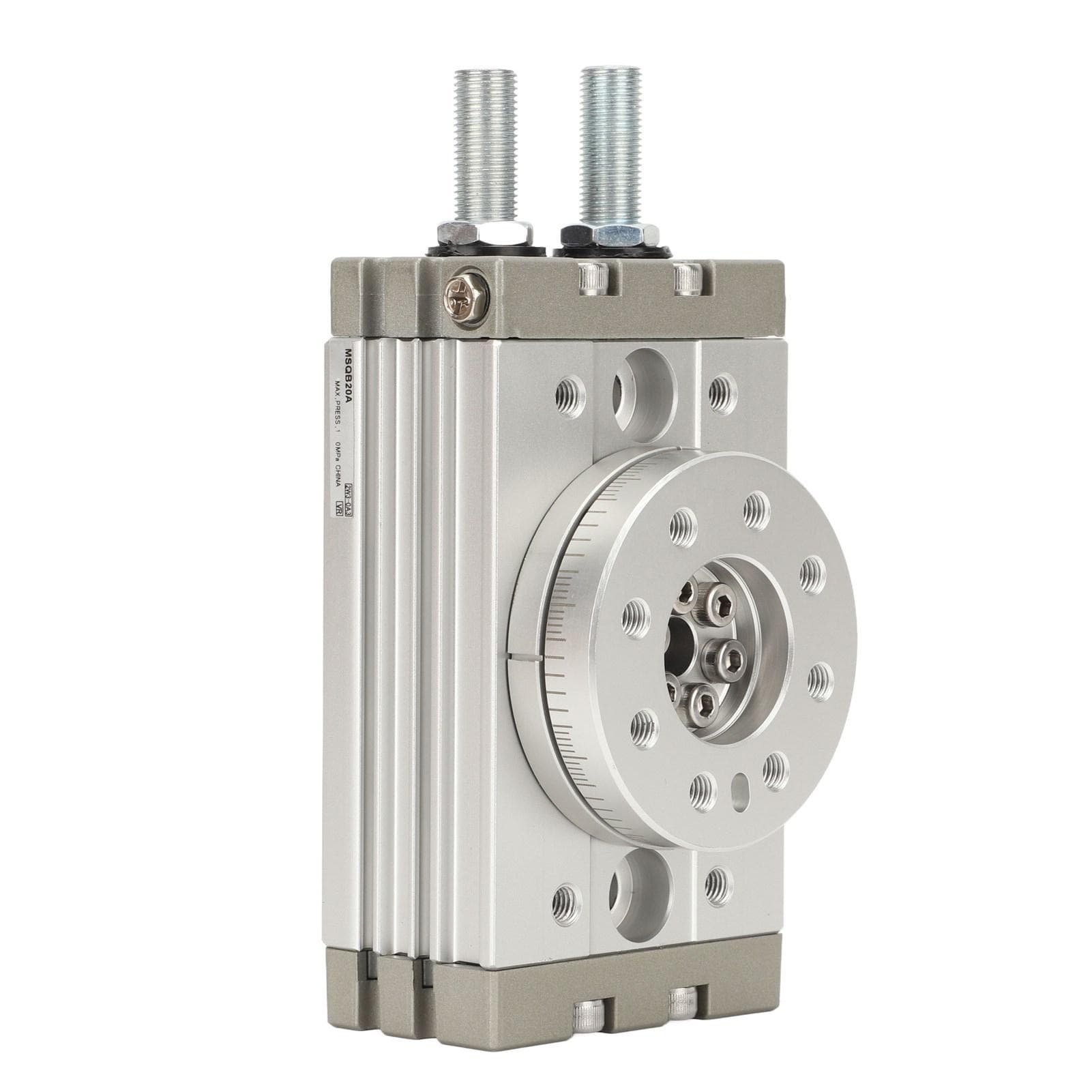

Rotary Pneumatic Air Cylinder 0 to 190 Degree Adjustable Aluminum Alloy High Strength Waterproof

About this item

• Feature: 1. [Angle Adjustable] The rotary cylinder uses an angle adjustment unit, and can be adjusted by 0 to 190 degree, the swing is smoothly and accurate. 2. [Design Feature] Built in magnetic ring, can be installed with magnetic switch. The cylinder is double acting, alternating air supply from both sides of the piston, one or two way output force. 3. [Aluminum Alloy Made] The cylinder is made of aluminum alloy, which is sturdy, hard to corrode and rust, can work normally in high and low temperature environment, and has the ability to prevent dust and water. 4. [Large Output Force] The air cylinder is designed with roller bearing, with large output force, the sealing performance will be improved automatically with the increase of pressure. 5. [Wide Application] Cylinder is widely used in automation equipment in light industry, chemical industry, textile, electronics, machinery and other industries. Specification: Item Type: Rotary Pneumatic Air Cylinder Material: Aluminum Alloy Model MSQB 10A MSQB 20A MSQB 30A Inlet Thread Hole M5x0.8 M5x0.8 G18 Allowable Motion Energy (J) 0.007 0.025 0.048 Stable Swing Time Adjustment Range in Action (S90 degrees ) 0.21 0.21 0.21 Use Fluid Air Maximum Service Pressure 1MPa Minimum Service Pressure 0.1MPa Ambient Temperature and Operating Fluid Temperature 060 celsius (Non Condensing) Angle Adjustment Range 0190 degrees Maximum Swing Angle 190 degrees Cylinder Inner Diameter D15 D18 D21 Port Size End Face Piping M5x0.8 M5x0.8 G18 Side Piping M5x0.8 . Package List: 1 x Rotary Pneumatic Air Cylinder[Angle Adjustable] The rotary cylinder uses an angle adjustment unit, and can be adjusted by 0 to 190 degree, the swing is smoothly and accurate. [Design Feature] Built in magnetic ring, can be installed with magnetic switch. The cylinder is double acting, alternating air supply from both sides of the piston, one or two way output force. [Aluminum Alloy Made] The cylinder is made of aluminum alloy, which is sturdy, hard to corrode and rust, can work normally in high and low temperature environment, and has the ability to prevent dust and water. [Large Output Force] The air cylinder is designed with roller bearing, with large output force, the sealing performance will be improved automatically with the increase of pressure. [Wide Application] Cylinder is widely used in automation equipment in light industry, chemical industry, textile, electronics, machinery and other industries.
