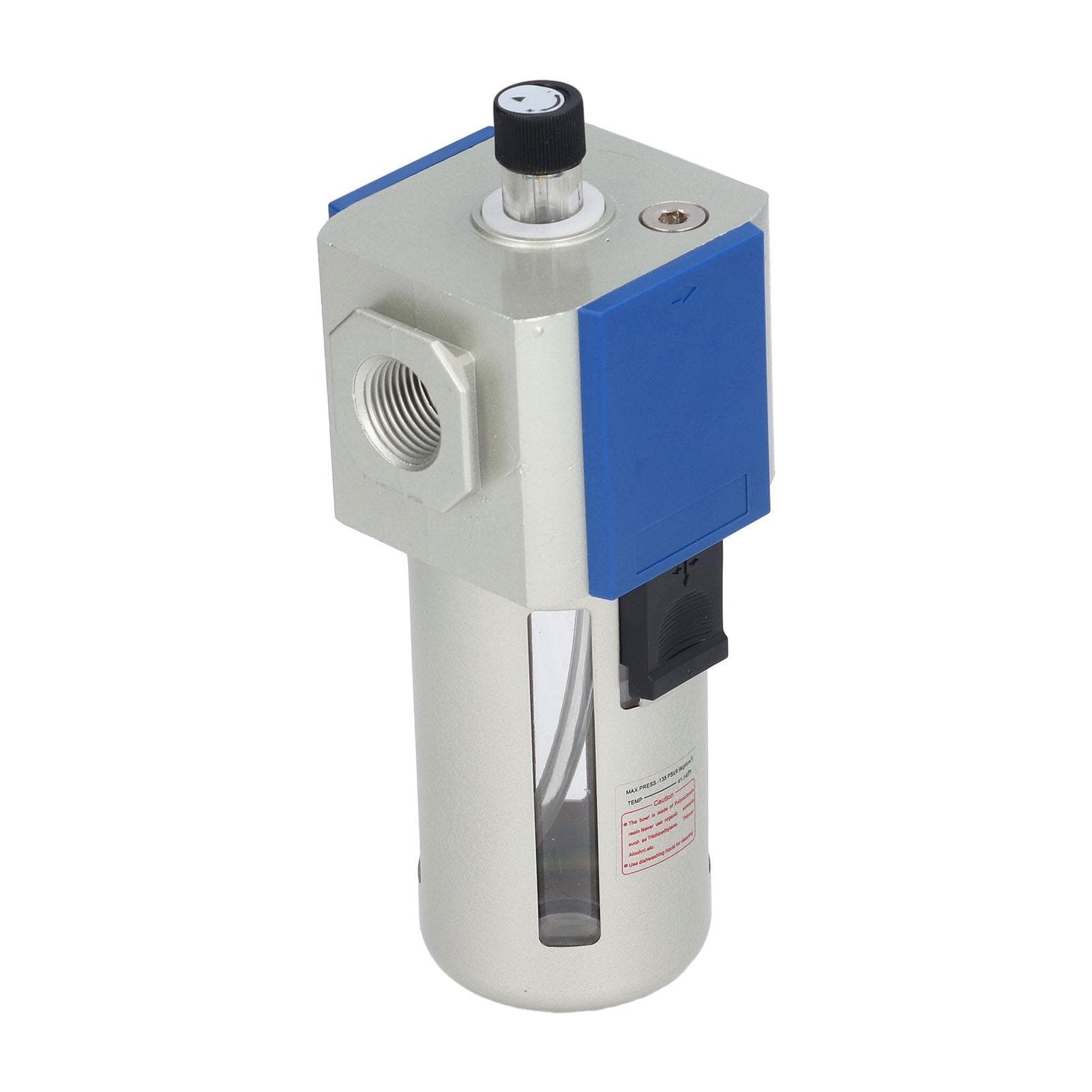

Air Compressor Lubricator Pneumatic Filter Separator Oil Filling Device 160CC 0.05?0.9MpaGL40015

About this item

• Feature: 1. GAP SEALING: The oil drip structure adopts the form of gap sealing, and the oil supply adjustment is more stable and reliable. 2. OIL ADJUSTMENT RING: The oil adjustment ring can only rotate one circle, and the oil quantity can be calculated according to the scale ring position. 3. SPECIAL NOZZLE: The special drip nozzle structure produces negative pressure at the drip outlet and low fogging flow. 4. LARGE CAPACITY: The capacity of the oil cup is 160CC, with large capacity, and supports non stop gas refueling. 5. PRESSURE RANGE: The working pressure range is 0.05?0.9Mpa (20?130Psi), with wide applications, can be installed with fixed bracket. Specification: Item Type: Air Compressor Lubricator Material: Aluminum Alloy Working Medium: Air Operating Pressure Range: 0.050.9Mpa (20130Psi) Guaranteed Pressure Resistance: 1.5Mpa (215Psi) Operating Temperature Range: 20 celsius 70 celsius Suggested Lubrication Oil: ISO VG32 or equivalent oil Oil Cup Capacity: 160CC. Package List: 1 x Air Compressor Lubricator Note: 1. Keep the pipeline clean and prolong the service life2. The cup body is made of polycarbonate resin, do not use solvents, such as trichloroethylene dilution, etc., use detergent for cleaningGAP SEALING: The oil drip structure adopts the form of gap sealing, and the oil supply adjustment is more stable and reliable. OIL ADJUSTMENT RING: The oil adjustment ring can only rotate one circle, and the oil quantity can be calculated according to the scale ring position. SPECIAL NOZZLE: The special drip nozzle structure produces negative pressure at the drip outlet and low fogging flow. LARGE CAPACITY: The capacity of the oil cup is 160CC, with large capacity, and supports non stop gas refueling. PRESSURE RANGE: The working pressure range is 0.05?0.9Mpa (20?130Psi), with wide applications, can be installed with fixed bracket.
