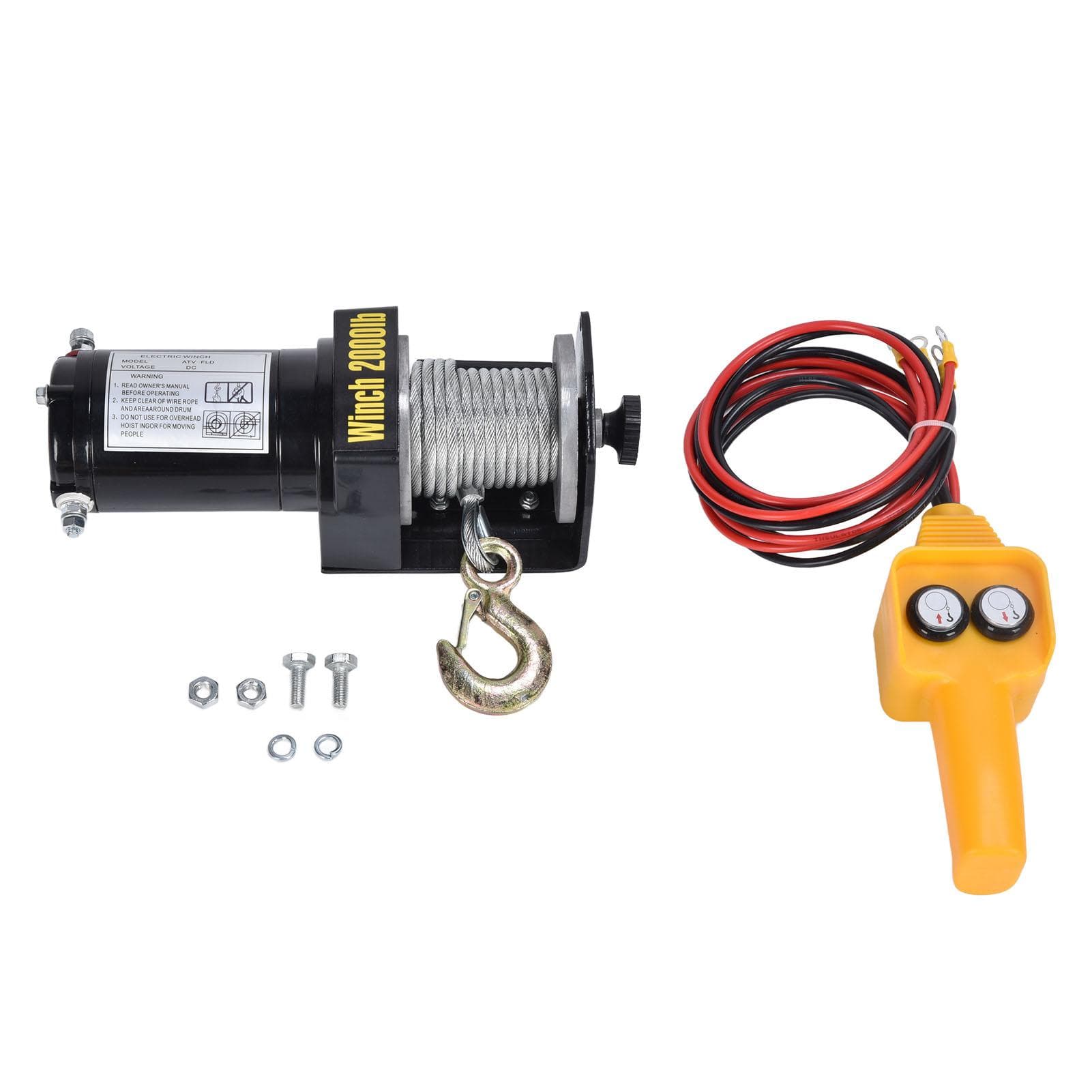

12V 2000LBS Electric Winch Steel Wire Rope Hoist Crane Winch Controller Kit with Alloy Hook

About this item

• Feature: 1. COPPER CORE: The winch adopts copper core terminal, with good conductivity, low resistance, low heat generation and not easy to corrode. 2. SOLID WIRE ROPE: Adopt multiple strand winding solid steel wire rope, with strong enough and more wear resistant. 3. WINCH CLUTCH: There is clutch on the right side of the electric winch, open the clutch shell to manually release the rope. 4. ALLOY STEEL HOOK: Equipped with alloy steel hook, buckle design to prevent unhooking, with high tensile strength after quenching. 5. EASY OPERATION: With automatic brake device and equipped with a controller, easy to operate and strong in practicability. Specification: Item Type: Electric Winch Material: Stainless Steel, ABS Rated Tension: 2000lbs(907kgs) Motor: 0.7kw1.0hp Transmission Ratio: 150 : 1 Transmission Mode: Planetary gear transmission Wire Rope Diameter: Approx. 4mm 0.16in Wire Rope Length: Approx. 6 meter 19.7ft Roll Diameter: Approx. 31.5mm 1.24in Roll Length: Approx. 72mm 2.8in Brake Device: Automatic Brake Size: Approx. 286 x 100 x 105mm 11.3 x 3.9 x 4.1in Tension Ibs (kg) Speed ftmin (mmin) Current (A) 0 10.5 (3.2) 8 500 (227) 9.2(2.8) 30 1000 (454) 7.2 (2.2) 60 1500 (680) 5.2(1.6) 90 2000 (907) 2.9 (0.9) 120 Number of Layer Tension lbs(kgs) Wire Rope Length on Roll ft(m) 1 2000(907) 5.9(1.8) 2 1630(740) 8.2(2.5) 3 1380(627) 13.1(4.0) 4 1190(540) 21.3(6.5) 5 1050(477) 30.0(9.2) . Package List: 1 x Electric Winch1 x Controller2 x Screws2 x Nuts2 x Washers1 x User Manual Note: 1. Observe the working environment and do not use it in a humid place. Do not get in the rain, and do not use power tools when there are flammable gases and liquids.2. Keep away from children. Do not allow children to operate machines, tools or connecting cables.3. Dress correctly. Do not wear loose clothes and jewelry, which can easily get caught in moving parts. It is recommended to wear protective, non conductive clothes and non slip shoes during operation. Hide long hair with protection.4. Do not operate tools when taking alcohol and drugs.5. Keep your body and hands away from the fair during operation.6. Do not lift objects vertically. The winch can only be used horizontally.7. On the winch roll, the wire rope must be wound for no less than 5 turns. The fasteners at the end of the wire rope cannot bear the full load.8. Pull the connecting wire to move the machine, the rope will break.9. Wear gloves and use ropes. Do not let the rope slip in your hands.10. Do not overload. For more than half of the load capacity, we recommend using the optional pulley to double the wire rope.11. The machine motor must be running during operation. If the motor is turned off and a relatively large winch is operated, the battery will be relatively weak when starting the motor.12. Use nylon slings. Do not hang the wire rope upside down, it will damage the wire rope.13. Do not use winches to lift or move people.14. Do not keep pulling from extreme angles. This will cause the wire rope to pile up at the end of the drum.15. If there is a load on the winch, do not release the clutch.COPPER CORE: The winch adopts copper core terminal, with good conductivity, low resistance, low heat generation and not easy to corrode. SOLID WIRE ROPE: Adopt multiple strand winding solid steel wire rope, with strong enough and more wear resistant. WINCH CLUTCH: There is clutch on the right side of the electric winch, open the clutch shell to manually release the rope. ALLOY STEEL HOOK: Equipped with alloy steel hook, buckle design to prevent unhooking, with high tensile strength after quenching. EASY OPERATION: With automatic brake device and equipped with a controller, easy to operate and strong in practicability.
