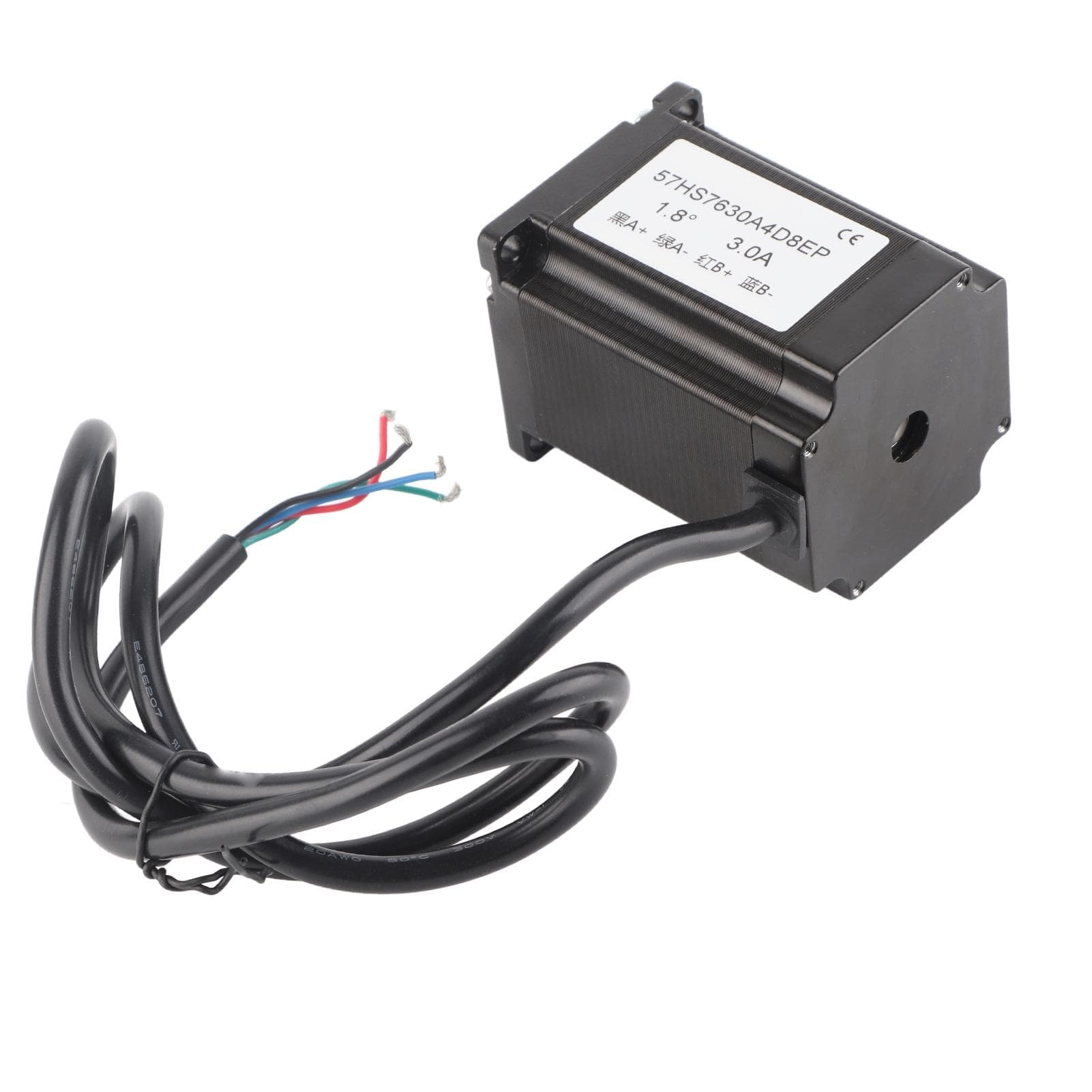

57 Stepper Motor 4 1.8NM 1.8 degrees Angle Low Noise Machinery Transmission Parts 24V 3A

About this item

• Feature: 1. The 57 stepper motor has a rated voltage of 24V, supports both DC and AC, and has strong practicability. 2. Adopts advanced technology bearing, has low self inductance and good responsiveness. 3. The rated speed of the motor is 800rpm, the step angle is 1.8 degrees , and the operation is more stable. 4. Made of die cast aluminum and stainless steel, which is not easy to corrode or rust, and can be used for a long time. 5. The internal rotor is coated with imported rotor glue, which can prevent the increase of motor noise caused by burrs after surface oxidation. Specification: Item Type: Stepper Motor Material: Die cast aluminum, stainless steel, silicon steel sheet Purpose: Stepper motor Rated Power: 72W Product Type: AC and DC dual use motor Rated Voltage: 24V Rated Current: 3A Static Moment: 1.8N.cm Positioning Moment: 6N.cm Momentum of Inertia: 440g.cm2 Rated Rotating Speed: 800rpm Rated Torsion: 1.8NM Motor Length: Approx. 76mm 3in Shaft Diameter: Approx. 8mm 0.3in Step Angle: 1.8 degrees Number: 4 Working Environment Temperature: 2050 celsius Working Environment Humidity: 15percent 90percent . Package List: 1 x Stepper Motor Note: 1. Do not use it beyond the voltage or current range.2. Do not work beyond the rated speed.The 57 stepper motor has a rated voltage of 24V, supports both DC and AC, and has strong practicability. Adopts advanced technology bearing, has low self inductance and good responsiveness. The rated speed of the motor is 800rpm, the step angle is 1.8 degrees , and the operation is more stable. Made of die cast aluminum and stainless steel, which is not easy to corrode or rust, and can be used for a long time. The internal rotor is coated with imported rotor glue, which can prevent the increase of motor noise caused by burrs after surface oxidation.
