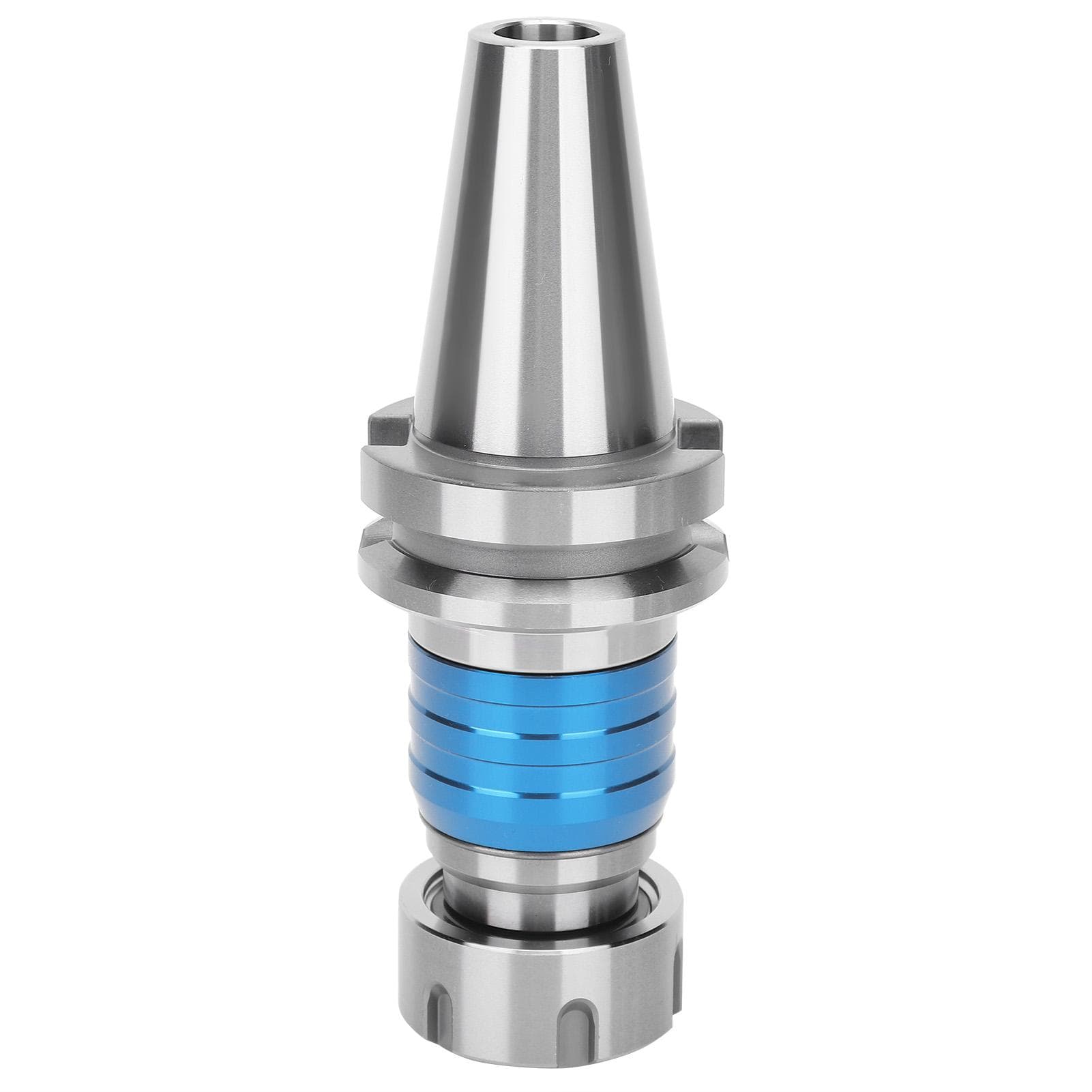

Tapping Holder Tension Compression CNC Milling Machine Clamping Taper BT40?ETP32?100

About this item

• Feature: 1. Possess high thermal strength and oxygen resistance, finish carburizing heat treatment, internal and external grinding, bring strong wear resistance and longer life 2. Thread accuracy and surface are quenched and hardened to improve durability and accuracy, and the collet clamp is more compact 3. Internal hole after grinding treatment, suitable for high?elaboration machine tool processing, which requires longer life than ordinary tool holders 4. Telescopic floating function effectively slows down the force of the tap when it is CCW, increases the life of the tap by more than 85percent , and greatly improves the cutting efficiency 5. Come with better elasticity, lower wear, higher concentricity, better protection due to too fast feed and retraction of the tapping, breaking of the tap and pressure?controlled tensile deformation 6. Used for tapping of machining center, telescopic floating tool holder, adjustable machine clearance compensation, and special chuck to prevent thread breakage Specification: Item Type: Tapping Holder Material: 20CrMnTi Model: BT40ETP32100 Product Use: Clamping wire tap (milling machine, CNC machining center) Tapping Range: M2M30 D (outer diameter): Approx. 46mm 1.8in L2: Approx. 25mm 1in Nut Outer Diameter: Approx. 50mm 2in Nut Height: Approx. 25mm 1in Standard Speed: Below 2000 Adapter Chuck: ERG32 Size: Approx. 18mm 0.7in 5mm 0.2in. Package List: 1 x Tapping HolderPossess high thermal strength and oxygen resistance, finish carburizing heat treatment, internal and external grinding, bring strong wear resistance and longer life Thread accuracy and surface are quenched and hardened to improve durability and accuracy, and the collet clamp is more compact Internal hole after grinding treatment, suitable for high?elaboration machine tool processing, which requires longer life than ordinary tool holders Telescopic floating function effectively slows down the force of the tap when it is CCW, increases the life of the tap by more than 85percent , and greatly improves the cutting efficiency Come with better elasticity, lower wear, higher concentricity, better protection due to too fast feed and retraction of the tapping, breaking of the tap and pressure?controlled tensile deformation
