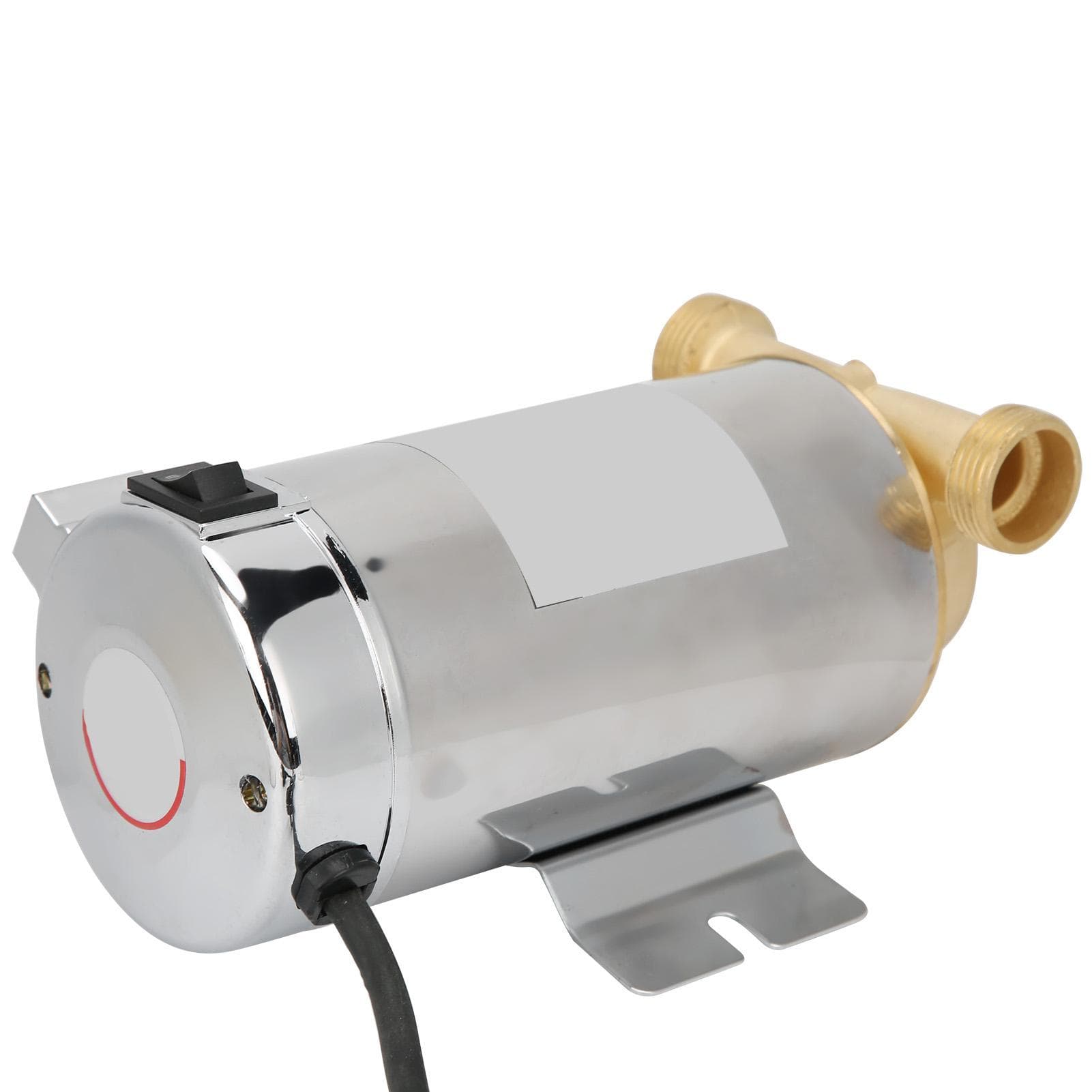

Booster Pump Small Automatic Household Shower Water Heater Supply Pump Kit 100W WG?100EU Plug 220V

About this item

• Feature: 1. This pump is mainly used to improve the flow in the low water pressure area and increase the water pressure such as the faucet. 2. Adopts all copper core coil winding with multiple strong magnetic stainless steel sheets and a copper double?sided impeller with good performance. 3. The speed can be 2860min and the maximum flow is 12 Lmin, and it has strong power and can run with low noise. 4. The operation of the pump provides resettable temperature control protection to reduce the temperature of the water fluctuating cold and hot. 5. The pump can be used in shower rooms or gardens, and can be installed in water tanks, wells or pools and other water sources. Specification: Item Type: Booster Pump Model: WG100 Rated Power: 100W Rated Current: 0.4A Maximum Lift: Approx. 10m 32.8ft Maximum Flow: 12 Lmin Water Inlet and Outlet Thread Specifications Without Water Flow Switch (manual): NPT 34 male thread Water Inlet and Outlet Thread Specification with Water Flow Switch (automatic) : NPT 12 male thread Body Material: Stainless steel Caliber: Approx. 15mm 0.6in Insulation Class: E Capacitance: 3.5uf Speed: 2860min Power Cord Length: Approx. 1m 3.3ft Size After Installation(L x W x H): Approx. 17 x 17 x 10cm 6.7 x 6.7 x 3.9in Application Scenarios: 1. Insufficient water pressure causes the water heater to not work 2. The water flow is too small, and domestic water becomes a problem 3. The water pressure is unstable and the floor is too high 4. The bath water is cold and hot, and the water is weak and intermittent. How to Use: 1. First of all, you can directly connect the pipeline with the booster pump. At this time, the thread specification is NPT34, and the pipeline corresponding to the female thread can be connected. 2. Install the water flow switch and the pure copper joint kit, the thread specification after installation is NPT12, and connect the corresponding female threaded pipe. Package List: 1 x Booster Pump1 x Water Flow Switch2 x Sealing Ring2 x Pure Copper ConnectorThis pump is mainly used to improve the flow in the low water pressure area and increase the water pressure such as the faucet. Adopts all copper core coil winding with multiple strong magnetic stainless steel sheets and a copper double?sided impeller with good performance. The speed can be 2860min and the maximum flow is 12 Lmin, and it has strong power and can run with low noise. The operation of the pump provides resettable temperature control protection to reduce the temperature of the water fluctuating cold and hot. The pump can be used in shower rooms or gardens, and can be installed in water tanks, wells or pools and other water sources.
