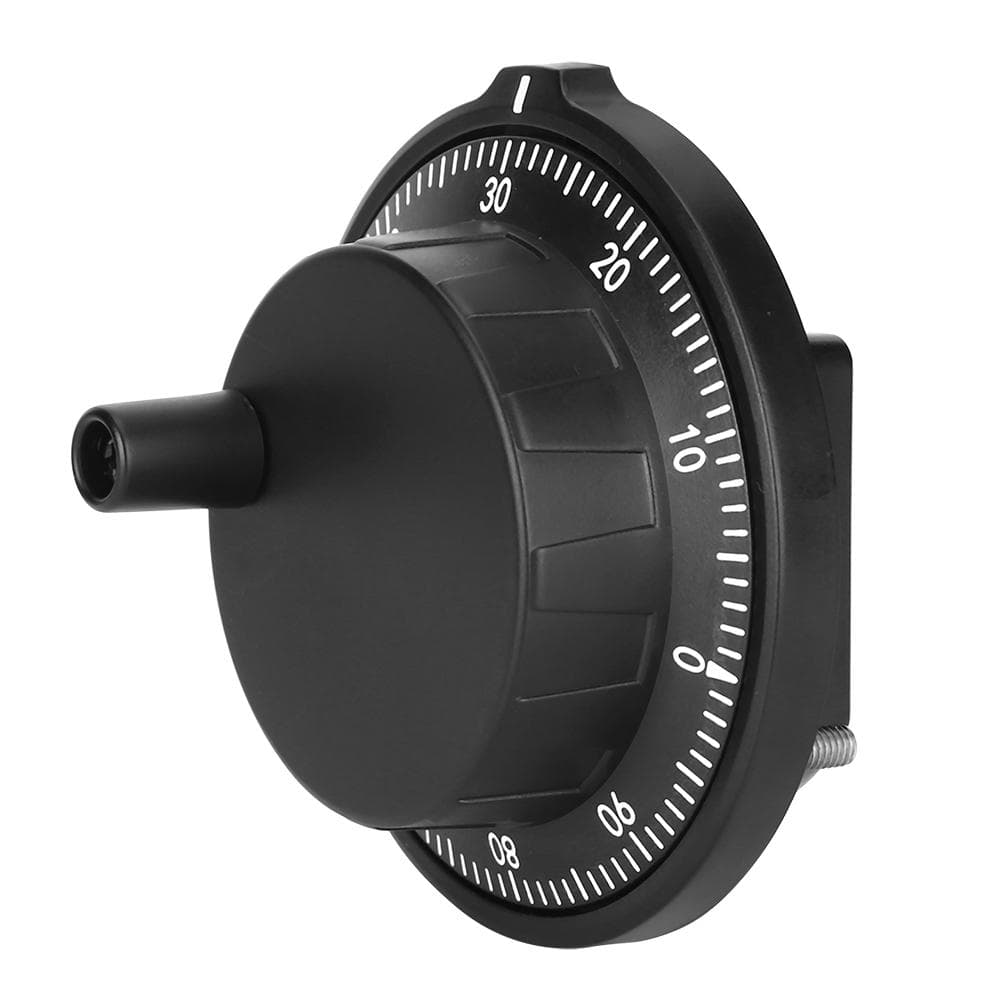

Handwheel Electronic CNC Manual Pulse Generator Hand Wheel 80mm 100PPR

About this item

• Feature: 1. High?end CNC handwheel, finely crafted, has excellent quality and good performance. 2. High?quality plastic material, hard, corrosion?resistant, and has long service life. 3. 5V, 100PPR, A A? B B?, suitable for 98percent of Chinese systems, to better meet your needs. 4. Small, compact, easy to carry and operate, can bring you more convenience. 5. Well?made, excellent quality, higher work efficiency, and bring you a better experience. Specification: Condition: 100percent Brand NewItem Type: HandwheelMaterial: PlasticColor: As the Picture ShownEncoder Specification: Power Supply Voltage: DC5+10percent Pulse Number: 100PPR Output Voltage (VH) (Maximum): more than 3.8V Output Voltage (VL) (Minimum): less than 0.3V Output Current: 80mA Model Format: A.B.A.B Output Resistance: DIFF Response Speed: 5KHz Current Consumption: 50mA Starting Torque (Maximum): 150g Axial Volume (minimum): R 2kg+10percent Rotation Life (minimum): 1KKR Operating Temperature: 0 celsius +50 celsius Storage Temperature: 10 celsius +70 celsius Operating Humidity: 3580percent Vibration Resistance: 0.5G Heavy Strike Resistance: 2G.Wiring Table Specification: Output Signal: A B V0 V+ A B TerminalLine Driver A: 1 2 3 4 5 6 Instruction: YP800100B1L represents a large handwheel with a Diameter of 80mm, the output is 100 pulses, the working voltage is 5V, and the output mode is longline output. This product is suitable for CNC machine tools, two orthogonal output signals (A, B), 100 pulses , The output mode is longline drive. Package List: 1 x Handwheel1 x Instruction3 x Terminal Note: 1. The encoder is a precision instrument. It is forbidden to knock, drop, bump, etc. during installation. Improper installation or use will affect the performance and service life of the encoder.2. Pay attention to the shaft load of the encoder during installation, and must not exceed the limit load.3. Be careful not to exceed the limit speed of the encoder during use. If the speed exceeds the limit, the electrical signal of the encoder may be lost.4. The wiring must be correct. If the wiring error will cause damage to the internal circuit of the encoder, the unused cable shall be insulated before the initial starting.5. Maximum response frequency limited maximum speed.High?end CNC handwheel, finely crafted, has excellent quality and good performance. High?quality plastic material, hard, corrosion?resistant, and has long service life. 5V, 100PPR, A A? B B?, suitable for 98percent of Chinese systems, to better meet your needs. Small, compact, easy to carry and operate, can bring you more convenience. Well?made, excellent quality, higher work efficiency, and bring you a better experience.
