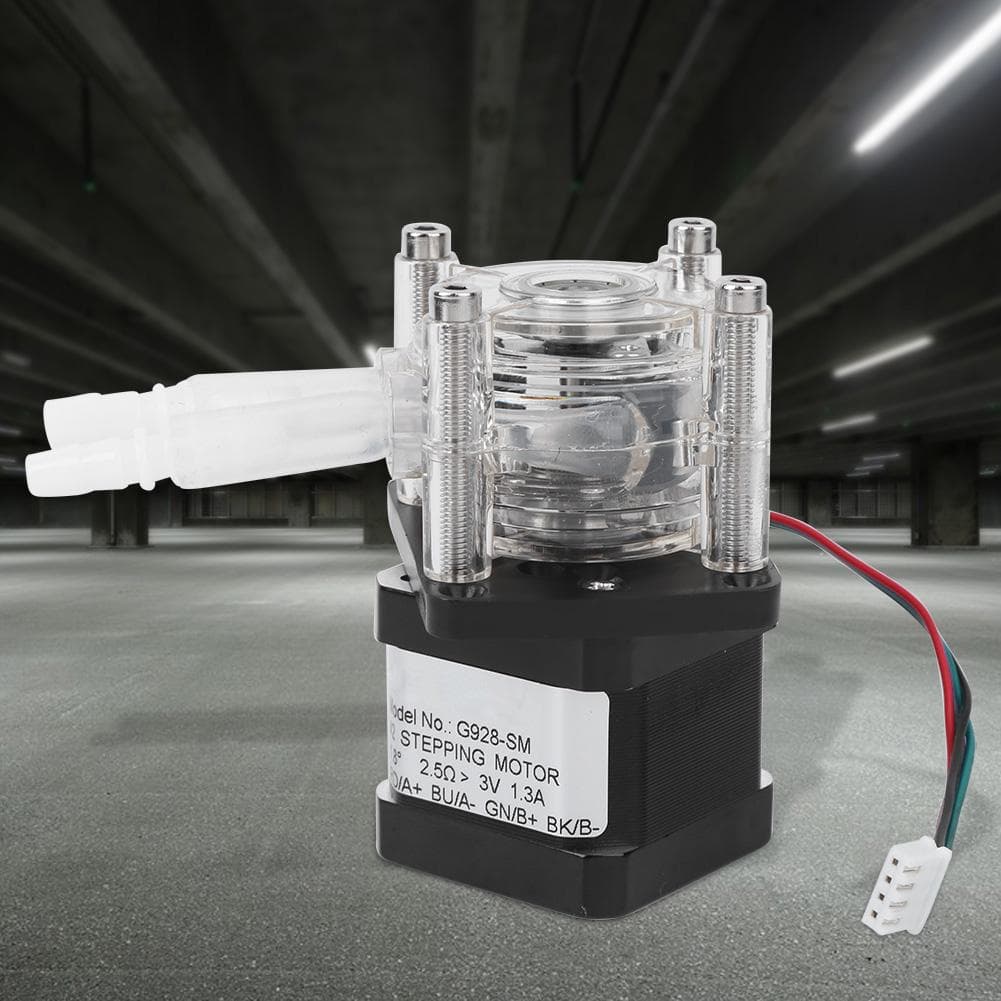

Quick Install Peristaltic Pump Large Flow Anti Corrosion Step Motor Peristaltic Pump

About this item

• Feature: 1. Pump cover hand twisted screw fixed, easy to remove and install, quickly replace the pump pipe. 2. Adopt the pump pipe guide groove to prevent the damage caused by the deviation of the pump pipe. 3. The wheel frame adopts ball bearings, quiet, long life. 4. Easy to replace hoses, easy to maintain. 5. Made of highquality materials, with high hardness, high strength and durability. Specification: Item Type: Step Motor Peristaltic Pump Model: G928SM (stepping motor flat type) Motor Type: 42 stepper motor Pump Head: Roller peristaltic pump Pump Cover: Transparent PC Number Of Rollers: 3 rotor rollers Roller Bracket: 304 stainless steel Installation Method: Tablet Flow Range: 0400ml Min (pump Tube: Inner Diameter 6.4mm outer Diameter 9.6mm) Standard Pump Tube: Food Grade Platinum Vulcanized Silicone Tube Pump Tube Size: Approx. 6.4 x 9.6mm 0.3 x 0.4in Pump Head Flow Per Turn: 1.5 ml, recommended speed is less than 400 rpm (short working time, sufficient heat dissipation, maximum speed can be designed to 500 rpm if necessary) Motor Power: 42 stepper motor about 30W. Package List: 1 x Peristaltic Pump 1 x Hex Wrench Pump cover hand twisted screw fixed, easy to remove and install, quickly replace the pump pipe. Adopt the pump pipe guide groove to prevent the damage caused by the deviation of the pump pipe. The wheel frame adopts ball bearings, quiet, long life. Easy to replace hoses, easy to maintain. Made of highquality materials, with high hardness, high strength and durability.
