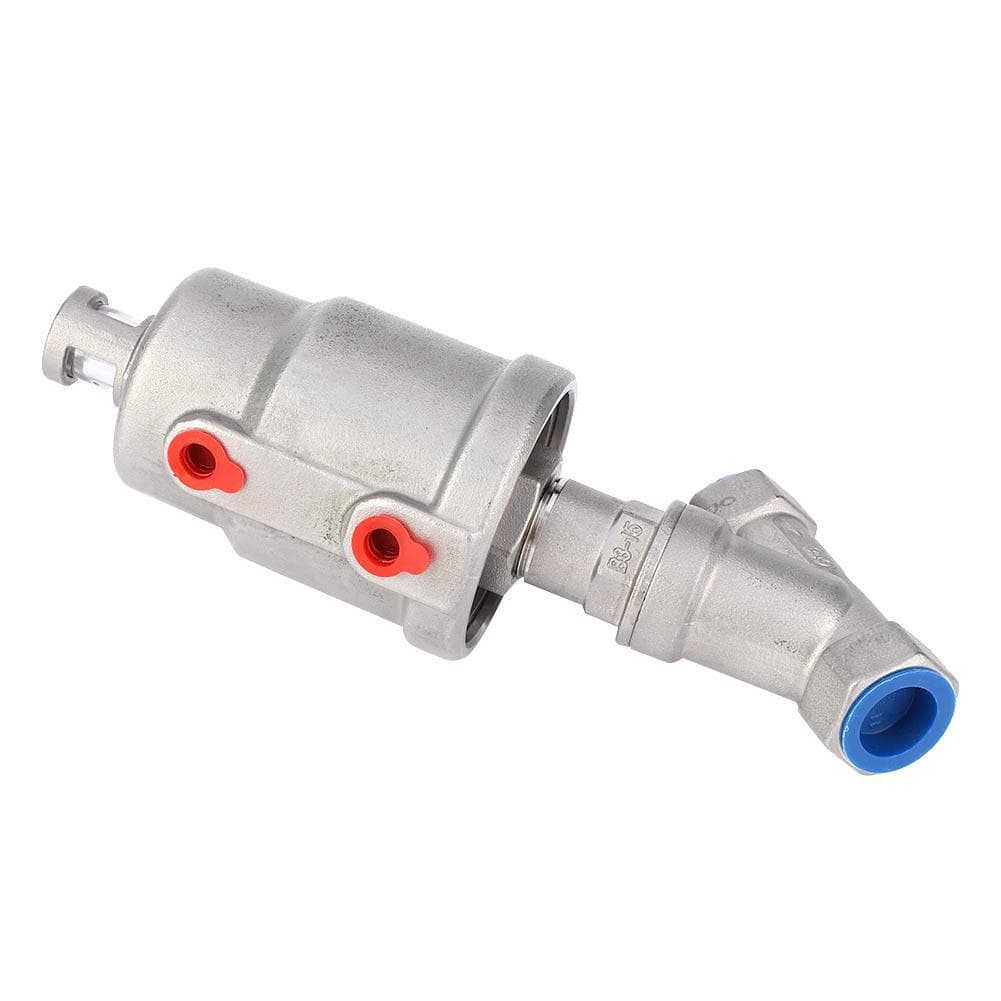

Angle Seat Valve Air Actuated Female Thread Stainless Steel Pneumatic Steam Valve12in DN15

About this item

• Feature: 1. Visual position indication, can connect limit switch or emergency manual devices 2. The gas head can be rotated 360 degrees, and even the limit switch can be rotated 360 degrees. Easy to install one to two limit switches 3. Lowwear piston construction for easy operation and low air consumption 4. No internal selflubricating, maintenancefree 5. Optional smaller control head when fluid flows in from above the valve stem 6. Builtin metal connector for easy connection 7. Stem PTEE sealing to prevent dirt from being introduced 8. No water hammer, water hammer (water impact) is absorbed when fluid flows from under the valve stem 9. The flowing rate is 30percent larger than the ordinary angle seat valve, the volume is smaller, and the fluid flowing is excellent. Specification: IteItem Type: Angle Seat ValveMaterial: Stainless steel Connection Form: Thread Pressure Environment: Atmospheric Pressure Use: Inverting Bore Diameter: 50mm Spool Sealing: PTFE Stem Sealing: PTFEFKM Piston Sealing: FKMNBR Applicable Medium: Water, Neutral Gas or Liquid, Alcohol, Oil, Organic Solvent, Weak Acid or Weak Alkaline Solution Medium Temperature: PTFE: 10 celsius ~ +180 celsius Ambient Temperature: 10 celsius ~ +60 celsius Viscosity: Up to 600mm2S Control Medium: AirNeutral Gas Control Pressure Range: 0.31MPa Widely Used: Beer and beverage, textile printing and dyeing, pharmaceutical, food processing, rubber machinery, organic or inorganic chemicals, high temperature sterilization, watersewage treatment. Package List: 1 x Angle Seat ValveVisual position indication, can connect limit switch or emergency manual devices The gas head can be rotated 360 degrees, and even the limit switch can be rotated 360 degrees. Easy to install one to two limit switches Lowwear piston construction for easy operation and low air consumption No internal selflubricating, maintenancefree Optional smaller control head when fluid flows in from above the valve stem
