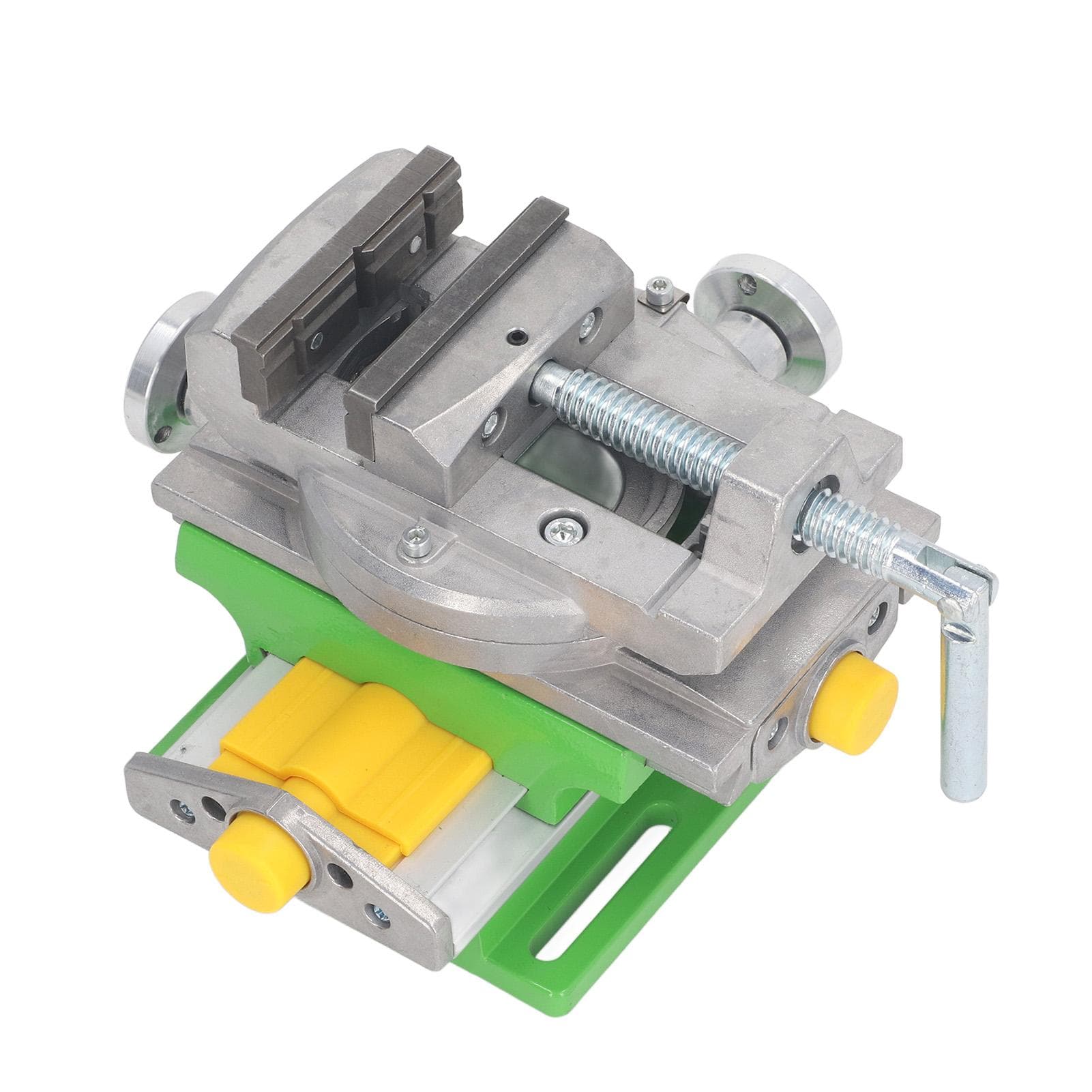

Cross Slide Drill Press Vise 0 to 77mm Clamping Range Multifunctional Mini XY Compound Vise for

About this item

• Feature: 1. Mini Cross Vise: Mini multifunctional cross slide drill press vise achieves high accuracy composite drilling and milling processing with desktop drilling and milling machines. 2. Powerful Clamping Force: The widened and heightened jaws of the drilling vise ensure stronger clamping force for more stable workpieces during processing. 3. Technical Data: XY Compound Vise has a X stroke 80mm, a Y stroke 67mm. Rotation Range from 0 to 90 degrees , maximum jaw opening 77mm, and 1 circle travel of graduated knob 1.5mm. 4. Smoothly Movement: The sturdy guide rod of the cross milling machine vise ensures smoothly, steady and high accuracy movement of the jaws without deviation. 5. Heavy Duty Structure: Crafted from heavy duty alloy steel, the workshop milling machine vise maintains high hardness and durability, while the hardened steel jaws on the vise add extra durability and lifespan. Specification: Item Type: Cross Slide Drill Press Vise Material: Alloy Steel Clamping Range: Approx. 0 to 77mm 0 to 3.03in X Stroke: Approx. 80mm 3.15in Y Stroke: Approx. 67mm 2.64in Rotation Range: 0 to 90 degrees One Round Trip of Scale Knob: Approx. 1.5mm 0.06in . Package List: 1 x Flat Nose Pliers 2 x Jaw Pads 2 x Handles 2 x Handle Screws 4 x Screws 4 x Nuts 3 x Special Wrench Note: Please follow the relevant operation and safety instructions of the desktop drilling machine or milling machine you are going to use.Mini Cross Vise: Mini multifunctional cross slide drill press vise achieves high accuracy composite drilling and milling processing with desktop drilling and milling machines. Powerful Clamping Force: The widened and heightened jaws of the drilling vise ensure stronger clamping force for more stable workpieces during processing. Technical Data: XY Compound Vise has a X stroke 80mm, a Y stroke 67mm. Rotation Range from 0 to 90 degrees , maximum jaw opening 77mm, and 1 circle travel of graduated knob 1.5mm. Smoothly Movement: The sturdy guide rod of the cross milling machine vise ensures smoothly, steady and high accuracy movement of the jaws without deviation. Heavy Duty Structure: Crafted from heavy duty alloy steel, the workshop milling machine vise maintains high hardness and durability, while the hardened steel jaws on the vise add extra durability and lifespan.
