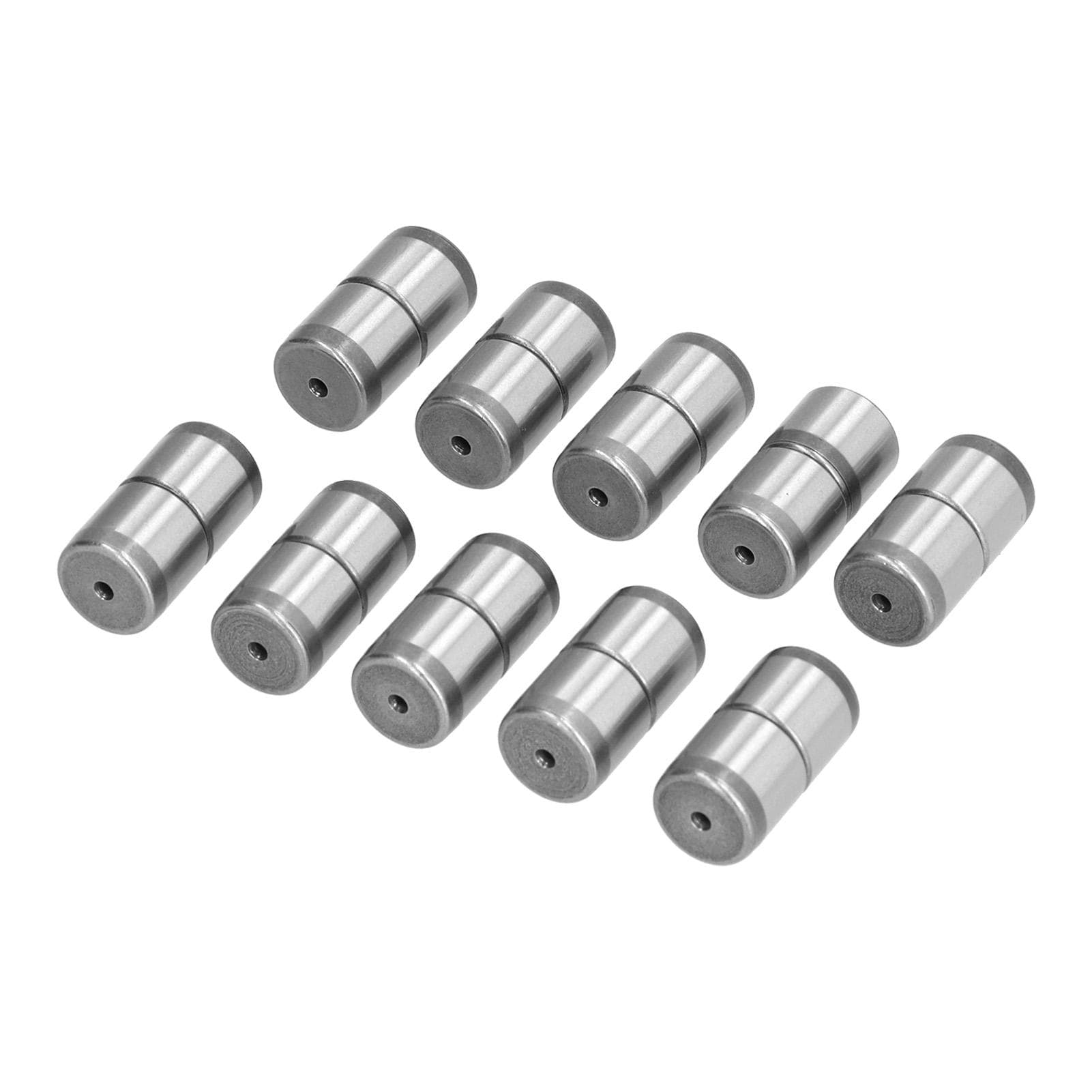

10 Sets Guide Pin Sleeve 20Cr High Accurate Positioning Mold Accessories 16x10x15x15

About this item

• Feature: 1. Using 20Cr material, wear resistance and corrosion resistance, has high toughness and strength. 2. Overall ultra?vacuum heat treatment, with balanced hardness, hardness HRC58?62, not easy to wear. 3. Single piece concentricity less than 0.005mm, column sleeve combination less than 0.03mm, has high accuracy. 4. With precise inner and outer diameter, has high matching degree, accurate positioning. 5. Mainly used to ensure that the mold moves with precise positioning and guide the mold stroke. Specification: Item Type: Guide Pin Sleeve Outer Diameter: Approx. 16mm 0.6in Inner Diameter: Approx. 10mm 0.4in Head Height: Approx. 15mm 0.6in Total Height: Approx. 30mm 1.2in Carburized Layer: Approx. 1mm 0.04in Material: 20Cr Surface Hardness: 5862 Concentricity: 0.005 Fit Clearance: 0.03mm. Package List: 10 x Guide Pin10 x Guide Sleeve Note: Do not contact water, it will rust.Using 20Cr material, wear resistance and corrosion resistance, has high toughness and strength. Overall ultra?vacuum heat treatment, with balanced hardness, hardness HRC58?62, not easy to wear. Single piece concentricity less than 0.005mm, column sleeve combination less than 0.03mm, has high accuracy. With precise inner and outer diameter, has high matching degree, accurate positioning. Mainly used to ensure that the mold moves with precise positioning and guide the mold stroke.
