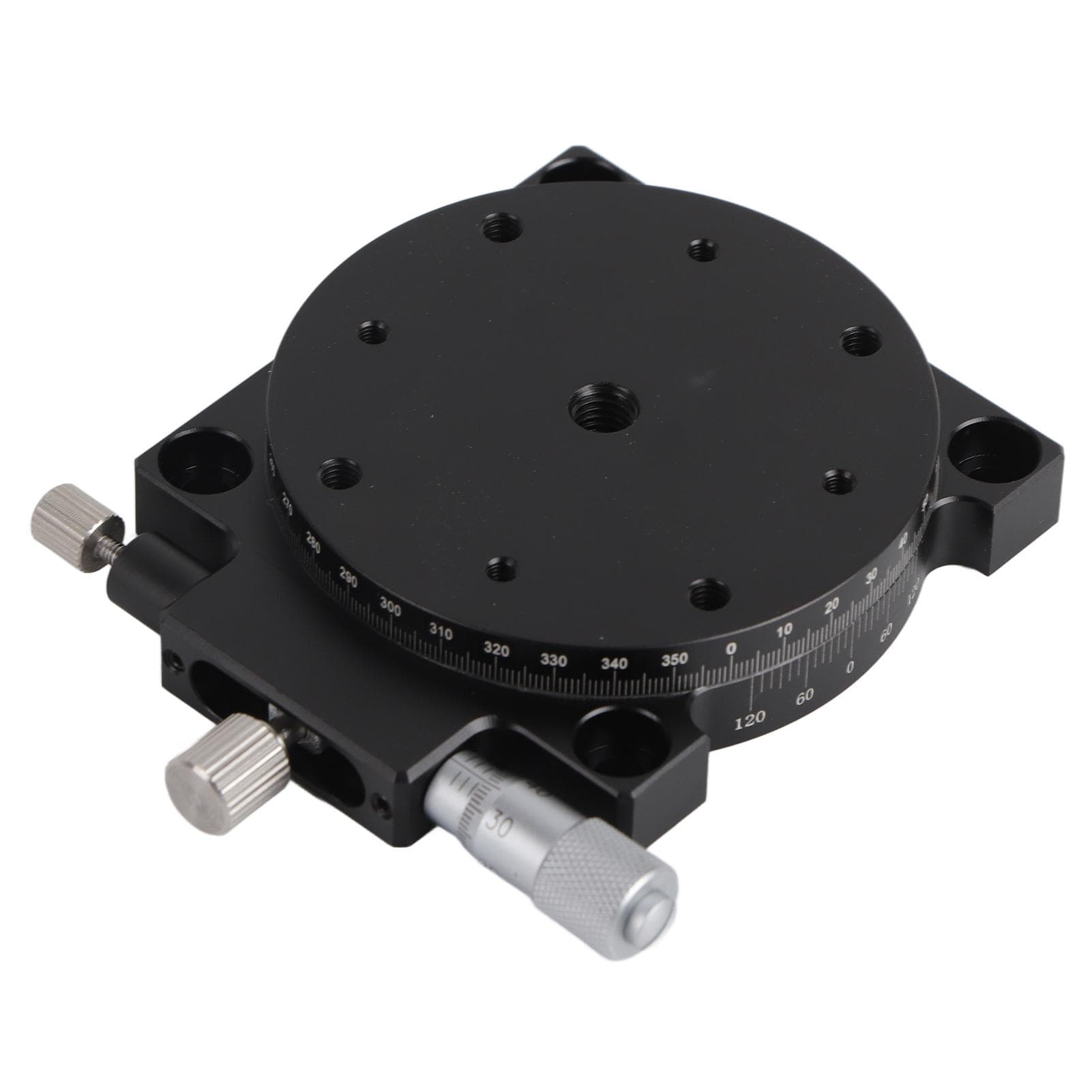

Manual Displacement Platform R Axes Rotating Linear Stage 360 degrees Sliding Table 60mm RS60?L

About this item

• Feature: 1. Using crossroller guide rails, possess high accuracy and stable movement. Can be fixed to the applicable position with customers accurate machinery or instruments 2. Light weight, the main material is aluminum alloy, suitable for other builtin equipment 3. The micrometer drive mode is ultraaccuracy, the rotating platform can accurately adjust the angle of the platform to the approximate position, and the thickness adjustment switch screw can finetune with the micrometer 4. The sliding table can be applied to various production machinery with high accuracy or medium load, inspection device, accurate positioning and quantitative movement 5. There are various types of sliding tables that can be matched with each other, such as single axes, dual axes, z axes, c axes, r axes, etc. 6. Diversified feed methods such as coarse and fine movement handlecentimeter probe, feed screw, rack and pinion, with scale to manage the movement value Specification: Item Type: Manual Displacement Platform Material: Aluminum alloy Table Diameter: Approx. 60mm 2.4in Movement Mode: RS rotation R axes Stroke: 360 Degree coarse adjustment Fine Adjustment: +5 degrees Load: 29.4N (3kgf) Minimum Scale: 2 Degrees Concentricity: 0.03mm Table Type: Manual sliding table Installation Method: 1. Use the countersunk holes on the base to install the platform. 2. Rotate the work surface to make the screw through holes and the countersunk head on the base concentric. 3.Then you can fix it with screws and repeat the left side, then the platform can use 4 countersunk holes fixed.. Package List: 1 x Manual Displacement Platform Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.Using crossroller guide rails, possess high accuracy and stable movement. Can be fixed to the applicable position with customers accurate machinery or instruments Light weight, the main material is aluminum alloy, suitable for other builtin equipment The micrometer drive mode is ultraaccuracy, the rotating platform can accurately adjust the angle of the platform to the approximate position, and the thickness adjustment switch screw can finetune with the micrometer The sliding table can be applied to various production machinery with high accuracy or medium load, inspection device, accurate positioning and quantitative movement There are various types of sliding tables that can be matched with each other, such as single axes, dual axes, z axes, c axes, r axes, etc.
