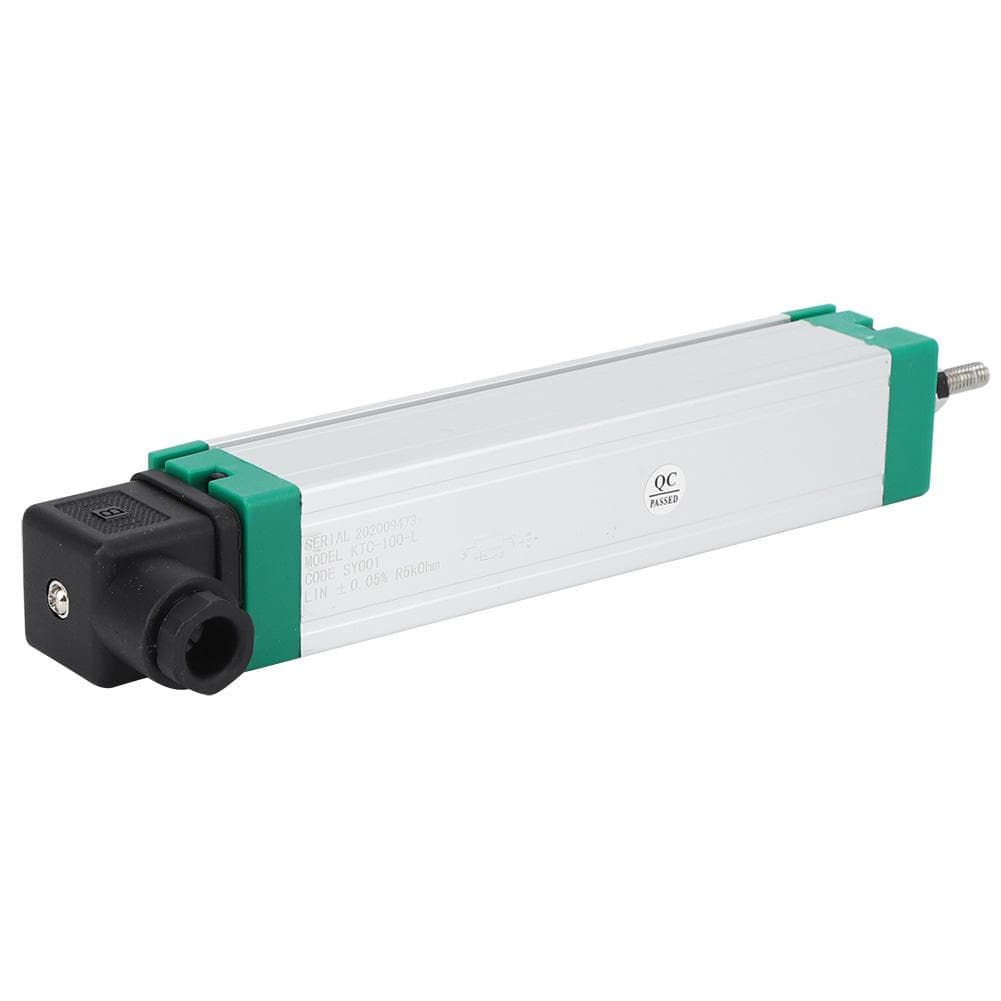

Injection Molding Machine Electronic Ruler Pull Rod Type Displacement Sensor TransducerKTC300

About this item

• Feature: 1. High compatibility, potentiometer principle, 0100percent given input voltage (changes with displacement). 2. Adopt plug type, convenient and practical, no noise output, smooth engineering rod. 3. Using for Hessman plug to resist oxidation, exquisite workmanship. 4. Reduce signal transmission loss, highdefinition sound quality, compatible with all devices. 5. The highest IP67 protection level, good protection effect. Specification: Item Type: Displacement Sensor Material: Stainless steel Electrical Stroke: Range + 3mm Resolution Resolution: Infinite uninterrupted analysis Repeatability: 0.01mm Normal Working Current Of Sliding Brush: less than 10microamps The Maximum Current Of The Sliding Brush When Causing The Fault: 10mA Insulation Resistance (500VDC, 50Hz): more than 10M Ohm Insulation Strength (500VAC, 50Hz): less than 100microamps Shell Length (A): Range + 78.5mm Mechanical Stroke (B): Range + 8mm Maximum Load Of Pull Rod: 50KG Work Force: Horizontal direction <10N Vertical direction less than 10N Vibration Resistance Standard: 5 ... 2000Hz, Amax = 0.8mm, amax = 20g Shock Resistance Standard: 50g, 11ms Operating Temperature Range: 60 ... + 150 celsius Life: > 100 * 10 ^ 6 times Maximum Operating Speed: 10m S, maximum operating acceleration 10m s2 Protection Level: Highest IP67 (DIN40500 IEC529). Package List: 1 x Displacement Sensor1 x Plug3 x Accessories4 x ScrewHigh compatibility, potentiometer principle, 0100percent given input voltage (changes with displacement). Adopt plug type, convenient and practical, no noise output, smooth engineering rod. Using for Hessman plug to resist oxidation, exquisite workmanship. Reduce signal transmission loss, highdefinition sound quality, compatible with all devices. The highest IP67 protection level, good protection effect.
