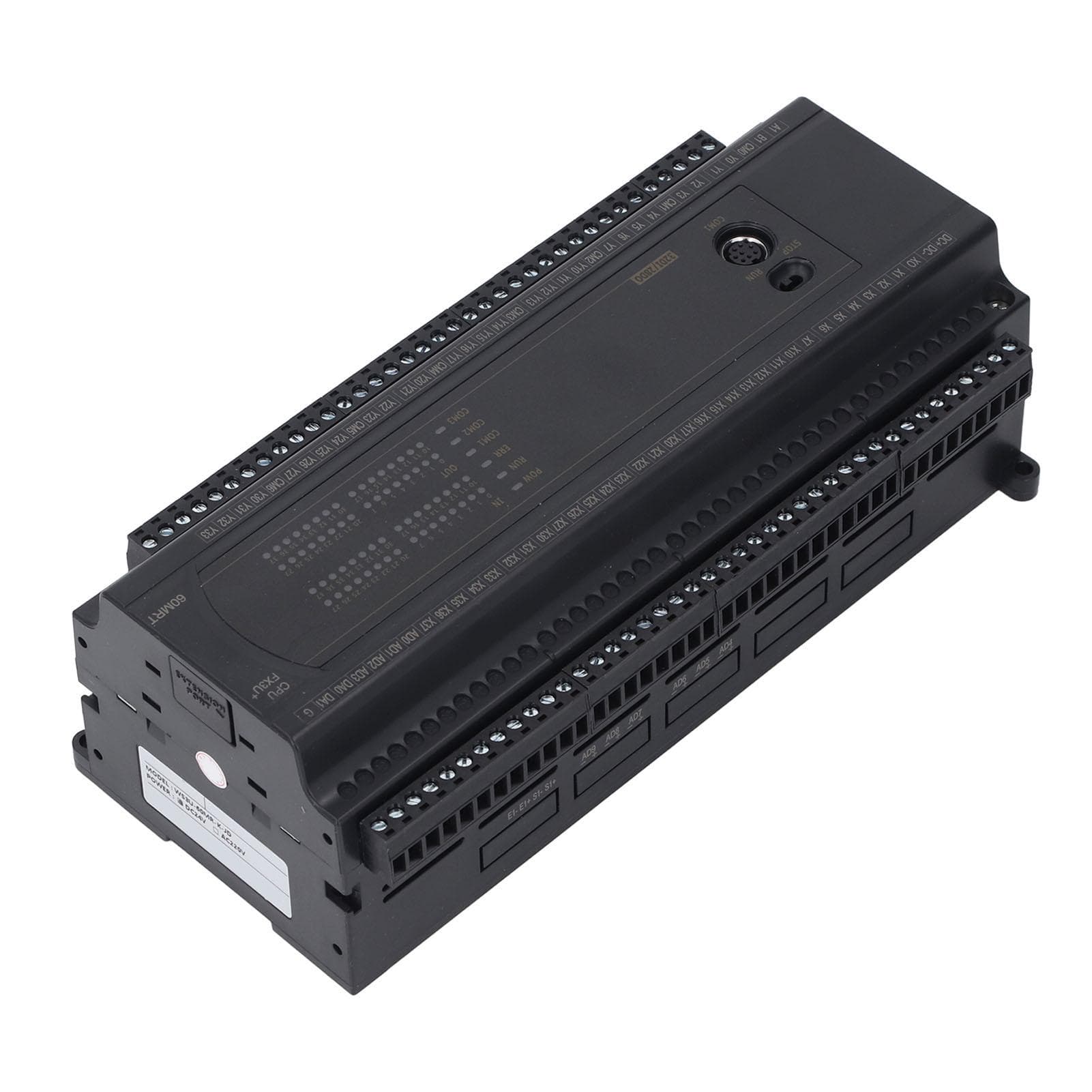

PLC Industrial Control Board 32 Input 28 Output 2100K High Speed Counting with Download Cable

About this item

• Feature: 1. Download and Comm: Supports 1 way RS232 and 1 RS485 comm port, can communicate with programming software simultaneously; Download speed compatible with 9.611.52Kbps, supports programming, downloading, debugging, and monitoring (does not support monitoring writing) 2. Touch Screen Comm: The three communicating ports can communicate with the touch screen simultaneously, for FX3U protocol selected and comm parameters of 19200, 7, E, 1, with strong compatibility 3. Power Supply: The PLC control board is powered by DC24V, and under the condition that the output relay is not turned on, the static current is 40MA, and the starting current needs to be above 1A 4. Analog Input Output: Default 4AD 010V input, 2DA 010V output; 6 ways high speed input, X0100K, X1X510K (X0 and X1 use as dual phase 100K); High speed output Y0Y5 200kHz Y67 100kHz 5. Enhanced Security: Enables super encryption function with keyword 12345678 to prevent program upload and password modification, clearing program upon password change to deter password cracking software Specification: Item Type: PLC Control Board Material: ABS Size: Approx. 225 x 110 x 78mm 8.9 x 4.3 x 3.1in Download Speed: 9.6115.2Kb Memory Capacity: 32000 Steps Input Points: 32 Output Points: 28 Output Type: Relay Output Current: 3A Load: 24V220V High Speed Count: 2100K Pulse Output: None Analog Input: 4AD 010V Analog Output: 2DA 010V 485: 1 Way 232: 1 Way Power Supply: DC24V. Package List: 1 x PLC Control Board 1 x Download Cable (3 Meter)Download and Comm: Supports 1 way RS232 and 1 RS485 comm port, can communicate with programming software simultaneously; Download speed compatible with 9.611.52Kbps, supports programming, downloading, debugging, and monitoring (does not support monitori Touch Screen Comm: The three communicating ports can communicate with the touch screen simultaneously, for FX3U protocol selected and comm parameters of 19200, 7, E, 1, with strong compatibility Power Supply: The PLC control board is powered by DC24V, and under the condition that the output relay is not turned on, the static current is 40MA, and the starting current needs to be above 1A Analog Input Output: Default 4AD 010V input, 2DA 010V output; 6 ways high speed input, X0100K, X1X510K (X0 and X1 use as dual phase 100K); High speed output Y0Y5 200kHz Y67 100kHz Enhanced Security: Enables super encryption function with keyword 12345678 to prevent program upload and password modification, clearing program upon password change to deter password cracking software
