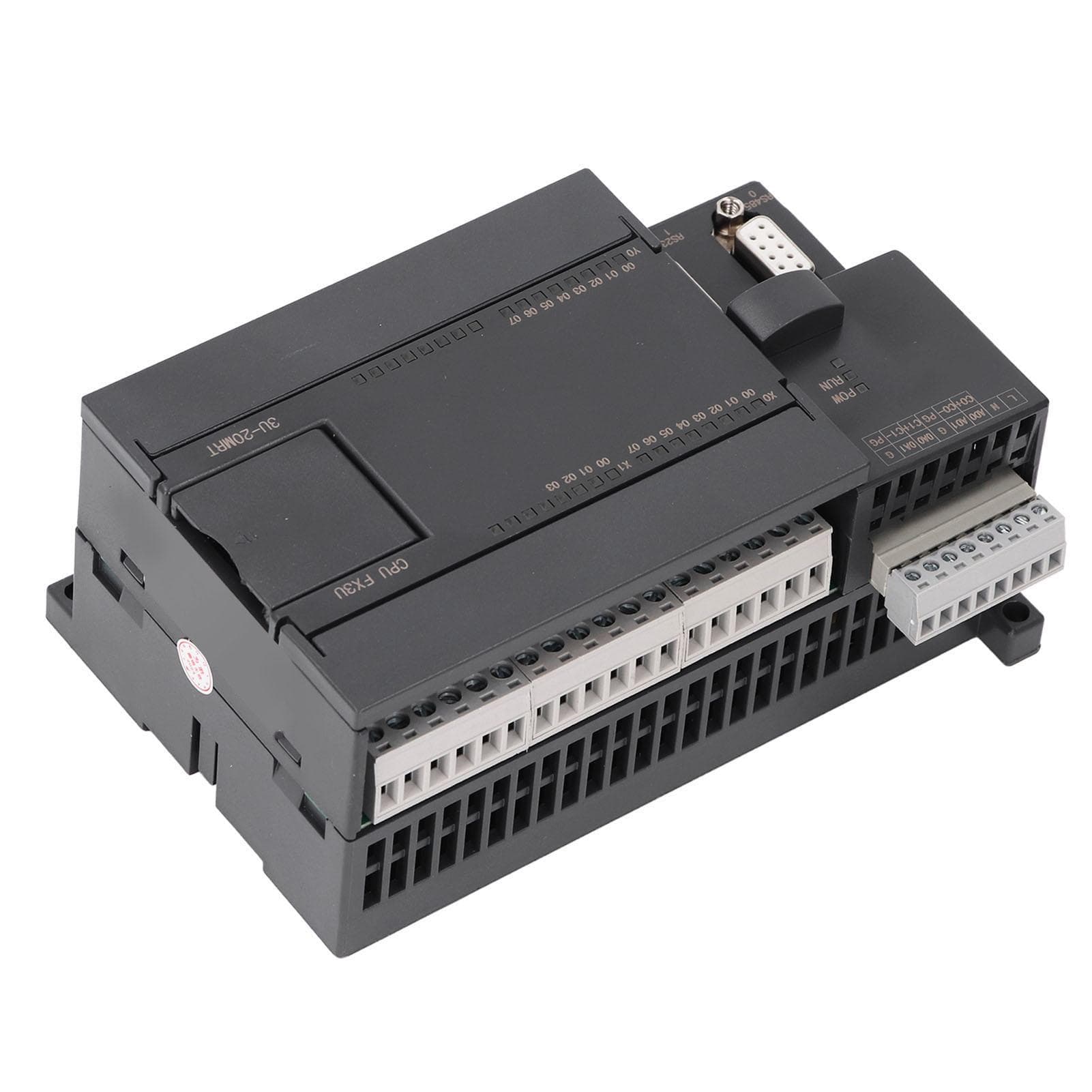

DC24V PLC Control Board Relay Output Programmable Logic Controller 12 In 8 Out 2 Way 60K Counting

About this item

• Feature: 1. CPU and Relay Output: This industrial control board adopts a 32 bit chip processor, which has fast computing speed and large storage space; Using relay output, supporting 12 inputs and 8 outputs 2. Download Comm: The download speed reaches 38.4Kbps (can also be changed to 9.6k under non normal cases); Supports for GX Developer or for GX Works2 programming, downloading, debugging, and monitoring (not support monitoring writing) 3. Power Supply: The PLC control board is powered by DC24V. When the output relay is not turned on, the static current is 30mA, and an additional 10MA current is added for each circuit that is turned on 4. Load: The PLC control board uses 5A current relay, which should be less than 3A for long term use; The transistor is driven by transistor, with an output current of 1A, does not exceed 500MA for long use 5. Analog Input Output: This PLC industrial control board comes with 6 way analog input, 2 way PT100 temperature measurement, 3 way current 0?20mA, and 2 way analog output (0?10V voltage) 6. High Speed Input Output: Comes with 2 way 60K high speed counting, supports 3 way AB phase input, and supports up to 8 ways 100K pulse output; Equipped with clock, 232 and 485 ports Specification: Item Type: PLC Control Board Material: ABS Size: Approx. 140 x 100 x 63mm 5.5 x 3.9 x 2.5in Download Speed: 38.4Kb Memory Capacity: 8000 Input Points: 12 Output Points: 8 Output Type: Relay Output Current: 5A Load: 24V High Speed Count: 2 Way 60K Pulse Output: None Analog Input Output: 2 Way PT100 Temperature Measurement Clock: Yes. Package List: 1 x PLC Control BoardCPU and Relay Output: This industrial control board adopts a 32 bit chip processor, which has fast computing speed and large storage space; Using relay output, supporting 12 inputs and 8 outputs Download Comm: The download speed reaches 38.4Kbps (can also be changed to 9.6k under non normal cases); Supports for GX Developer or for GX Works2 programming, downloading, debugging, and monitoring (not support monitoring writing) Power Supply: The PLC control board is powered by DC24V. When the output relay is not turned on, the static current is 30mA, and an additional 10MA current is added for each circuit that is turned on Load: The PLC control board uses 5A current relay, which should be less than 3A for long term use; The transistor is driven by transistor, with an output current of 1A, does not exceed 500MA for long use Analog Input Output: This PLC industrial control board comes with 6 way analog input, 2 way PT100 temperature measurement, 3 way current 0?20mA, and 2 way analog output (0?10V voltage)
