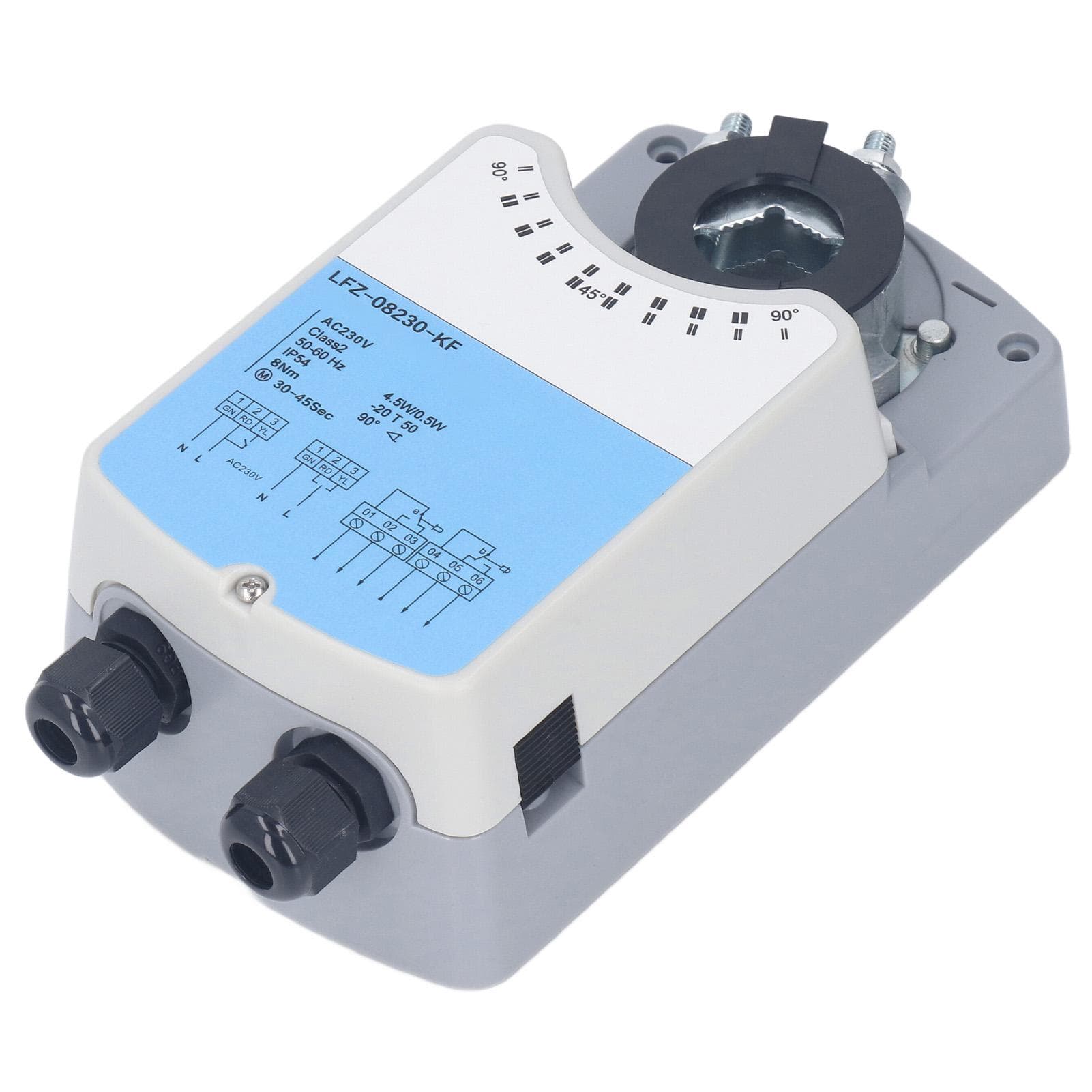

Electric Damper Actuator Angle Adjustable Electric Valve Actuator for Water Wind System AC230V

About this item

• Feature: 1. EASY INSTALLATION: Our electric damper actuator is user friendly and easy to install. Simply connect the damper shaft with the universal clamp and secure it with the anti rotation installation bar to prevent the actuator from rotating. 2. ADJUSTABLE ROTATION ANGLE: The rotation angle can be easily adjusted through the mechanical limit switch, allowing for accurate control. 3. MANUAL OPERATION OPTION: The actuator can be manually operated using a button to unlock or lock the gear transmission device. 4. POWERFUL AND VERSATILE: The LFZ series electric damper driver is powered by imported DC brushless motor, providing a torsion range of 2Nm to 40Nm. It is suitable for angle stroke control in air and water systems, offering signal control options of 0(2)?10V voltage or 0(4)?20mA current with interchangeable feedback signals. 5. WIDE APPLICATION: Our electric damper actuator can be directly applied to control the angle of ventilation systems and water systems. It is compatible with voltage and current signals, providing efficient and reliable control in various applications. Specification: Item Type: Electric Damper Actuator Material: Aluminum Alloy Rated Voltage: AC230V 50 60Hz Power Consumption: Operating 4.5W, Standby 0.5W Wire Size: 0.5mm2 Terminal Size: Up to 2mm2 Torsion: 8Nm Suitable for Damper Area: 1.2 m2 Rotation Direction: Manual adjustment Rotation Angle: Maximum 90 degrees Operating Time: 30S to 45S Noise Level: 45dB Protection Grade: IP54 Operating Temperature: 20 celsius to +50 celsius Storage Temperature: 30 celsius to +80 celsius Maximum Ambient Humidity: 95percent RH, non condensing. Package List: 1 x Electric Valve Actuator 1 x Mounting Bracket2 x ScrewsEASY INSTALLATION: Our electric damper actuator is user friendly and easy to install. Simply connect the damper shaft with the universal clamp and secure it with the anti rotation installation bar to prevent the actuator from rotating. ADJUSTABLE ROTATION ANGLE: The rotation angle can be easily adjusted through the mechanical limit switch, allowing for accurate control. MANUAL OPERATION OPTION: The actuator can be manually operated using a button to unlock or lock the gear transmission device. POWERFUL AND VERSATILE: The LFZ series electric damper driver is powered by imported DC brushless motor, providing a torsion range of 2Nm to 40Nm. It is suitable for angle stroke control in air and water systems, offering signal control options of 0(2)?1 WIDE APPLICATION: Our electric damper actuator can be directly applied to control the angle of ventilation systems and water systems. It is compatible with voltage and current signals, providing efficient and reliable control in various applications.
