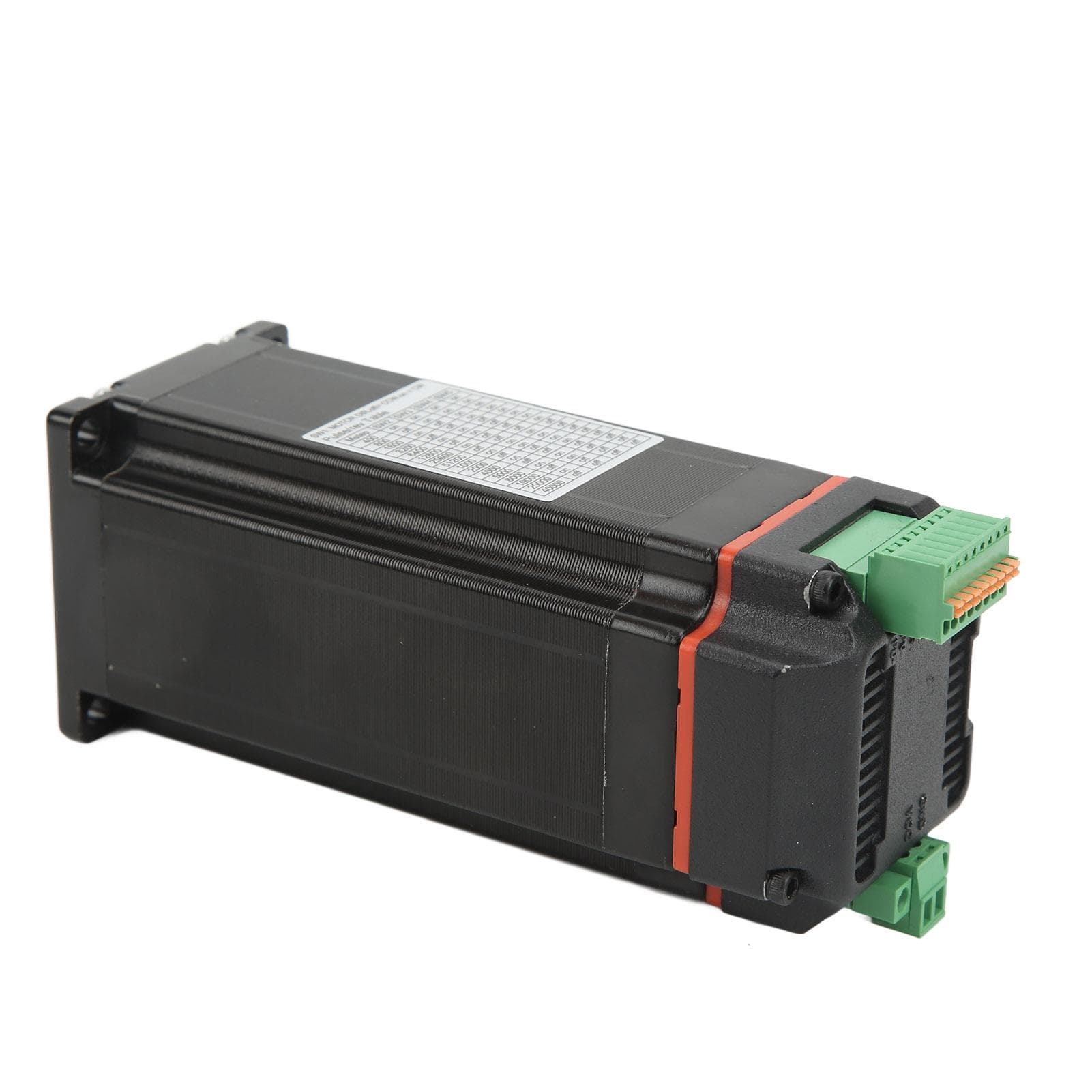

Closed Loop Motor Low Heat Low Noise Operation Integrated Servo Motor with 3D Printer Drive 2.5Nm

About this item

• Feature: 1. SPACE SAVING: The integration of motor and driver saves complicated wiring and increases the installation space of motor. 2. LOW HEAT: Adjust the current in real time according to the actual load, reduce the heating, close to 9percent of the torsion output capacity, play a greater energy conversion in a compact space, save energy and improve efficiency. 3. LOW NOISE: This motor has good resistance to the low frequency resonance that plagues the traditional stepping motor, which features quieter operation. 4. QUICK RESPONSE: The position response output is synchronized with the input command signal in almost real time. Servo control technology provides high torsion output for high speed dynamic response of the system. 5. ALUMINUM ALLOY MATERIAL: Made of premium aluminum alloy material, the motor has good heat dissipation, and it is lightweight, safe and reliable for long term use. Specification: Item Type: Closed Loop Motor Material: Aluminum Alloy Torsion: 2.5Nm Shaft Diameter: Approx. 8mm 0.3in Drive Parameters: Input Voltage: Min: 20VDC Typical: 24VDC Maximum: 48VDC Output Current: Min: 0A Typical: 3A Maximum: 4.2A Stepping Signal Frequency: Min: 0Hz Maximum: 200KHz Control Signal Input Current: Min: 7mA Typical: 10mA Maximum: 16mA Overvoltage Protection: 55VDC Input Signal Voltage: 5VDC Insulation Resistance: Min. 100M Ohm . Package List: 1 x Closed Loop MotorSPACE SAVING: The integration of motor and driver saves complicated wiring and increases the installation space of motor. LOW HEAT: Adjust the current in real time according to the actual load, reduce the heating, close to 9percent of the torsion output capacity, play a greater energy conversion in a compact space, save energy and improve efficiency. LOW NOISE: This motor has good resistance to the low frequency resonance that plagues the traditional stepping motor, which features quieter operation. QUICK RESPONSE: The position response output is synchronized with the input command signal in almost real time. Servo control technology provides high torsion output for high speed dynamic response of the system. ALUMINUM ALLOY MATERIAL: Made of premium aluminum alloy material, the motor has good heat dissipation, and it is lightweight, safe and reliable for long term use.
