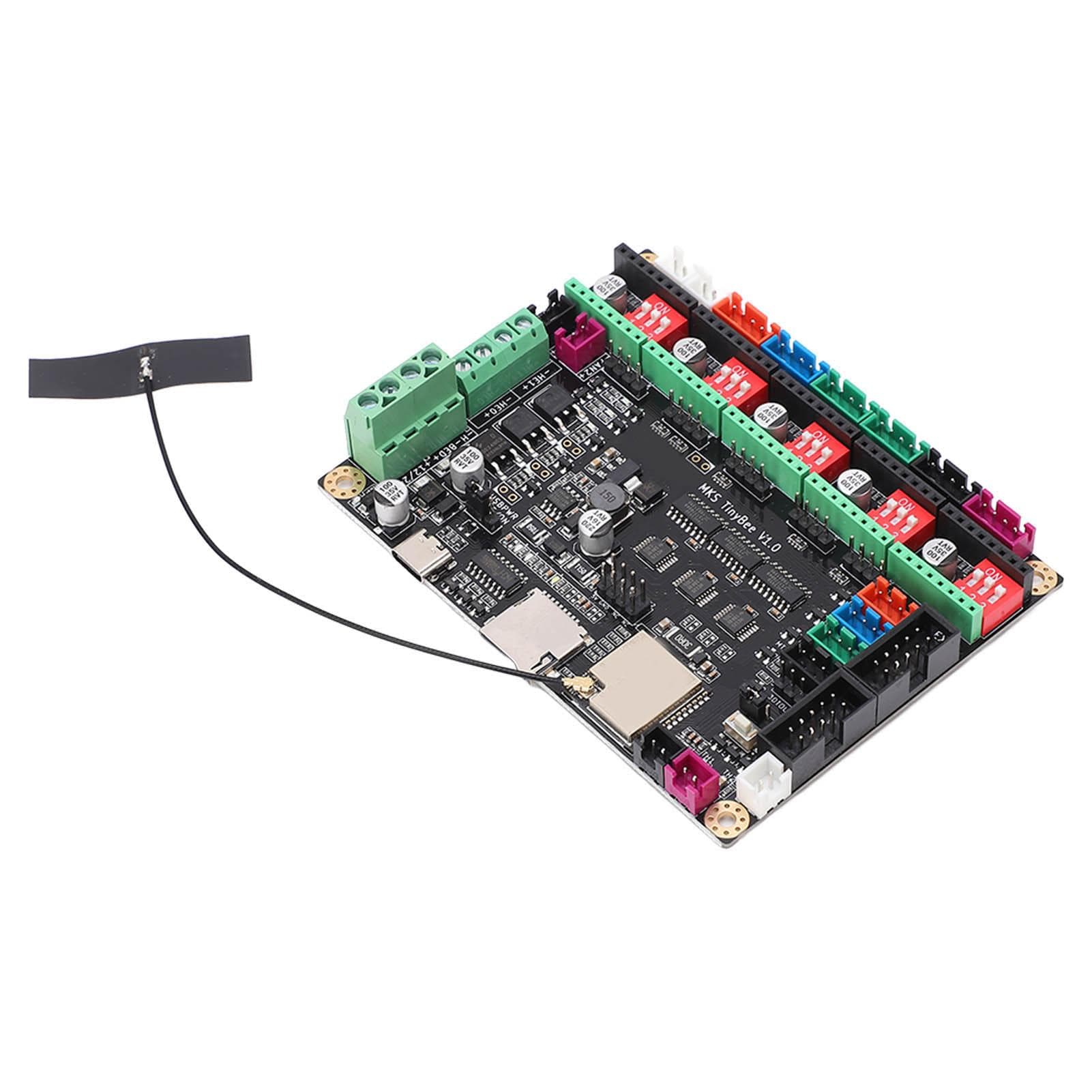

3D Printer Motherboard PCB 520K Memory USB Upload 3D Printer Control Board DC12?24V

About this item

• Feature: 1. Lightweight Texture: The texture of this 3D printer motherboard is very light, easy to carry, and the installation is also very easy and fast, friendly to novices. 2. Web Control: After the firmware update can be downloaded directly using USB, you can connect WIFI for web control printing. 3. Integrated Module: Our 3D printer motherboard is a 3D printing control board with integrated ESP32 WIFI module, compact and easy to operate. 4. PCB Material: This 3D printer motherboard is made of PCB material with excellent craftsmanship, which can be used for a long time under normal operation. 5. Applicable Scenarios: Support for Marlin 2.0 firmware, in addition to supporting the ordinary for LCD2004, 12864, but also supports for MKS MINI12864 V3, and, can use the for MKS TFT serial screen, for MKS H43. Specification: Item Type: 3D Printer Motherboard Material: PCB Microcontroller: ESP32 WROOM 32U Microcontroller Frequency: 240MHz Flash Memory: 8192K Memory: 520K Power Input: DC1224V <20A Heater: 2 heater end, 1 heater bed Temperature ADC: 3 NTC100K:TH1,TB,TH2 (need jumper to select) PMW Fan: 2 way Motor Interface: 5 axes, 6 motor interface (dual Z axes parallel) Stepper Drive Mode: STEP or DIR mode Drive Signal: Support external high current drive Micro Step Setting: Dip switch LCD Interface: Support for LCD2004 or 12864,for MKS MINI12864V3 Serial Port: Reserved for MKS TFT series screen USART2 End Point: X,Y,Z,MT DET 3D Touch: Support Power Protection: Support power reverse protection and power spike protection Motor Counter Electromotive Force: Can be absorbed by phase sequence resistor to defend stepper driver Firmware: for Marlin 2.0.x Firmware Update Method: USB upload. Package List: 1 x 3D Printer Motherboard1 x USB Cable Note: Pay attention to the specification of the correct operationLightweight Texture: The texture of this 3D printer motherboard is very light, easy to carry, and the installation is also very easy and fast, friendly to novices. Web Control: After the firmware update can be downloaded directly using USB, you can connect WIFI for web control printing. Integrated Module: Our 3D printer motherboard is a 3D printing control board with integrated ESP32 WIFI module, compact and easy to operate. PCB Material: This 3D printer motherboard is made of PCB material with excellent craftsmanship, which can be used for a long time under normal operation. Applicable Scenarios: Support for Marlin 2.0 firmware, in addition to supporting the ordinary for LCD2004, 12864, but also supports for MKS MINI12864 V3, and, can use the for MKS TFT serial screen, for MKS H43.
