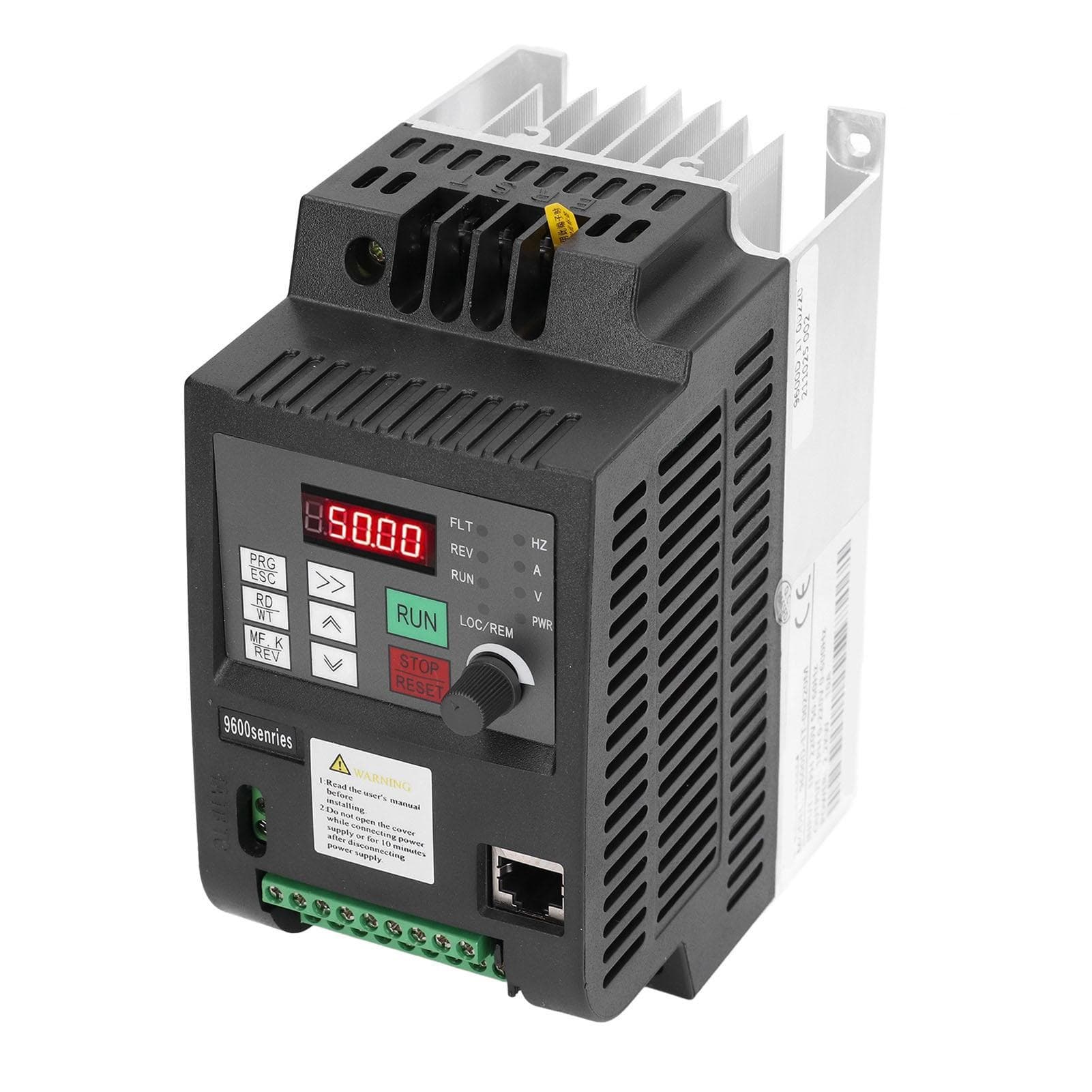

NFLIXIN Variable Frequency Drive Single Phase 220V 2.2kw 1 in 1 Out Motor Speed Controller

About this item

• Feature: 1. Frequency Inverter: This inverter is a single phase 220v inverter, 2.2kw single input single output, the selection is recommended to be a larger gear. 2. Practical Use: Up to 16 speeds can be achieved through a combination of simple PLC functions or X terminal status. 3. Better Control: Can easily identify the closed loop control of the process control, can also automatically maintain a constant output voltage when the power supply voltage changes. 4. Safe Working: During operating, the current and voltage are automatically limited to avoid frequent tripping due to over voltage or over current, and automatically limit the torsion and prevent frequent over current trips during operating. 5. Wide Utility: Can achieve the control of asynchronous motor and synchronous motor through high performance current vector control technology. 6. Dependable Running: The load feedback energy can compensate for the voltage drop, so that the AC drive can continue to run for a short time. 7. Small Error: Helps to avoid frequent over current AC stick errors, and five groups of virtual XDOS can realize simple logic control, plus, the time range: 0.06500.0 minutes. 8. High Efficiency: 4 motors can be switched through 4 sets of motor parameters, supporting communication via for PROFIBUSDP, for CANLINK and for CANopen. Specification: Item Type: Variable Frequency Drive Input and Output Features: Input Voltage Range: Single phase 220V+15percent . Input Frequency Range: 50~60Hz. Output Voltage Range: Single phase 0~220V+15percent . Output Frequency Range: 0~600Hz. Item Specification Standard Function Maximum Frequency ?Vector control: 0600Hz ?VF control: 0600Hz Carrier Frequency 0.516 kHz. The carrier frequency is automatically adjusted according to the load characteristics. Input Frequency Resolution Digital setting: 0.01Hz Analog setting: maximum frequency x 0.025percent Control Mode ?Sensorless flux vector control (SFVC) ?Voltagefrequency (VF) control Starting Torsion Type G: 0.5Hz 150percent (SFVC); Speed Range 1:100 (SFVC) Speed Stability Accuracy +0.5percent (SFVC) Torsion Control Accuracy +5percent Standard Function Overload Capacity Type G: 150percent of rated current for 60s, 180percent of rated current for 3 seconds Torsion Boost ?Fixed lifting ?After adjustment, boost 0.1percent 30.0percent VF Curve ?Straight line VF curve ?Multi point VF curve ?NPower VF curve (1.2 power, 1.4 power, 1.6 power, 1.8 power, square) VF Separation Two Types: complete separation; semi separation Slope Mode ?Straight slope ?S curve slope Four sets of acceleration or deceleration time, the range is 0.06500.0 Brake DC DC braking frequency: 0.00Hz to maximum frequency Braking time: 0.036.0s Braking current value: 0.0percent 100.0percent Jogging Control Slow frequency range: 0.0050.00Hz JOG acceleration or deceleration time: 0.06500.0s Multiple Preset Speeds Onboard Up to 16 speeds can be achieved through a combination of simple PLC functions or X terminal status. Onboard PID It is easy to identify the closed loop control of the process control Automatic Voltage Regulation (AVR) It can automatically maintain a constant output voltage when the power supply voltage changes Overvoltage or Overcurrent Booth Control During operating, the current and voltage are automatically limited to avoid frequent tripping due to overvoltage or overcurrent Torsion Limit and Control It can automatically limit the torsion and prevent frequent overcurrent trips during operating . Package List: 1 x Variable Frequency Drive1 x User Manual Note: Type Selection Instructions: 1. Please read the product instructions carefully, choose the type according to the function and power you need, and avoid the damage caused by incorrect wiring.2. Single phase motor selection must be enlarged by a level selection, 0.75 KW single phase motor, please choose 1.5 KW inverter3. Speed regulation of 3 phase AC motors with 6 or more stages. Please buy a converter with higher power than the motor. 4. If you don t know how to choose the style, you can also contact us to give you some suggestions. Additional Note:A. If you want detailed version of product manual, you can contact us to send it to you for free. Frequency Inverter: This inverter is a single phase 220v inverter, 2.2kw single input single output, the selection is recommended to be a larger gear. Practical Use: Up to 16 speeds can be achieved through a combination of simple PLC functions or X terminal status. Better Control: Can easily identify the closed loop control of the process control, can also automatically maintain a constant output voltage when the power supply voltage changes. Safe Working: During operating, the current and voltage are automatically limited to avoid frequent tripping due to over voltage or over current, and automatically limit the torsion and prevent frequent over current trips during operating. Wide Utility: Can achieve the control of asynchronous motor and synchronous motor through high performance current vector control technology.
