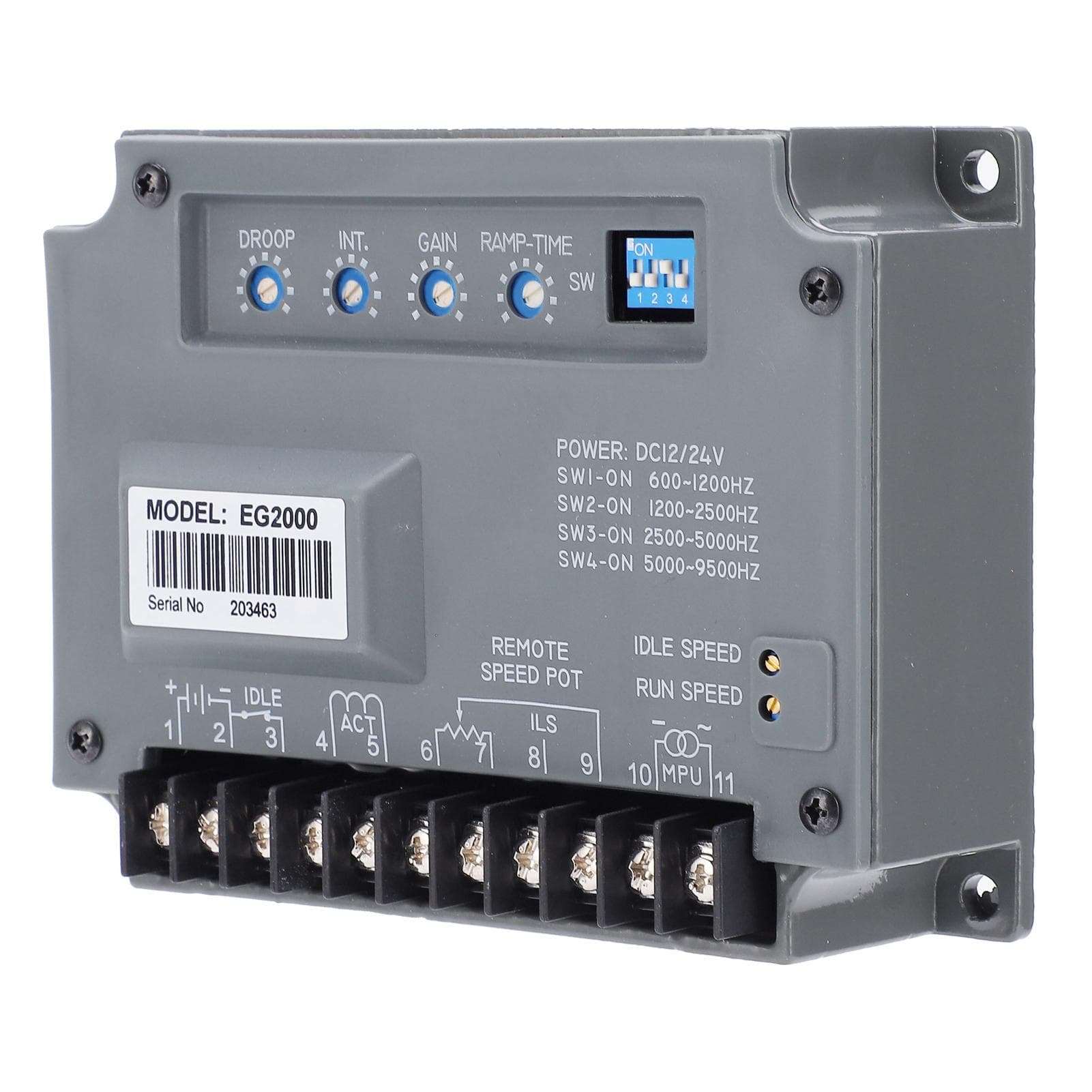

Engine Speed Controller Electronic Governor Diesel Generator Control Regulator EG2000 1224VDC

About this item

• Feature: 1. The speed regulator has a wide frequency range and a maximum current output of 15A. 2. Can be applied to steam, diesel and natural gas engines with high sensitivity and small speed changes. 3. Made of highquality materials, moistureproof, antivibration, and good oxidation resistance. 4. For instant load changes, it can control the engine speed with a fast and accurate response. 5. With engine idle speed setting function, and equipped with control terminals for remote control. Specification: Item Type: Engine Speed Controller Working Voltage: 1224VDC Output Current: Minimum 0.5A maximum 15A Operating Frequency Range: 6009500Hz (MPU speed sensor signal) Idle Frequency Range: 3085percent of operating frequency (adjustable) Sensitivity: When the load is stable, the speed variation range is less than +0.25percent Temperature Difference Stability: No more than +0.5percent between 40+85 celsius Remote Speed Adjustment Range (2 Groups): About +5percent adjustment range when using 5K Ohm potentiometer Speed Rise Time: 320 seconds (adjustable) Operating Temperature: 40+85 celsius Storage Temperature: 40+85 celsius Relative Humidity: 95percent or less Vibration: 3G at 100Hz2KHz Parameter Adjustment Potentiometer: DROOP: Adjust the rate of speed drop GAIN: Adjust ACT output gain loop INT.: Integral loop stability adjustment RAMPTIME: Speed rise time SPEED: Speed adjustment IDLE: Idle speed with line DIP Switch Description: SW1: ON 6001200 Hz SW2: ON 12002500 Hz SW3: ON 25005000 Hz SW4: ON 50009500 Hz. Package List: 1 x Engine Speed Controller1 x User Manual The speed regulator has a wide frequency range and a maximum current output of 15A. Can be applied to steam, diesel and natural gas engines with high sensitivity and small speed changes. Made of highquality materials, moistureproof, antivibration, and good oxidation resistance. For instant load changes, it can control the engine speed with a fast and accurate response. With engine idle speed setting function, and equipped with control terminals for remote control.
