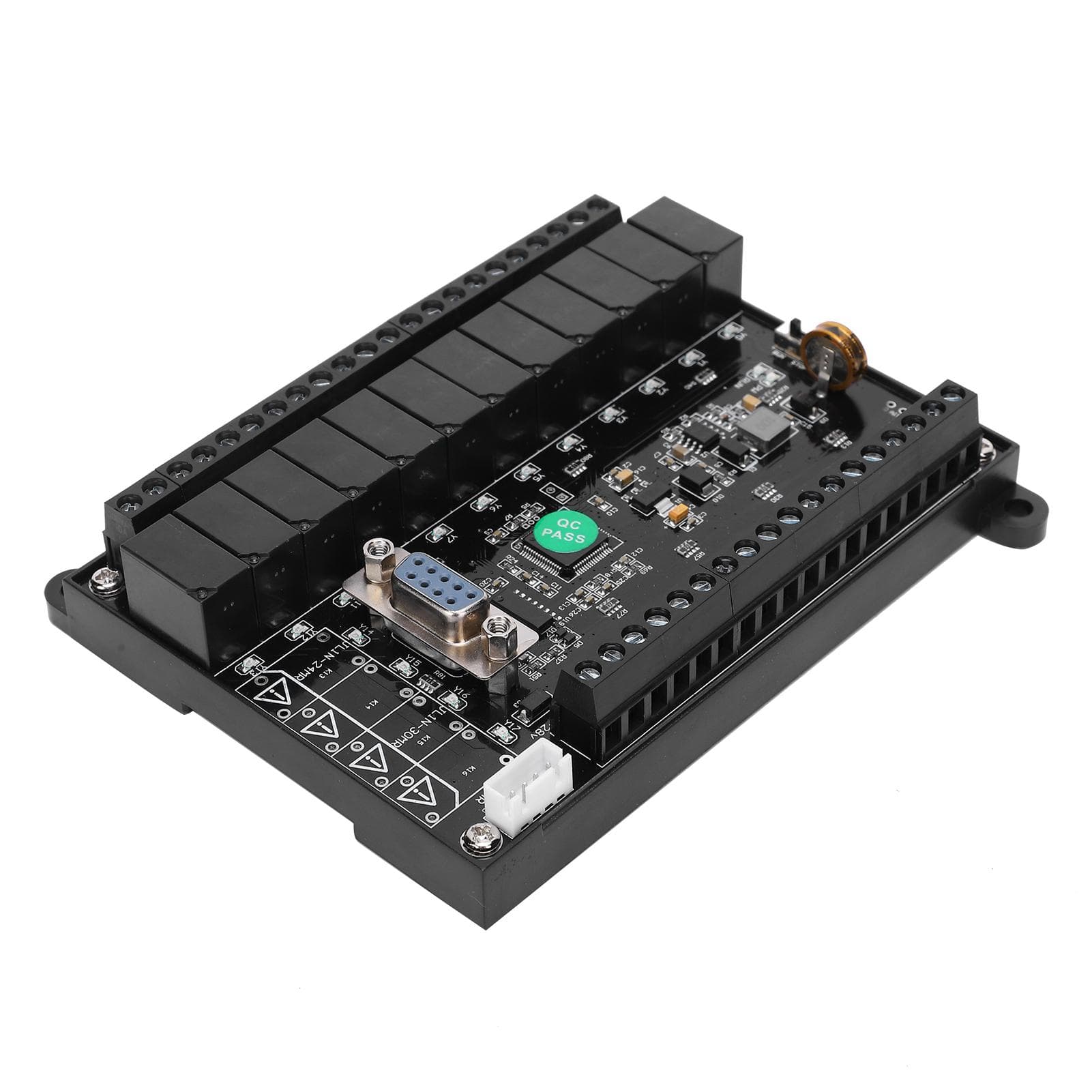

PLC Control Board Programmable Controller Delay Module Relay with Analog FX1N?24MR DC24V

About this item

• Feature: 1. The function is compatible with FX1N series, input high?speed pulse C235, C251, Y0 can send 10K pulse 2. Power circuit has undergone multiple anti?interference designs, without fear of various harsh electromagnetic interference working environments 3. Can be used flexibly in various industrial automatic control occasion, such as metallurgy, chemical industry, plastics, textile, food, packaging, printing, building materials, woodworking, central air conditioning, environmental protection equipment 4. Suitable for industrial control equipment for production machinery, industrial assembly lines, and various machine tools in industries such as single process control devices 5. Relay delay module come with small size, stable structure and excellent performance Specification: Item Type: PLC Control Board Material: Plastic Model: FX1N24MR Working Voltage: DC24 (V) Output Frequency: 10 (kHz) Maximum Memory Capacity: 2000 Steps Analog input and output: 1ADThe downloading program is slow. The length of the downloading program is 8000 steps by default. Actually, the program written by most customers will not exceed 2000 steps. Therefore, you can set it in the programming software to increase the download speed by 4 times. The Setting Method is As Follows: After clicking the + sign in front of the parameter in the program data list, the PLC parameter will appear, and then doubleclick the PLC parameter and the parameter setting interface will appear. In the parameter setting interface, set the memory capacity from 8000 to 2000 The programming line USB to TTL and USB to 232 driver are the same After installing the driver, a serial port will appear. Please select a baud rate of 9600 when downloading. This PLC series has 2 independent 232 serial ports, one is 232 level 9pin port (2: TXD 3: RXD 5: GND), the other is TTL Level 4pin Port (1: GXD 2: TXD 3: RXD 4 : 5V), both of these ports are programmable and connected to the touch screen. When programming, the 9pin port uses the USB232 cable; the 4pin port uses the USBTTL cable. When connecting the touch screen, the 232 level 9pin port is directly connected to the touch screen with a 9pin male to female wire (actually only 3 wires are used, namely 22, 33, 55). The TTL level 4pin port needs to use our company s TTL to 232 conversion board to convert to 232 level before it can be connected to the touch screen. Size: Approx. 122mm 4.8in, 87mm 3.4in, 28mm 1.1in. Package List: 1 x PLC Control BoardThe function is compatible with FX1N series, input high?speed pulse C235, C251, Y0 can send 10K pulse Power circuit has undergone multiple anti?interference designs, without fear of various harsh electromagnetic interference working environments Can be used flexibly in various industrial automatic control occasion, such as metallurgy, chemical industry, plastics, textile, food, packaging, printing, building materials, woodworking, central air conditioning, environmental protection equipment Suitable for industrial control equipment for production machinery, industrial assembly lines, and various machine tools in industries such as single process control devices Relay delay module come with small size, stable structure and excellent performance
