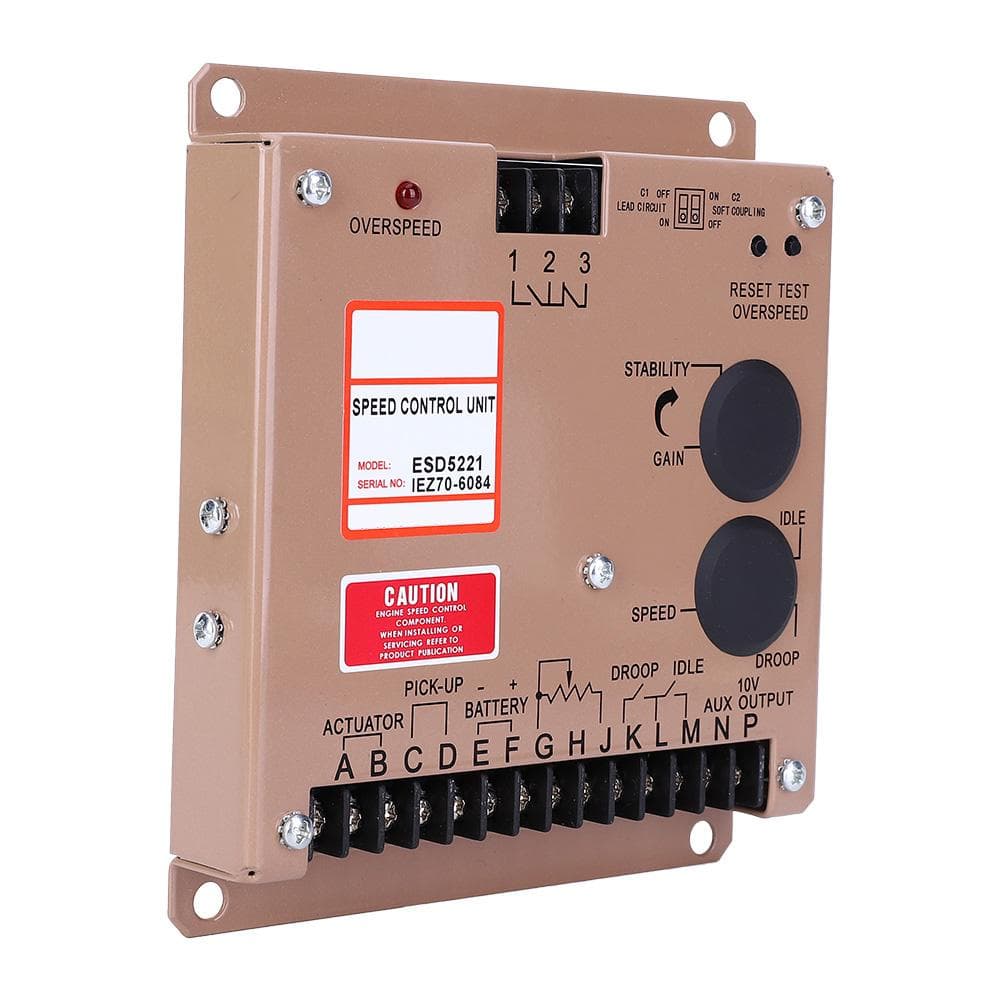

ESD5221 Speed Controller Universal Board Motor Control Governor Electric Components

About this item

• Feature: 1. Using this product can perfectly replace expensive imported products. 2. The speed controller can cooperate with a variety of engines. 3. With imported spare parts production, the product is reliable and of good quality. 4. The already improved circuit is featured with higher stability and better performance. 5. 100percent factory thermoelectric aging experiment can give quality assurance. Specification: Item Type: ESD5221 speed controller.Speed Stability: Better than +0.25percent Speed Range: 1KHz ~ 7.5KHz Thermal Stability: Maximum +1percent IDLE Adjustment: 160+20Hz ~ 95percent of rated speed DROOP Adjustment: Minimum position: 15Hz+6Hz load current change per ampere Maximum Position 400Hz+75Hz load current change per ampere External Speed Adjustment: +200Hz (external 1K Ohm ) AUX Input Sensitivity: 148Hz 1V., +10Hz., Impedance: 1M Ohm START FUEL Adjustment: 160+20Hz ~ 70percent of rated speed RAMP Time Adjustment: 1.5 ~ 20Sec. 10V Output Current: Maximum 20mA Surroundings: Operating Temperature Range: 40 celsius ~ 85 celsius Operating Humidity Range: Maxism 95percent Storage Temperature: 55 celsius ~ 90 celsius Vibration: 20100HZ 500mmSec. Input Power: Power Supply Voltage: 12V and 24V DC battery system Grounding polarity: Negative Power Consumption: 50mA Actuator Continuous Current: Minimum 2.5A; maximum 10A Speed Sensor Signal: 0.5 ~ 120 RMSSize: Approx. 15.2 x 16.5cm 6 x 6.5in Package List: 1 x Speed Controller 1 x User Manual Note: The above performance parameters are measured at the working frequency of 4000Hz.Using this product can perfectly replace expensive imported products. The speed controller can cooperate with a variety of engines. With imported spare parts production, the product is reliable and of good quality. The already improved circuit is featured with higher stability and better performance. 100percent factory thermoelectric aging experiment can give quality assurance.
