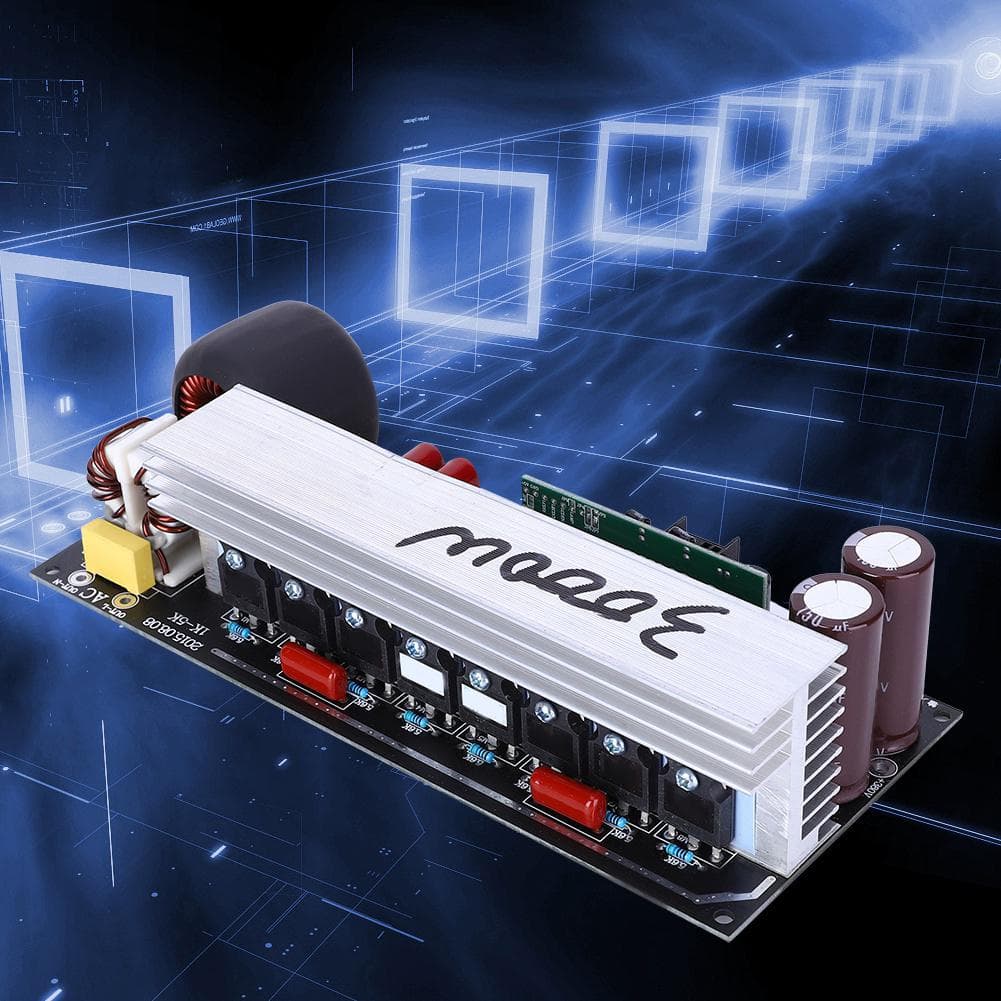

3000w Pure Sine Wave Inverter Power Board Heat Sink Post Stage Boards Correction

About this item

• Feature: 1. Wide range of product applications, can be modified into a sine wave inverter 2. Using high?quality materials, strong and durable, has a long service life 3. Great workmanship, perfect replacement for the old one 4. Small size, easy to carry and store, convenient to use and with good performance 5. Strict quality control and quality assurance, high safety factor, can be used with peace of mind Specification: Item Type: Pure Sine Wave Inverter Power BoardInput Voltage: DC380V. Input Voltage: AC16V. Output Voltage: AC220V. Output Frequency: 5060HZ (adjustable) Output Waveform: Pure sine wave. Circuit Board Specifications: Approx. 200 x 85 x 50mm 7.9 x 3.3 x 2in Operation Instructions: The product is a modified wave inverter to correct the sine wave inverter, and the modified wave inverter 1000W2000W3000W and so on... can be modified into a sine wave inverter. First remove the modified wave inverter rear stage power tube, then look at the modified wave transformer transformer, and then see if the transformer secondary circuit is connected in parallel or in series, then add the transformer parameters, and the modified wave transformer secondary is parallel. , add 16 turns in the secondary of each transformer. The modified wave transformer secondary is in series with 8 turns in each transformer secondary. Then in the modified wave transformer, one of the transformers has a small voltage parameter added to it. This small voltage parameter uses a single 0.6 copper wire and is wound inside the transformer: 5 turns. This small voltage is the link AC: 16V position. (Remark: Transformer plus parameters do not open the magnetic ring.) After the transformer parameters are added, be sure to change the highvoltage capacitor of the modified wave inverter back to 220UF450V. Remember: There is a feedback on the positive side of the highvoltage capacitor of the modified wave inverter. Resistance, this resistance is a few hundred K, also need to change the resistance value of the large point, not the voltage will not rise. Repower test highvoltage capacitor (positive negative) voltage is DC380V, after the test voltage is normal, use the link line to provide the sine wave rear stage board, after the output voltage of the rear stage board: AC220V50HZ, output waveform: pure sine wave. . Package List: 1 x Pure Sine Wave Inverter Power BoardWide range of product applications, can be modified into a sine wave inverter Using high?quality materials, strong and durable, has a long service life Great workmanship, perfect replacement for the old one Small size, easy to carry and store, convenient to use and with good performance Strict quality control and quality assurance, high safety factor, can be used with peace of mind
