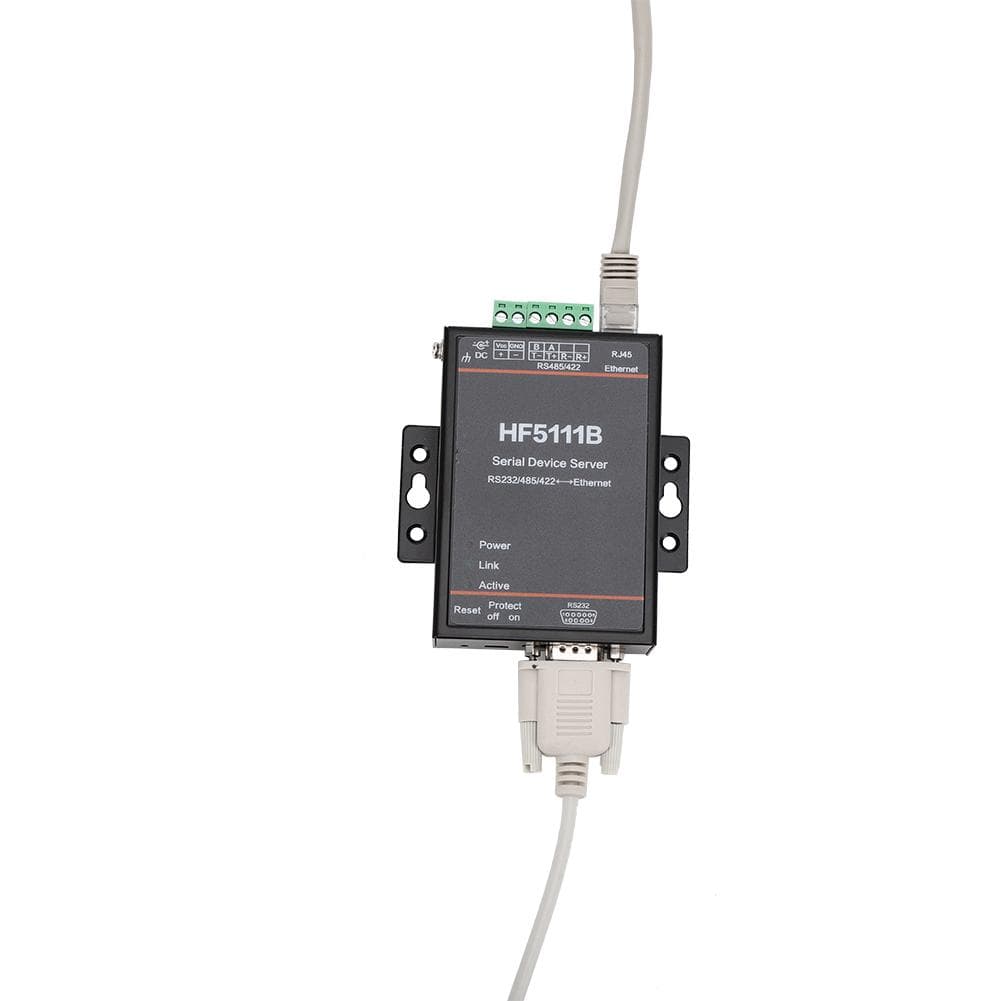

HF5111B Serial Server 3in1 RJ45 RS232RS485RS422 to Ethernet Serial Server DTU

About this item

• Feature: 1. Adopt for CortexM3 MCU (128KB for SRAM) and 2MB Flash. 2. Adopt for FreeRTOS realtime operating system. 3. Support for TCP for IP for Telnet for Modbus TCP protocol. 4. Support serial port to 10 100M Ethernet data transmission, serial port speed can be up to 921600 bps. 5. Support 10 100M Ethernet selfadaption. 6. Support webpage mode, PC software easy configuration. 7. Support data for SSL for AES for DES3 security encryption configuration. 8. Support web OTA wireless upgrade. 9. Support industrialgrade working temperature: 40 to + 85 celsius . Specification: Item Type: HF5111B Serial Server Ethernet Interface Parameters: Ethernet Interface Form: 1 RJ45 Interface Standard: 10100 BaseT autonegotiation Network Port Protection: Static: 8KV contact discharge, 15KV air discharge Network Transformer: Integrated Network Protocols: IP, TCP, UDP, DHCP, DNS, HTTP, Server Client, ARP, BOOTP, AutolP, ICMP, Web socket, Telnet, for FTP, for TFTP, for UPNP, for NTP, for Modbus TCP Data Security Protocol: for AES128Bit, for DES3, for SSL TLS v1.2 SNMPV1 V2 V3: Not supported IPV6: Not supported Serial Interface Parameters: Number Of Serial Ports: 1 (RS232 485422) Interface Standard: RS232: DB9 pin type RS485 RS422: 5.08mm terminal block Baud Rate: 2400460800bps Serial Port Protection: Static: 8KV contact discharge, 15KV air discharge Surge: Differential mode 2KV, common mode 4KV Data Bits: 5, 6, 7, 8 Stop Bits: 1, 2 Parity: None, Even, Odd, Space, Mark Flow Control: No flow control, hardware RTS CTS, software Xon Xoff flow control Network Technical Parameters: Working Mode: TCP Server, TCP Client, UDP, HTTP, Telnetd IP Acquisition Method: DHCP or static IP, AutolP Domain Name Resolution DNS: Support Simple Transparent Transmission Mode: Support Http Protocol Transmission Mode: Support For Modbus Conversion: Support WEB Page: Standard web page or custom web page Failure Alarm: Syslog SMTP Configuration Method: WEB page, CLI command, XML file import, Telnet configuration, IOTService configuration software Custom Registration Package: Support Custom Heart Beat: Support Product Features: IOT Service: Support Virtual Data Channel: Support Virtual Serial Port Software: for Windows XP for Vista 7810 (32bit \ 64bit), for Win Server 200320082012. Package List: 1 x Serial Network Server 1 x Serial Cable 1 x Network Cable Adopt for CortexM3 MCU (128KB for SRAM) and 2MB Flash. Adopt for FreeRTOS realtime operating system. Support for TCP for IP for Telnet for Modbus TCP protocol. Support serial port to 10 100M Ethernet data transmission, serial port speed can be up to 921600 bps. Support 10 100M Ethernet selfadaption.
