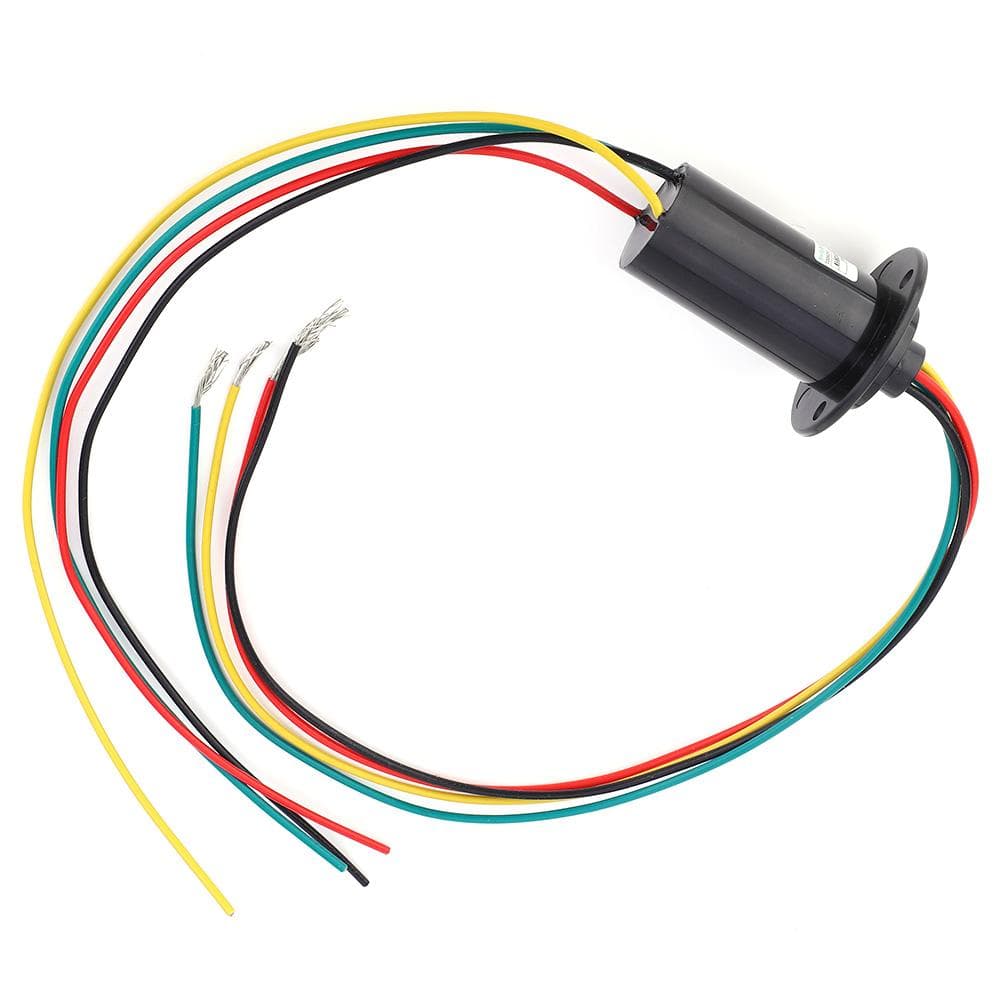

MW1430 Conductive Slip Ring 30A 4 Wires High Power Current Slip Ring 150RPM

About this item

• Feature: 1. Made of highquality materials, wearresistant, pressureresistant, hightemperature, corrosionresistant, and antiaging. 2. Long working life, up to 10 million revolutions. 3. Precious metal contact material, good conductivity performance. 4. IP51 protection level, good dustproof effect, long service life. 5. Standard wire length 300mm, can be adjusted as required. Specification: Item Type: Conductive Slip Ring Model: MW1430 Number of Rings: 4 Rated Current Per Loop (A): 30 Outer Diameter: Approx. 29.8mm 1.2in Length: Approx. 65.7mm 2.6in Working Life: 10 Million Revolutions Rated Speed: 150RPM Working Temperature: 30 celsius ~ 80 celsius Operating Humidity: 0 ~ 85percent RH Contact Material: Precious Metal Housing Material: PBT Moment of Rotation: 0.1N m; + 0.03Nm 6 channels Protection Level: IP51 Rated Voltage: 0 ~ 600VAC VDC Insulation Resistance: more than 1000MQ 500VDC Wire Specifications: 10A = AWG # 1620A = AWG # 14: 30A = AWG # 12; Length: Standard length 300mm (can be adjusted as required) Insulation Strength: 500VAC at 50Hz, 60s Dynamic Resistance Change Value: <0.01Q. Package List: 1 x Conductive Slip RingMade of highquality materials, wearresistant, pressureresistant, hightemperature, corrosionresistant, and antiaging. Long working life, up to 10 million revolutions. Precious metal contact material, good conductivity performance. IP51 protection level, good dustproof effect, long service life. Standard wire length 300mm, can be adjusted as required.
