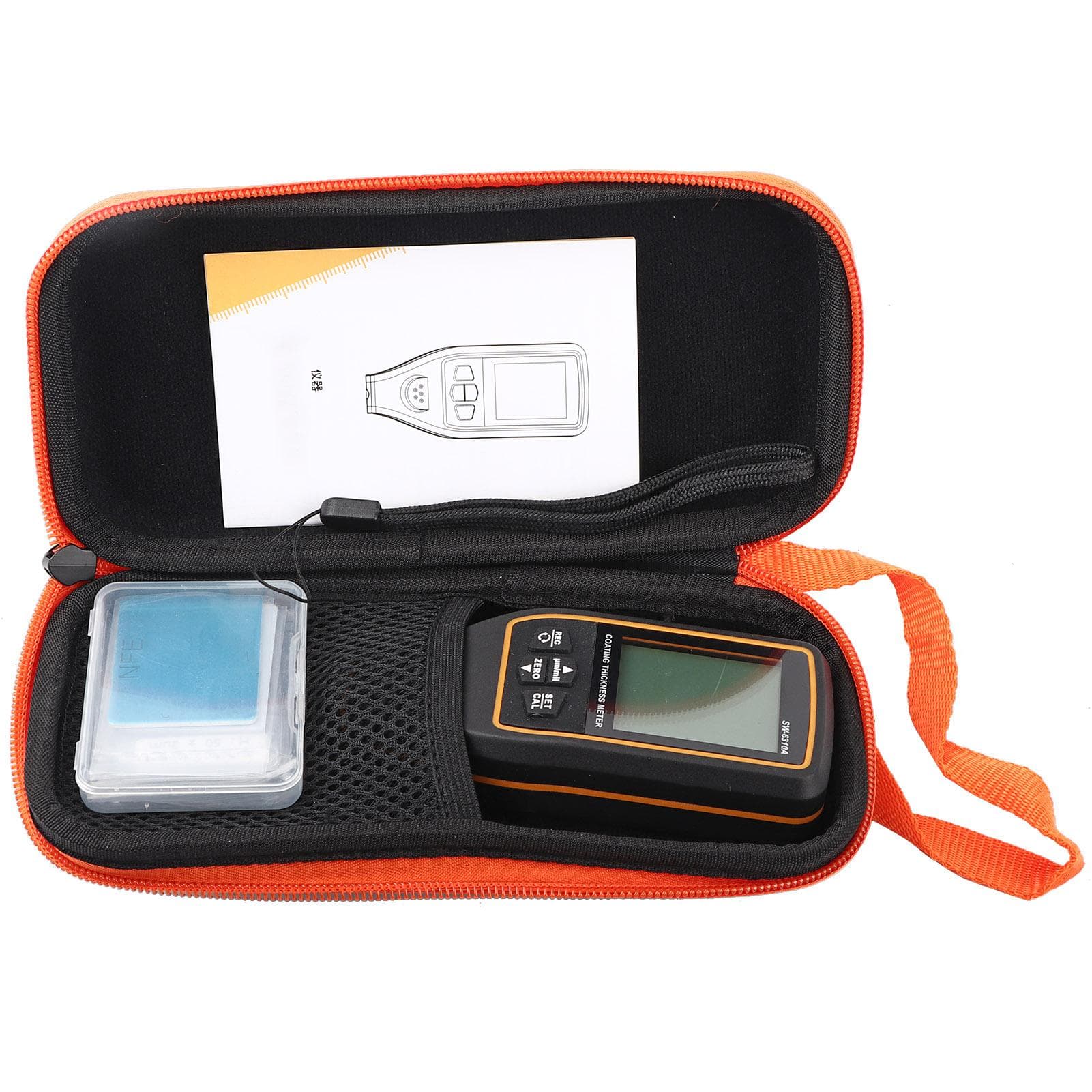

High Accuracy Digital Paint Coating Thickness Gauge Meter Measuring Tool for Car Laboratory Use

About this item

• Feature: 1. The measuring range of this paint thickness gauge is 0~1700um, can store maximum 30 groups data. 2. Human‑oriented interface with backlight LCD display, user can set the parameters visually before using it. And easy to store, recall or delete the readings. 3. This coating thickness meter is suitable for laboratory, workshop, paint shops, automobile, shipbuilding, aircraft industries, etc. 4. With iron‑based/non‑iron‑based automatic dual mode, two‑way rotating screen, self‑calibration function. 5. The measurable coating layer includes the thickness of the non‑magnetic coating layer on the surface of the magnetic material and the thickness of the nonconductive coating layer on the non‑magnetic metal surface. Specification: Condition: 100% Brand New Item Type: Coating Thickness Gauge Material: Plastic + Electron Color: As shown in the picture Model: SW-6310A Measuring Range: 0-1700 μm Resolution: 0.1μm at (0-99.9um); 1μm at (100-1700um) Indication Error: ±(2+2%xH)μm at (0-500um) ±(2.5%xH)μm at (500-1700um) Minimum Measurement Area: 25x25mm / 1.0x1.0in Minimum Curvature: Convex 5mm; concave 30mm Minimum Substrate Thickness Degree: Magnetic 0.2mm; non-magnetic 0.05mm Display: 2.0 inch segment codes screen Data Storage: 30 records Data Export: None Live Voice Broadcast: None Histogram Data Analysis: none Size: Approx.12x2.6x5.2cm / 4.7x1.0x2.0in Battery: 2 x AAA battery(Not included) Weight: Approx.478g/16.9oz Application: Testing the coating thickness of items in laboratories, home improvement tools, workshops, etc. . Package List: 1 x Coating Thickness Gauge(Battery Not Included)1 x Lanyard1 x Instruction Manual3 x Calibration Sheet1 x Tool Box Note: 1. Please allow 1‑2cm error due to manual measurement. Thanks for your understanding.2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.3. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
