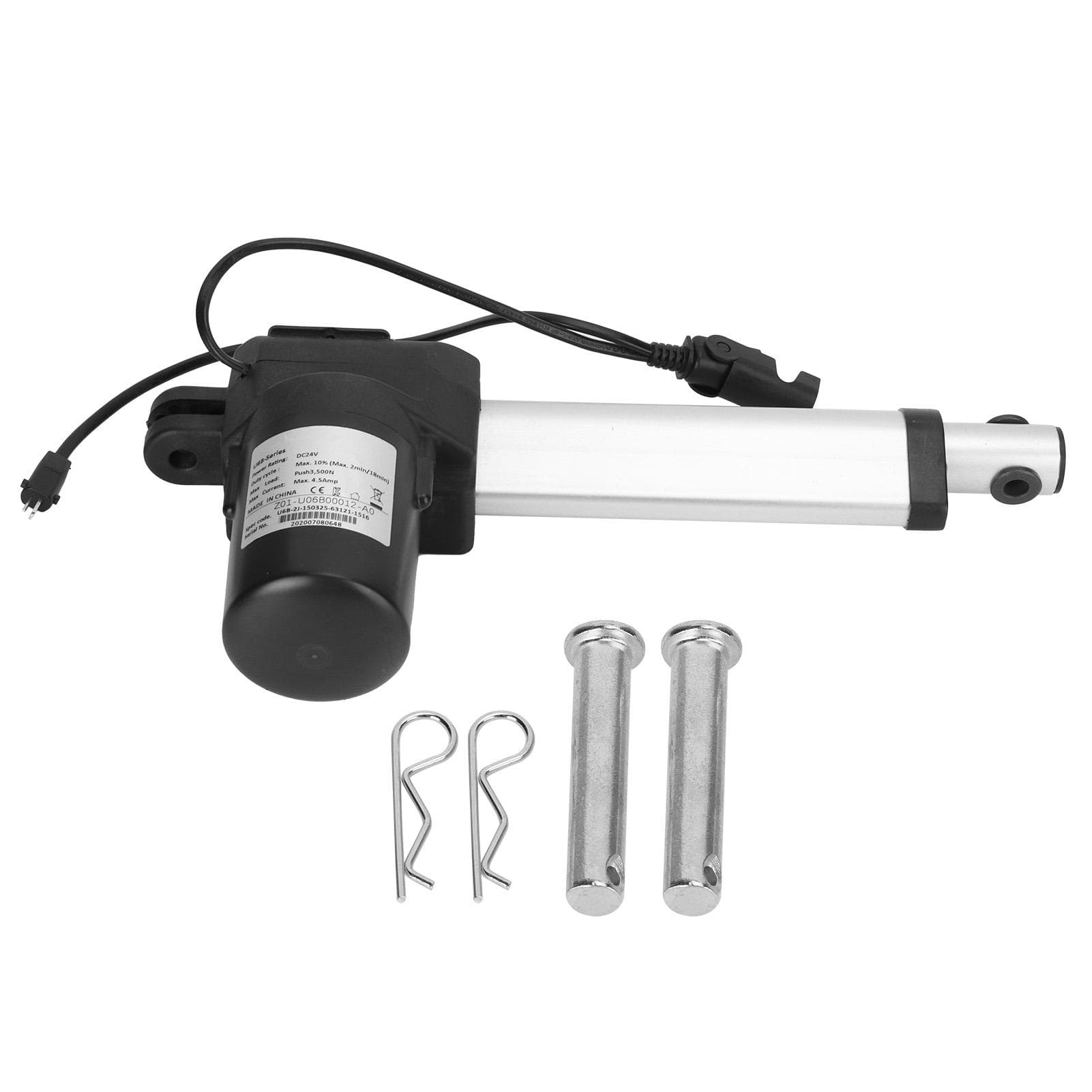

DC24V Linear Actuator Lifting Rod for Automotive Machinery Industry 150mm (01 Male 5P Female)

About this item

• Feature: 1. Built?in limit switch, the maximum pushing force is 2000N, easy to operate. 2. The maximum load is 3500N, the load speed is about 8mm/s, and low noise. 3. Strong power and stable start, suitable for automobiles, machinery industry, robots, etc. 4. Linear actuator, uses high?quality ABS + aluminum alloy, which is durable and long?lasting. 5. Small size, stable performance, small installation distance and long service life. Specification: Item Type: Linear Actuator Material: ABS+Aluminum Alloy Inner Tube: Aluminum Tube Head Mounting Connector: Plastic Rear Mounting Connector: Aluminum Alloy Weight: Approx. 2175g / 76.7oz Maximum Pushing Force: 2000N Maximum Pulling Force: 2000N Maximum Load: 3500N Maximum Current: 4.5Amp Load Speed: 8mm/S Stroke: 150mm / 5.9in Installation Direction: H Type or V Type Limit Switch: Built-In Protection Level: IPX4 Noise: <55dB(A) Test Distance: 300mm / 11.8in Use Environment Temperature: 0 - +40 celsius Size: Approx. 265x133x67mm / 10.4x5.2x2.6in. Package List: 1 x Linear Actuator2 x Fixing Accessory2 x Fixing Buckle Note: 1. Please allow 0‑1 inch error due to manual measurement. Thanks for your understanding.2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.3. For full load, the working system of the electric push rod trapezoidal tooth screw is generally 25percent . If it is not, it can be increased appropriately. The working system of the ball screw is 100percent .4. Balance the lateral force of the push rod to ensure that the electric push rod only bears radial force during operation.5. The length of the telescopic tube should be increased when the stroke is greater than 800mm, and the stability of the electric push rod should be considered when the stroke is greater than 300mm.6. The operating temperature of the electric push rod must be within its allowable range.
