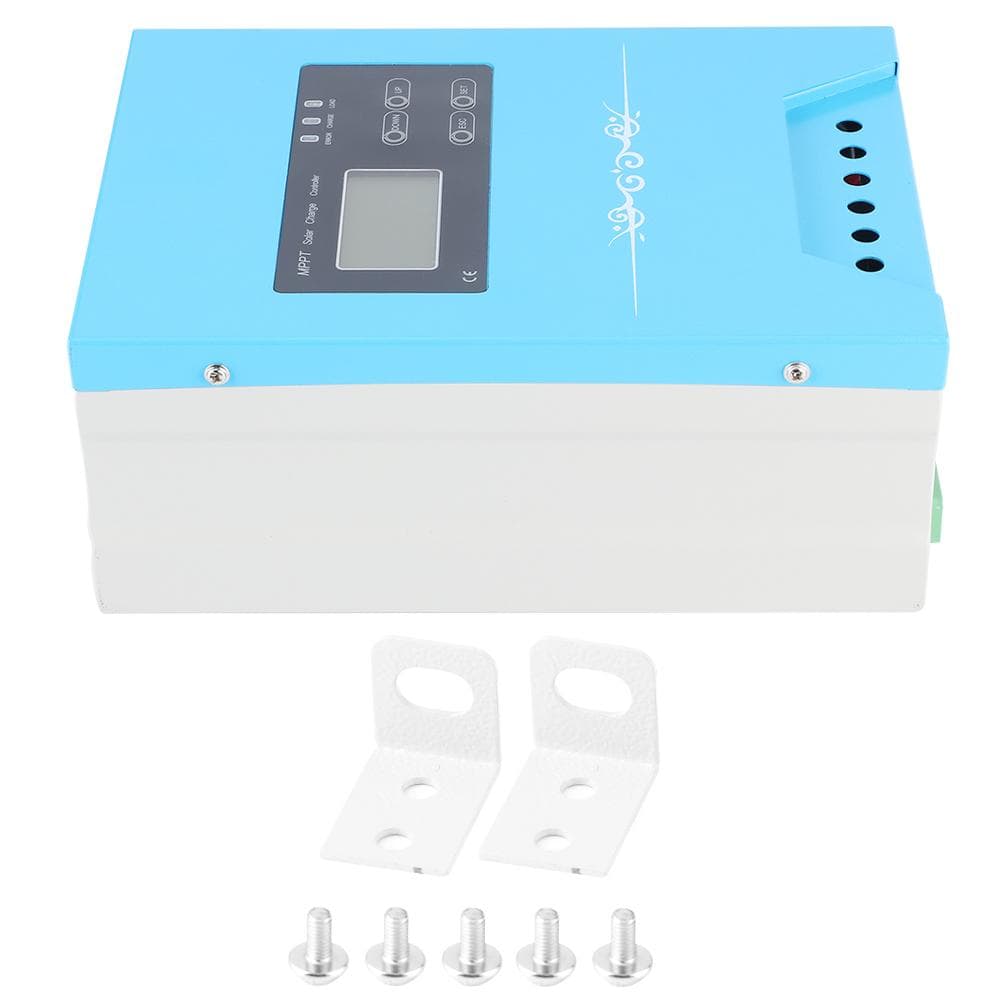

JNMPPTBL12v 24v 48V Solar Charge Controller MPPT Controller Support for Data

About this item

• Feature: 1. Advanced MPPT maximum power point tracking technology, tracking efficiency is not less than 99.5percent , compared with ordinary PWM algorithm, the efficiency is increased by 15percent to 20percent . 2. Using high?quality components and advanced power conversion circuits, the maximum conversion efficiency reaches over 98percent , and the full load efficiency reaches 97percent . 3. The structure is made of aluminum and can be used under various harsh conditions. Support data storage, the storage time can be up to 10 years. 4. Advanced multi?phase synchronous rectification technology also has higher conversion efficiency in low power charging environment. The system adopts universal negative circuit, which makes the system work more stable and reliable. 5. In the current limiting charging mode, when the input power of the photovoltaic panel is too large and the charging current exceeds the rated current of the controller, the controller will limit the charging current to the rated current for charging. Specification: Condition: 100percent Brand New Item Type: Solar Charge Controller Material: Aluminium Type: MPPT-BL-30A, MPPT-BL-40A, MPPT-BL-50A, MPPT-BL-60A, MPPT-BL-70A (optional) Parameter Name Parameter Values (and Adjustable Ranges) Model JN-MPPT-BL (30-70A) Current Rating (A) 30 40 50 60 70 System Identification Voltage Range (V) 12V System: DC9V-DC16V 24V System: DC18V-DC32V 48V System: DC42V-DC60V PV Panel Open Circuit Input Voltage Range (V) 20V~100V (12V System) 40V~150V (Recommended Below 145V) (24V System) 80V~150V (Recommended Below 145V) (48V System) -- (96V System) Maximum Charging Current (A) 30 40 50 60 70 PV Maximum Input Power (12V) (W) 400 500 600 750 850 PV Maximum Input Power (24V) (W) 800 1000 1200 1500 1700 PV Maximum Input Power (48V) (W) 1600 2000 2400 3000 3400 PV Maximum Input Power (96V) (W) -- -- -- -- -- Output Maximum Current (A) 15 20 25 30 35 MPPT Efficiency more than 99.5percent Conversion Efficiency more than 96percent System Rated Voltage (V) 12V System 24V System 48V System 12V system default Overpressure (Overcharge) (V) 14~18V 28~36V 56~62V Default 16V Overpressure Return (V) 13~17V 26~34V 52~62V Default 15V Charging Limit Voltage (V) 12.9~16.9V 25.7~33.7V 51.6~62V Default 14.9V Balanced Charging Voltage (V) 12.7~16.7V 25.4~33.4V 50.8~62V Default 14.7V Increase The Charging Voltage (V) 12.4~16.4V 24.8~32.8V 49.6~62 Default 14.4V Increase The Charge Return Voltage (V) 11.2~15.2V 22.4~30.4V 44.8~62V Default 13.2V Floating Charge Voltage (V) 11.8~15.8V 23.6~31.6V 47.2~62V Default 13.8V Over Discharge Voltage (V) 8.8~12.8V 17.6~25.6V 35.2~ 51.2V Default 10.8V Over Discharge Return Voltage (V) 11.1~15.1V 22.2~30.2V 44.4~60.4V Default 13.1V Balanced Charging Time (H) 1/2/3 Hours Default 2H Increase Charging Time (H) 1/2/3 Hours Default 2H Device Address 1~99 Default 6 Light Control Turn-On Voltage (V) 5~11V Default 5 Light Control Off Voltage (V) 5~11V Default 6 Light Control Delay (H) 10min Temperature Compensation ( degrees C) 0~4 Default 4 Over Temperature Protection ( degrees C) 70 celsius Current Reduction, 90 celsius celsius Off Charging and DC Load Working Temperature ( degrees C) -20 celsius ~50 celsius Storage Temperature ( degrees C) -40 celsius ~80 celsius Humidity ( degrees C) 10percent ~90percent No Condensation Weight Approx. 2796g / 98.6oz Product Size (mm) Approx. 254.5 x 170 x 97 mm / 10 x 6.7 x 3.8 in . Package List: 1 x Controller1 x English User Manual5 x Screw2 x Hanging Plate Note: 1. Please allow 0?2 cm error due to manual measurement. Thanks for your understanding.2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
