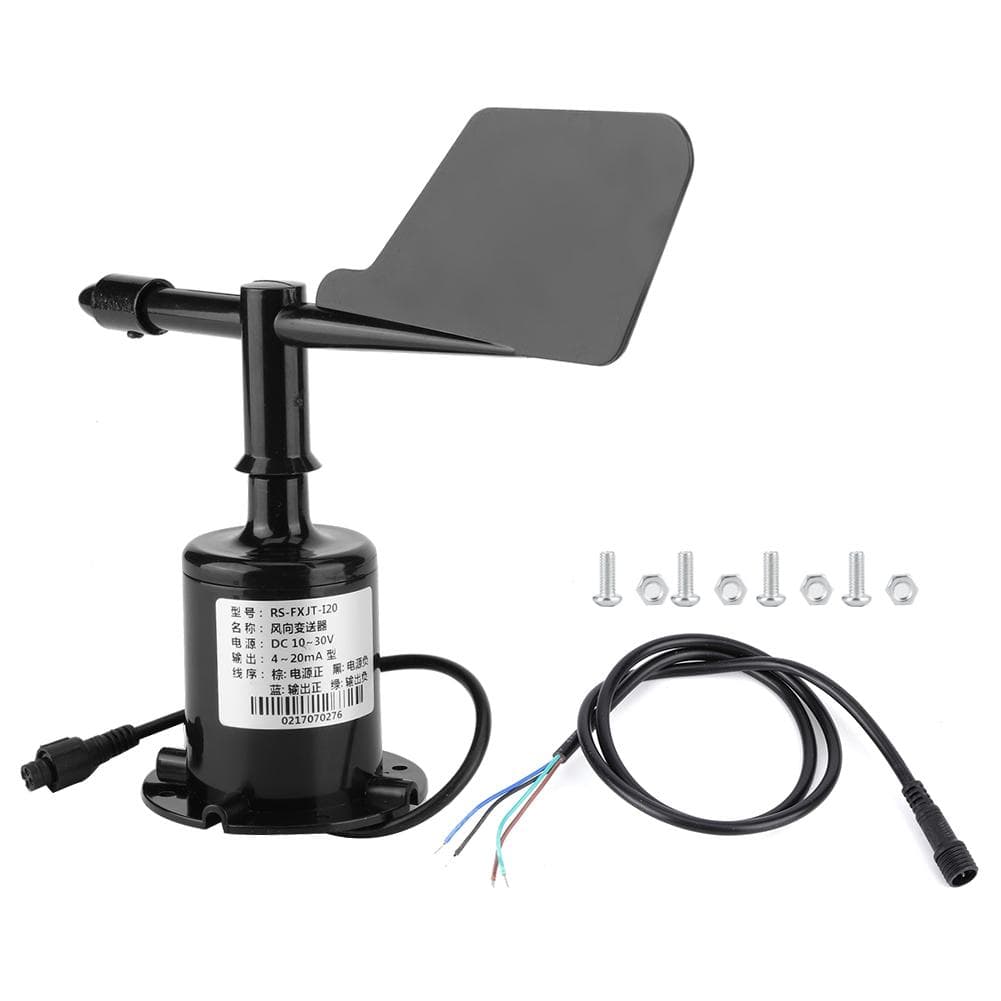

4-20mA 8 Indication Directions Polycarbonate Wind Speed Sensor Anemometer Measuring Tool

About this item

• Feature: 1. Polycarbonate shell, high mechanical strength, high hardness, corrosion resistance, no rust can be used outdoors for a long time. 2. 8 indication directions, high-performance bearings, small rotational resistance, accurate measurement, more convenient and practical. 3. Small and light in size, easy to carry and assemble, anti-electromagnetic interference treatment, can be applied to both four-wire and three-wire connection. 4. Anti-exposure, high impact strength, and with the internal smooth bearing system to guarantee the accuracy of information collection. 5. Widely used in the measurement of wind direction in greenhouses, environmental protection, weather stations, ships, terminals, breeding and other environments. Specification: Condition: 100percent Brand New Item Type: Wind Speed Sensor Material: Polycarbonate Parameter: v\:* {behavior:url(#default#VML);} o\:* {behavior:url(#default#VML);} x\:* {behavior:url(#default#VML);} .shape {behavior:url(#default#VML);} DC Power Supply (Default) 10-30V DC Maximum Power Consumption Current Output 1.2W Transmitter Circuit Operating Temperature -20 celsius to +60 celsius , 0percent RH-80percent RH Measuring Range 8 Directions Dynamic Response Time less than 0.5s Output Signal Current Output 4-20mA Load Capacity Current Output less than 600 Ohm Calculation Method: v\:* {behavior:url(#default#VML);} o\:* {behavior:url(#default#VML);} x\:* {behavior:url(#default#VML);} .shape {behavior:url(#default#VML);} 0-10V Output Comparison Table Output Value (V) Corresponding Wind Direction Approximately equal to0 North Wind Approximately equal to1.4286 Northeast Wind Approximately equal to2.8571 East Wind Approximately equal to4.2857 Southeast Wind Approximately equal to5.7143 South Wind Approximately equal to7.1429 Southwest Wind Approximately equal to8.5714 West Wind Approximately equal to10 Northwest Wind Power Wiring: Wide Voltage 10-30V DC Power Input Product Size: Approx. 23.5 x 18.5 cm / 9.3 x 7.3 in Weight: Approx. 317g / 11.2oz Common Problems and Solutions: No output or output error possible causes: 1) The range corresponding error causes the error PLC calculation. Please refer to the technical indicators for the range. 2) The wiring method is incorrect or the wiring sequence is wrong. 3) The power supply voltage is incorrect (24V power supply for 0-10V type). 4) The distance between the transmitter and the collector is too long, causing signal disturbance. 5) The PLC collection port is damaged. 6) Equipment damage. Package List: 1 x Wind Speed Sensor1 x Cable1 x Screw Kit (4 x Screw, 4 x Nut) Note: 1. The user should not disassemble it by himself, and should not touch the sensor core to avoid damage to the product.2. Keep away from high-power interference equipment as much as possible to avoid inaccurate measurement, such as inverters, motors, etc. When installing or disassembling the transmitter, the power must be disconnected first, and water in the transmitter can cause irreversible changes.3. Prevent chemical reagents, oil, dust, etc. from directly invading the sensor, do not use it for a long time under condensation and extreme temperature environment, and prevent cold and thermal shock.
