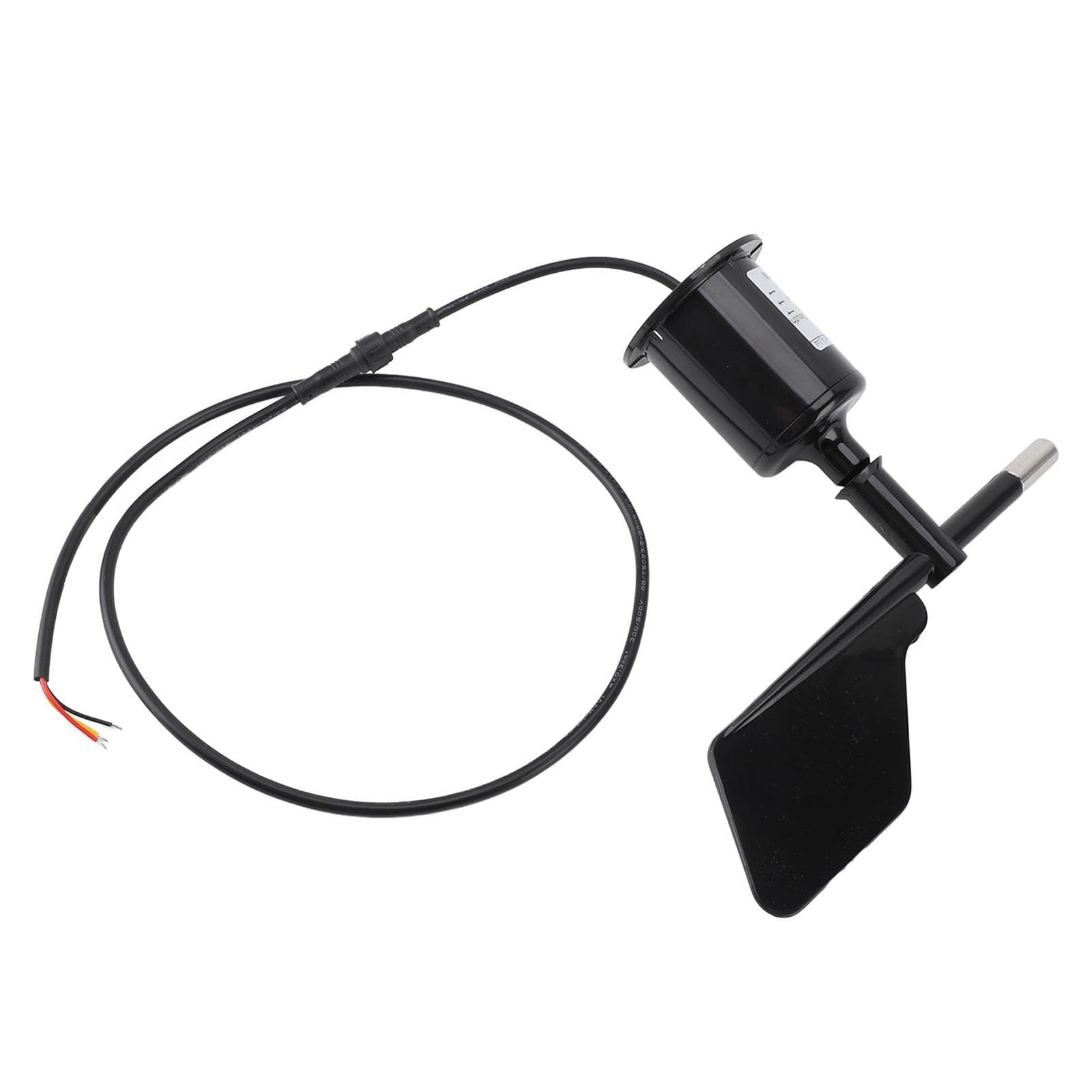

Wind Direction Sensor 360 Degree DC9?30V Anemometer Sensor 0?5V Output Small Rotational Resistance

About this item

• Feature: 1. Wind Direction Sensor: The all round 360 degree wind direction sensor comes with excellent linearity, high accuracy, no dead points, strong lightning resistance, easy observation, and reliable stability. 2. Wind Direction Indicator Shell: Small rotational resistance, accurate measurement, small size, light weight, easy to carry and assemble. It has a simple design, but very practical in use, giving you a good using experience. 3. ABS Material: Made with a low inertia ABS wind vane, the sensor exhibits good dynamic characteristics and responds well to wind direction changes. Safe to use. Boasting wonderful performance and strong stability. 4. Working Principle: The wind direction sensor operates primarily by rotation. This working principle enables accurate measurements of the wind s direction. It can be used outdoors for a long time. 5. Wide Application: Ideal for meteorology, environmental monitoring, aviation, and aerospace. It aids in understanding wind conditions and implementing corresponding measures. Specification: Item Type: Wind Direction Sensor Material: ABS Weight: Approx. 385.00g / 13.58oz Power Supply Voltage: DC9-30V Output: 0-5V Extension Line Length: 0.8m / 2.6ft Accuracy: Full Range: +/-3 Degree Resolution: Full Range: 1 Degree Starting Wind Speed: less than 0.8m/s Maximum Power Consumption: 0.48W Load Capacity: DC12V Power Supply, Current Output Impedance less than 350 Ohm , DC24V Power Supply, Current Output Impedance less than 900 Ohm Voltage Output Impedance: more than 1K Ohm Operating Environment: Temperature -35 celsius -60 celsius , Humidity less than 100percent RH No Condensation Waterproof Level: IP64 Cable Level: Rated Voltage: 300V 80 celsius Wide Application: Suitable For Wind Direction Measurement In Gardens, Greenhouses, Weather Stations, Ships, Docks, Aquaculture, Advertising Barriers, Meteorology, Marine, Environmental, Airports, Ports, Laboratories, Agriculture, And Transportation Environments. Installation Aperture: 3.2mm / 0.1in Mast Diameter: 15mm / 0.6in (Recommended To Reserve 25mm For Wiring, Connect The Wires First, Then Install And Fix The Sensor) Calculation Formula: 0-5V: F=V/5x359 Note: F Represents The Wind Direction Angle Value In Degrees, V Represents The Sensor Output Voltage Value In Volts Connection Method (Wire Sequence): Red-Power Positive, Black-Power Negative, Yellow-Signal Troubleshooting: 1. The Wind Blade Rotation Is Not Flexible And Delayed. It May Be Caused By Foreign Objects Or Jamming In The Bearing After Long Term Use. Please Return The Sensor To The Company For Processing. 2. The Analog Signal Or Rs485 Output Does Not Display The Correct Value. It May Be Due To Wiring Or Intercom Port Failure. Check If The Wiring Is Correct And Secure, If The Port Is In Use, And If The Port Settings Are Correct. 3. If It Is Not The Above Reasons, Please Contact for Service.. Package List: 1 x Wind Direction Sensor Note: 1. Please check if the packaging is intact and verify if the product model matches the selection.2. Do not connect the wires with power on, only power on after checking the wiring is correct. 3. The length of the sensor wire will affect the product output signal, do not change the product arbitrarily when using.4. The sensor is an accuracy device, users should not disassemble it by themselves, or contact the sensor surface with sharp objects or corrosive liquids to avoid damage to the product.5. Do not plug or unplug with power on.6. Please install facing the south direction.
