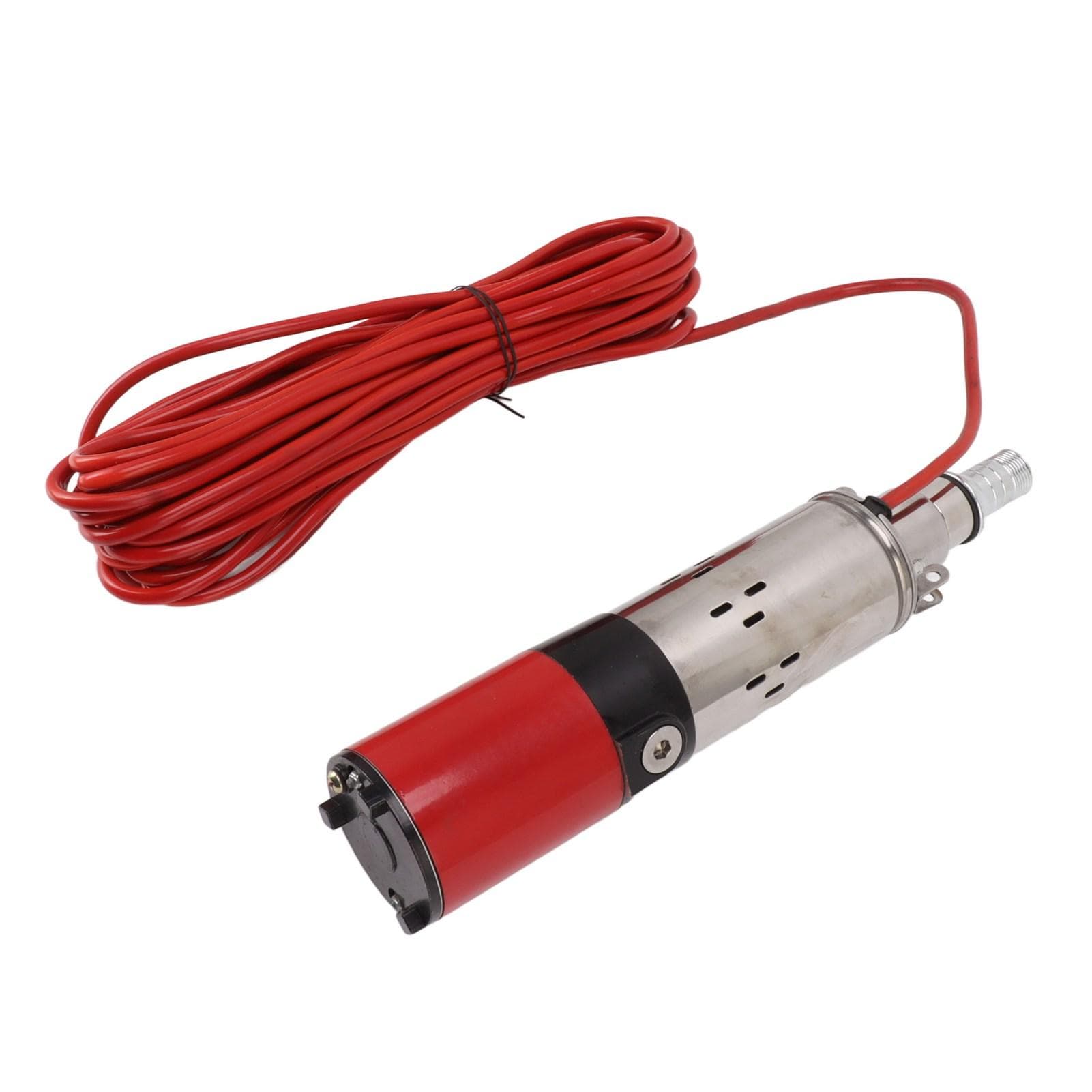

DC 12V Water Pump 220W Carbon Brush Motor Stainless Steel Electric Screw Pump 30 Meter High Lift

About this item

• Feature: 1. [CARBON BRUSH MOTOR] The 12V water pump adopts DC brush motor with high speed, no excitation loss and good speed regulation performance. 2. [EXCELLENT PARTS] Adopt excellent screw, impeller and stainless steel filter screen to effectively prevent impurities from entering the pump body. 3. [WORK PARAMETERS] The DC pump has a power of 220W and a maximum flow of 1.2m3/h, the maximum lift up to 30 meters, efficient and reliable. 4. [STANDARD THREAD] The DC electric pump has standard outlet thread size, easy to connect and no leakage, and suitable for more scenarios. 5. [APPLICABLE SCENES] The pump is applicable to yacht, fishing boat, family, ranch, farm, orchard irrigation, industrial wastewater discharge, etc. Specification: Item Type: DC Water Pump Voltage: 12V Power: 220W Flow: 1.2m3/h Lift: Approx. 30 meter / 98.4ft Outlet Thread Size: Approx. 25mm / 1in Pump Size: Approx. Approx. 78 x 385mm / 3.1 x 15.2in Application: For yachts, fishing boats, families, pastures, farms, ponds, orchards, industrial wastewater, etc. Material: Stainless Steel Weight: Approx. 3988g / 140.7oz. Package List: 1 x Water Pump1 x User Manual Note: 1. Before use, check whether the power supply voltage is consistent with the pump, and the voltage tolerance is 5percent .2. When using additional cables, the wire diameter should be sufficient and the extension wire should be as short as possible.3. Before use, check whether the bolts are loose, and whether the power line and the insertion line are damaged or in poor contact.4. The lifting and release of the electric pump should be tied to the hoist and placed by hand. Do not pull the cable.5. If there are sand and other sundries in the water, the electric pump should be placed in a basket or a place with dirt and sundries to prevent the water pump from blocking.6. After 500 hours of power on operation, remove the pump for maintenance, check the seals, clean the brush powder of the torsion converter, and replace the bearing grease and carbon brush.7. Before use, determine the positive and negative poles of the water pump and power supply. The positive and negative poles of the water pump should correspond to the positive and negative poles of the power supply. (Connect the positive pole and negative pole, press the screw in the socket with a hard object to fix the screw with a positive rotation)8. Check the voltage of the solar photovoltaic panel or battery before use. The voltage of the water pump needs to match the voltage of the solar photovoltaic panel or battery.9. The water depth of the pump should not exceed 7 meters, otherwise the water pressure is too high and the oil seal cannot bear it, which will cause water to enter the motor.
