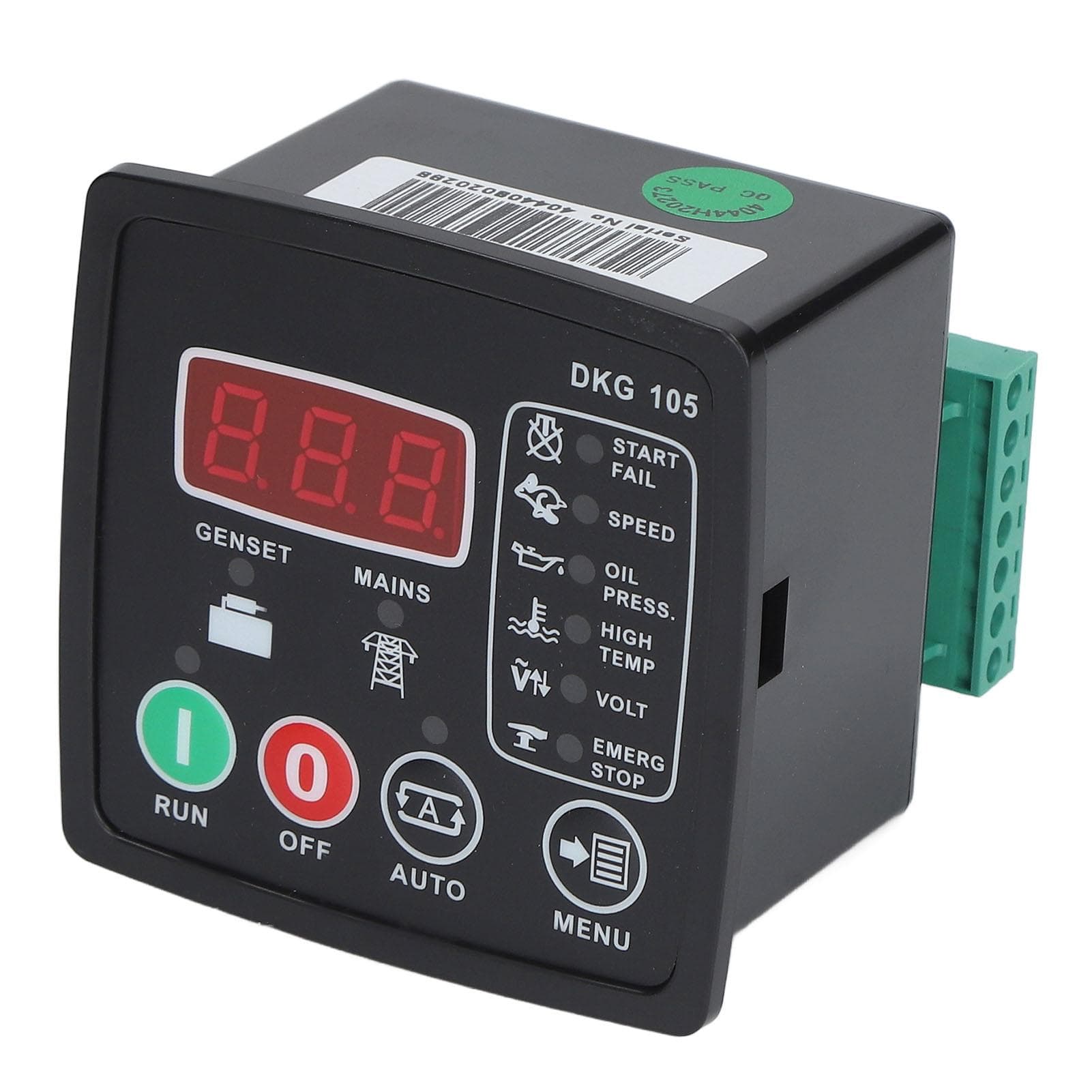

Generator Engine Controller Auto Start Stop Diesel Engine Controller Module Panel for Diesel

About this item

• Feature: 1. Professional Design: Diesel engine controller is designed to automatically start and stop the generator. 2. Applicable: Generator engine controller module panel is suitable for gasoline and diesel generators of grade 1 to 3. 3. Easy to Install: Generator engine controller module panel is designed to be installed on the front panel. 4. Safety Protection: The generator engine controller module panel has generator protection, integrated alarm and warning. 5. Widely Used: Generator engine controller is mainly used in places where generators are needed, such as ships, electric power, communication, etc. Specification: Item Type: Generator Engine Controller Material: Flame Retardant High Temperature Resistance ABS(UL94 V0,110 C) Weight: Approx. 241g/8.5oz Size: Approx. 8x8x7cm / 3.1x3.1x2.8in Power Supply: 277 VAC (Ph N) Main Frequency: 50 60 Hz Type of Power System: TN or TT AC Generator Voltage: 277 VAC(Ph-N) AC Frequency: 0-100 Hz Measurement Category: CAT 2 Dc Power Supply Range: 9-33V DC 4.0-33V DC At the Same Time, the Current Consumption of Crank: 60 mADC Typical (Automatic Mode, Normal Power Supply) Up to 200mADC (Relay Output On) Total DC Current Output Rating: 10 ADC Total AC Current Output Level: 10 AAC Current Level of Each Output Terminal: 10 ARMS Operating Temperature Range:-20 celsius (-4 degrees F) to 70 celsius (158 degrees F) Storage Temperature Range:-30 celsius (-22 celsius ) to 80 celsius (176 degrees F) Maximum Humidity: 95percent Non Condensation. Installation Opening Size: Approx. 68x68mm / 2.68x2.68in (Minimum) Accuracy: Phase Voltage: 2percent +1V Generator Frequency: +/-0.5Hz Purpose: It is commonly used in ships, electric power, communication, and places where generators are needed.. Package List: 1 x Generator Engine Controller2 x Accessories1 x Manual Note: Please allow some error for manual measurement.
