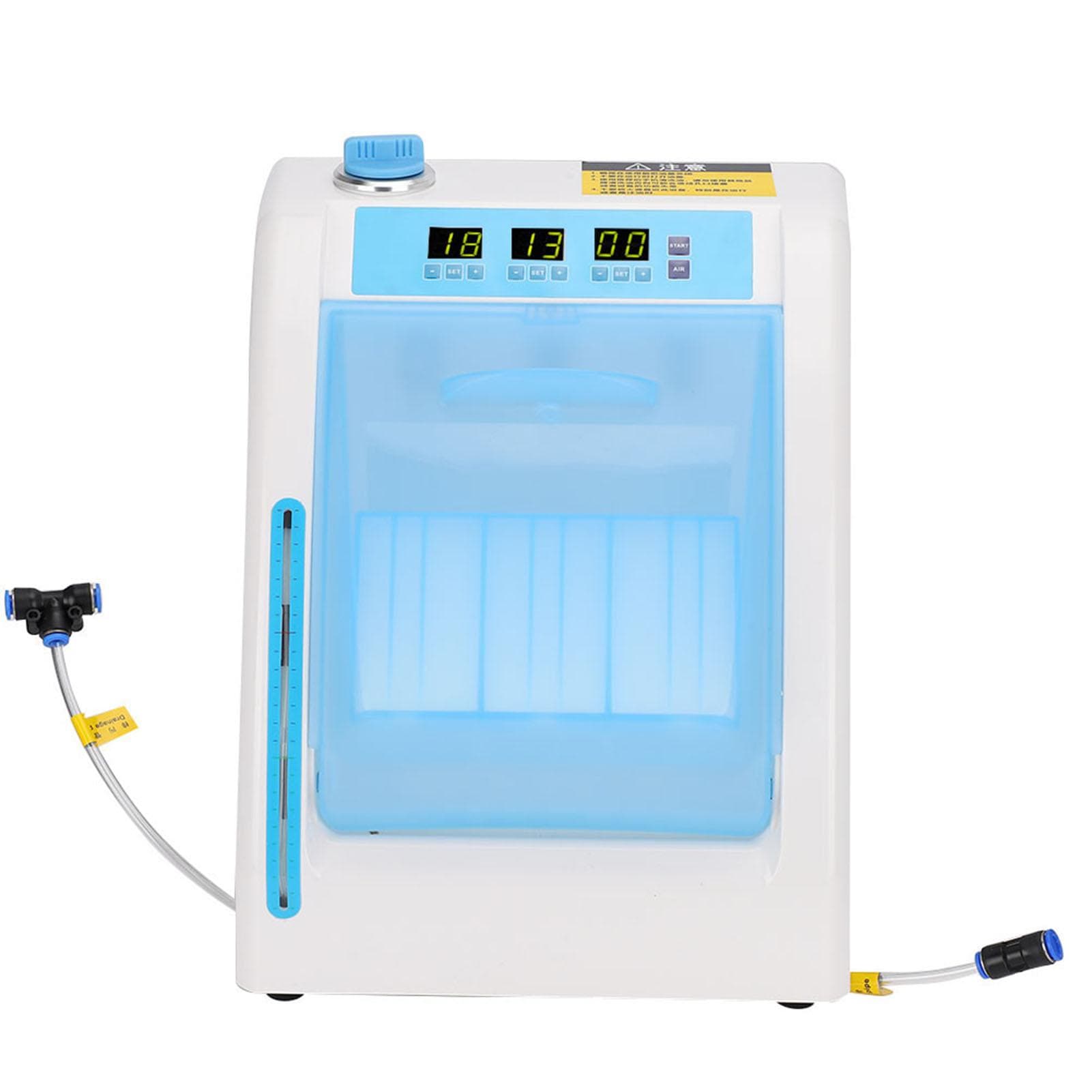

Dental Handpiece Maintenance System Cleaning Lubrication Machine InstrumentCN Plug 220V

About this item

• Feature: 1. Use of dental handpiece can improve the maintenance drive 40percent of life. 2. Support cleaning and refuel three dental handpieces at the same time (2pcs high speed and 1pc low speed). 3. Suitable for low speed and high speed handpiece of various brands. 4. With fuel injection time control function, can accurately control the oil filling time. The use of sealed doors effectively reduces oil mist diffusion to a minimum to ensure a cleaning working environment. 5. Specially designed air button can remove excess residual oil in the handpiece after fuel injection and cleaning. Adopt intelligent working mode, do not need to set the instrument every time. Specification: Condition: 100percent Brand New Item Type: Dental Handpiece Maintenance Material: Plastic Rated Voltage: AC110V220V, 50Hz60Hz Air Pressure: 4 kgcm² -8 kgcm² Rated Power: 40W Tank Capacity: 300ml Motor Parameters: Rated Voltage: 12VDC Rated Power: 6W RPM: 3000 RPM Volume: 300 ml Operating Temperature: 5 celsius -40 celsius Size: Approx. 300 x 230 x 360mm 11.8 x 9.1 x 14.2inUse Process: 1. Check before starting A: is there enough oil in the storage tank B: is the sealing ring of the tank cover in a fixed position? Is it tight? C: is the air source connected properly? D: is the power supply connected well E: check the air pressure range (2.2kgcsquare meters-2.5kgcsquare meters) 2. Turn on the power supply and oil the handpiece according to the panel keys according to your needs 3. Digital display control instructions A: press SET , SET the filling time of the corresponding interface, press the corresponding digital display tube twinkle when after click + or - to adjust filling time, filling time from 0 seconds to select 50 seconds (suggest SET up 20 s), if don t need to work into the corresponding joint after logo only need to press SET key twice, digital tube display as 00 , said the digital display tube corresponding interface does not work B: press START . After pressing this key, the oiler starts to work C: press AIR , which is the spare AIR blowing key. After pressing this key, the lubricator will start to blow AIR on the selected interface to clear the excess oil in the phone. Normally, no operation is required D: the oil quantity display bar in the lower left corner of the panel shows the current oil quantity in the storage tank. When the oil quantity is lower than the green line, the oil quantity should be added to the storage tank. The oil quantity should not exceed the red line E: the knob in the upper left corner of the panel is the tank cover. When the oiler is working, make sure that the sealing ring is on the knob and tighten the knob. Package List: 1 x Host 1 x Funnel 1 x Charging Cable 1 x Discharge Pipe 3 x Fast Connection 4 x Low Speed Connection Spare Sealing Ring1 x Spare Fuse Note: 1. The oiler must be connected to the air compressors2. Make sure the oil cap is closed before use3. Do not open the oil cap when using4. Do not put the fire source near the equipment, especially when the equipment is running or filling oil
