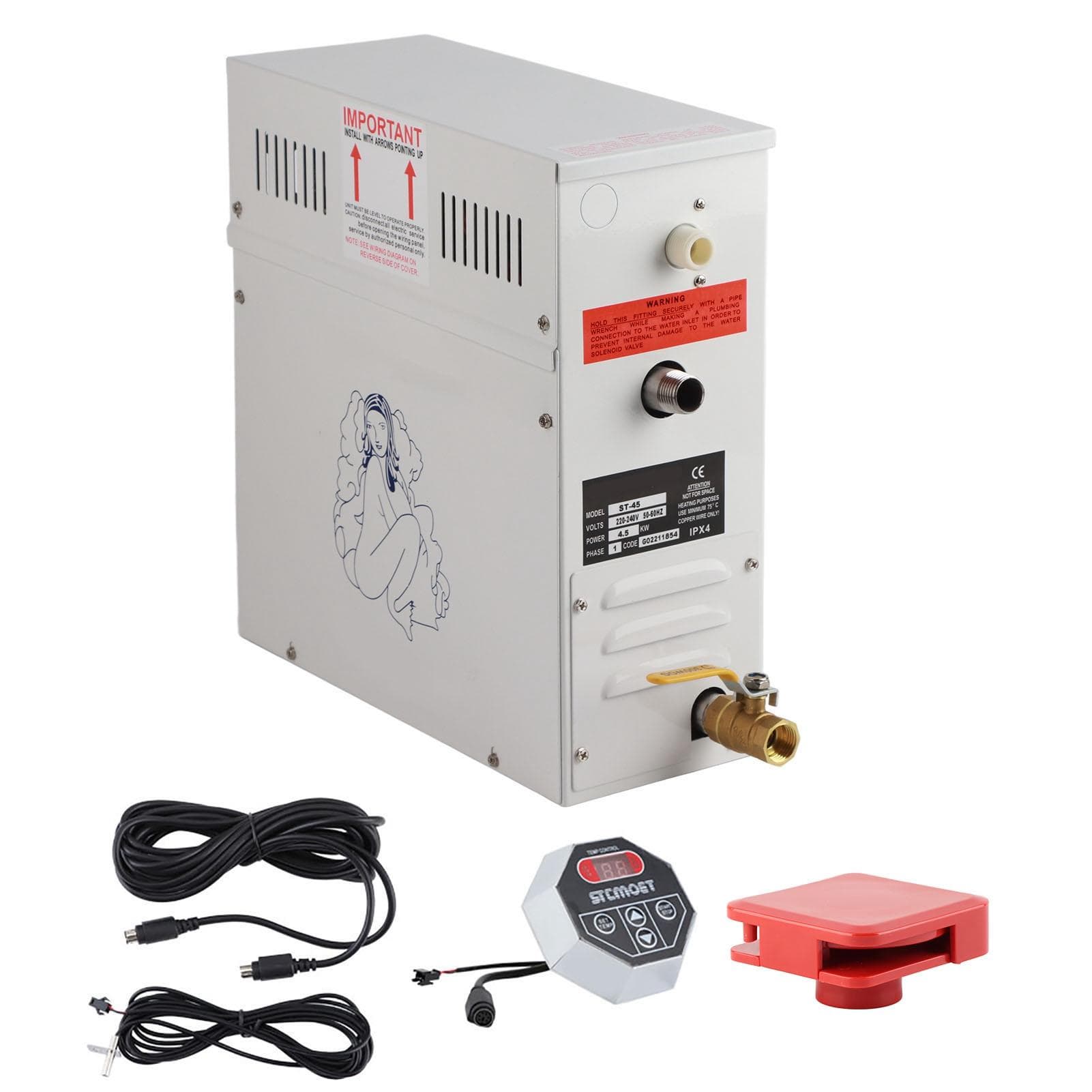

4.5KW 220V Steam Generator Shower Sauna Steam Bath Heater for Home Sauna SPA white

About this item

• Feature: 1. Can realize automatic temperature setting and control within the range of 35?55 degrees C(95?131 degrees F), and it can also realize automatic shutdown time within 1?60 minutes. 2. When the temperature rises to a certain height, it will automatically power off, so as not to cause leakage of electricity. 3. Apply numerical control technology, say goodbye to the traditional button, LED display temperature and time. 4. With enlarged water tank, 20percent bigger than ordinary water tank, steam effect is better. 5. It also features water shortage protection, over high temperature protection to prevent dry burning and over voltage protection. 6. 1.2 BAR pressure relief valve to prevent blocking of steam outlet and expansion of inner tank. Specification: Condition: 100percent Brand New Item Type: Steam Generator Material: Stainless Steel Color: As shown in the picture Size: Approx.320x130x335mm/12.6x5.1x13.2in Weight: Approx.7650g/269.8oz Volts/Phases/Ampere: 220/1/20.4 Steam Generator Installation: 1. The steam generator can be installed on the wall or on the ground, but it must be firm. The steam generator should be installed as close as possible to the bathtub or bath room. To fix the machine on a vertical wall, first loosen the two screws on the cover and remove the outer cover. There is a hole in the upper left and upper right of the cover for fixing the machine on the wall. Close the cover after fixing. In order to provide good maintenance services, the sign must be placed in a visible place, and the machine must also be installed in a place that is convenient for maintenance. 2. It is strictly forbidden to install the machine in outdoor, humid, high temperature places or places that may be frozen or corroded. At the same time, it is strictly prohibited to be placed near flammable and explosive places such as paint, diluent, gasoline, etc. It should be placed in a dry and ventilated place. 3. The steam generator can only be installed horizontally. Steam Generator Power Installation: 1. Confirm the correct power supply voltage (220V or 380V, see the label), please refer to the label on the machine or the information in the manual. 2. Requirements for installing circuit breakers in the circuit: The circuit breakers must be installed in strict accordance with Table 3. The machine must be reliably grounded. Install CFI (Earth Leakage Appliance) (International Electrotechnical Rules 210-8). 3. Choose the power cable that matches the local requirements. If you need to install an outlet, install it near the steam generator. Note that plugs and sockets require at least 250V and the required current load. After the wall sealing is completed, the wiring between the machine and the controller can be carried out. 4. Loosen the screws of the cover and lift the cover. Open the blind hole of the power inlet on the right side of the machine. Take the three-core cable (220V connection method) (two power supplies, one ground wire) or five-core cable (380V connection method) (4 power supplies, one ground wire) connected to the machine, and strip the 5CM long insulation layer . Connect the ground wire to the yellow-green multi-core wire in the machine, connect the two power wires to the terminals marked L L and N N or the four power wires to the standard Terminals with N , L1 , L2 and L3 are connected together. After the controller is installed, the machine can be turned on. Pay Attention To The Steam Bath: 1. The elderly, pregnant women or patients with heart disease, high blood pressure, diabetes or other unhealthy health reasons cannot use this device temporarily. Unless under the guidance of a physician. 2. It is strictly prohibited to smoke, exercise or drink alcoholic beverage during the steam bath. 3. If you feel unwell, nausea or sleepy, please withdraw from the steam room immediately. 4. Take care of your children at any time during the steam bath. 5. It is necessary to install an exhaust fan outside the steam room to allow air circulation. Before Use, Please Check According To The Following Terms: 1. The machine is properly grounded, and the diameter of the grounding wire is greater than 4mm2. 2. Whether the model of the machine is selected properly. If not selected properly, the matching steam room may not reach the preset temperature. 3. Choose the voltage connected to the steam generator (ie 220V or 380V). If the 220V steam generator is connected to the 380V voltage, it will damage the electric heating tube and the circuit board. If the 380V steam generator is connected to the 220V voltage, the power of the machine will be reduced by 25percent . The connection of the null line of the 380V steam generator can not be mistaken, that is, the null line cannot be connected to the phase line. Otherwise it will damage the circuit board and electric heating tube. 4. The steam generator must be installed vertically and horizontally. 5. Choose the correct cable and circuit breaker. . Package List: 1 x Steam Generator1 x Box of Accessories(1 x Digital Controller, 2 x Temperature Sensing Line, 1 x Accessory) Note: Warning:1. If the machine is installed in a place where it is difficult for the user to access it, the water supply valve must be installed in a place where it is easy to operate in an emergency.2. The withstand pressure of the solenoid valve is 2Kg/cm2. If the water pressure is too high, in order to avoid the damage of the solenoid valve, you can close the small inlet valve or install an inlet pressure reducing valve.3. Do not use saddle valve or needle valve on the inlet pipe. Before the final takeover, the water pipe should be dredged and rinsed.4. It is strictly forbidden to install blocking valves in steam pipes. It is strictly forbidden to have obstructions or bend U channels. Otherwise, condensate will be generated to block the flow of steam. The steam pipe should have a certain incline when horizontally arranged, so that the condensate can return to the steam generator or flow to the steam nozzle.5. The steam generator cannot be installed outdoors to prevent freezing in the machine. And it must be installed in a place convenient for maintenance. The machine should be installed horizontally and the direction of the arrows are upward, otherwise it cannot be turned on.6. The installation of pipes must be made of red copper pipe materials, and it is strictly forbidden to use plastic, acrylic, aluminum?plastic pipes or other similar materials as steam pipes. The allowable temperature of these materials can not reach 150 celsius and higher.7. The inlet of the steam pipe, all other inlets and gaps should be sealed to avoid steam leakage and damage to the machine and other objects.8. Draining the water in the water tank into the steam room may cause burns and damage the building materials used in the steam room.
