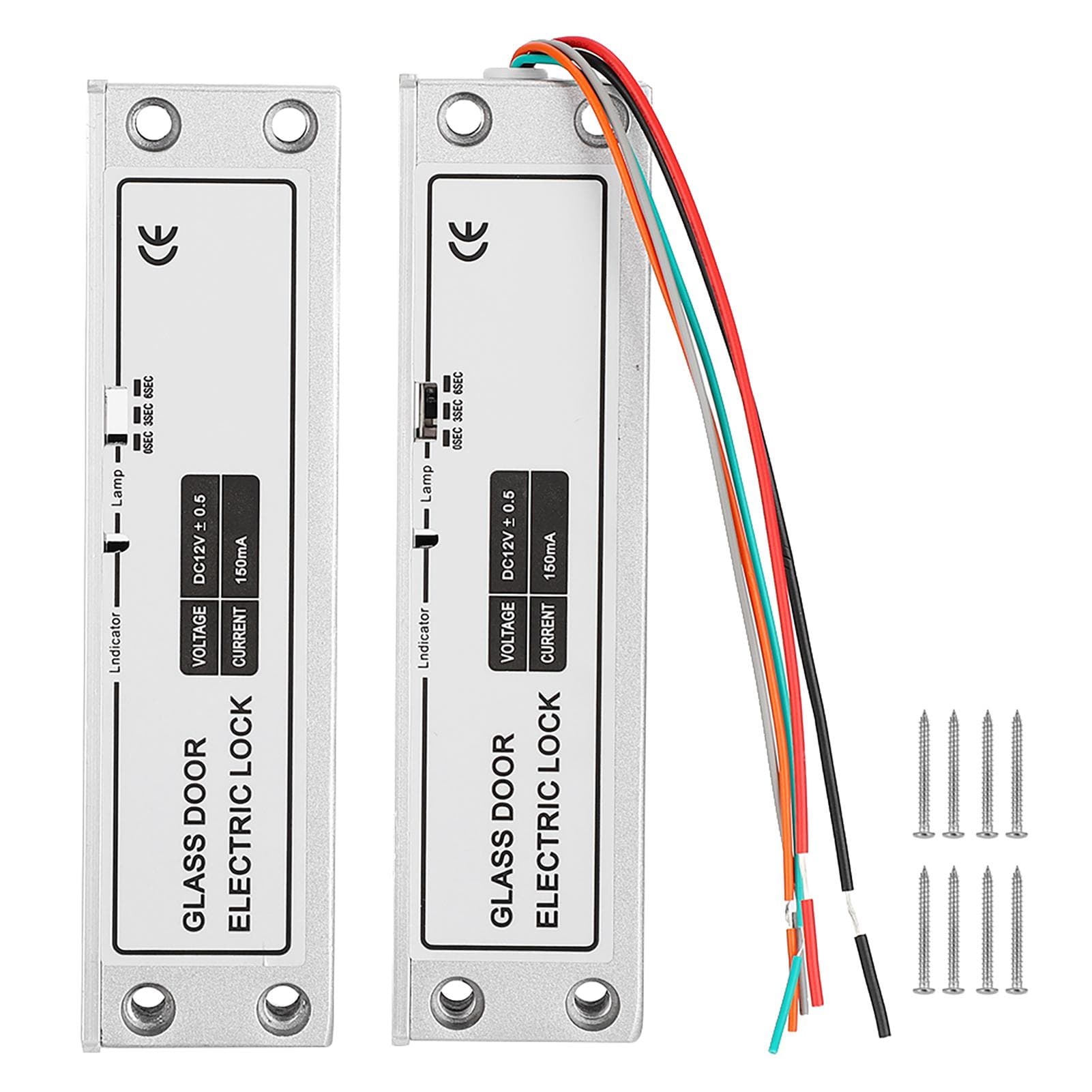

DC12V Electric Bolt Door Lock Mortise Surface Installation for Security Access Control System

About this item

• Feature: 1. Using direct current electromagnet as power, high torsion, lock body adopt aluminum alloy die casting molding, exquisite design, simple installation. 2. Long service life, adopt more than 500,000 times of on?site installation and use test. 3. Secure for using, the door will lock while supplied with power, and unlock without power. 4. It is widely used for flush glass door, flush wooden door, flush iron door and flush stainless steel door. 5. 3 kinds of delay time can be adjusted: 0?3?6 seconds, practical to use. Specification: Condition: 100percent Brand New Item Type: Electric Bolt Lock Material: Aluminum Alloy Color: As picture shown Voltage: DC12V Input Operating Current: 200mA Holding Force: 1000kg Installation: Surface Installation Locking Mode: Locked while supplied with power, induction type Delay Adjustment: 0-3-6s Adjustable Cable Core: 5 Cable Wiring Instructions: Red Wire: DC12V signal input wire Black Bire: GND ground wire Yellow Wire: NC Green Wire: NO White Wire: COM (signal common line) . Package List: 1 x Instruction1 x Electric Bolt Lock kit1 x Screw Pack
