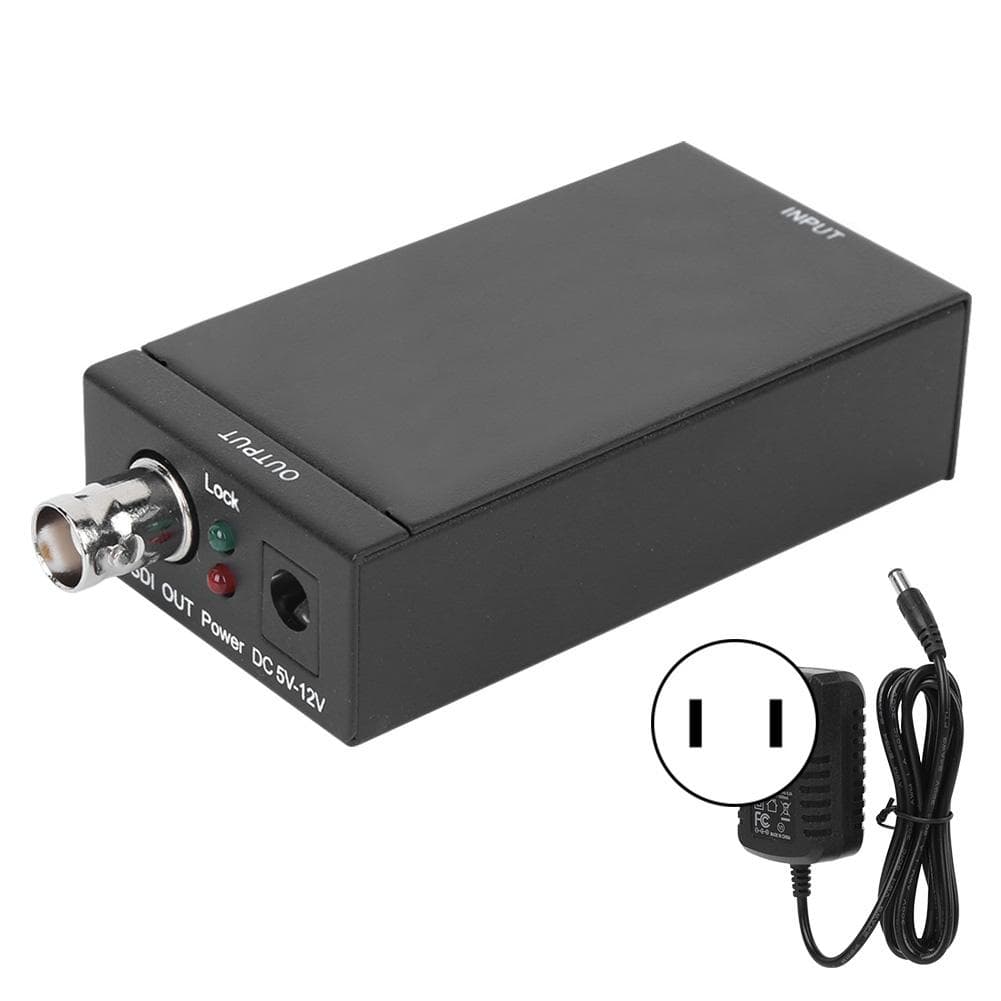

HDMI to SDI Converter Video to SDI Signal Adapter Extender Input Output 5V?1A

About this item

• Feature: 1. Compatible with multiple SDI signals: SD?SDI/HD?SDI/3G?SDI supports HDMI1.3 version, backward compatible with HDMI 1.2/1.1. 2. Industrial?grade power supply technology, support 5V?12V wide voltage, first?class output effect, fully meet the professional requirements of broadcasting rooms and non?linear editing systems, strong stability, and can work 24 hours a day. 3. 480i/576i to SD?SDI, SMPTE 259M?C, bit rate 270 Mbit/s, 720p/1080i converted to HD?SDI SMPTE 292M, bit rate 1.485 Gbit/s or 1.485/1.001 Gbit/s, 1080p converted to 3G?SDI SMPTE 424M/425M?AB, bit rate 2.970 Gbit/s, 2.970/1.001 Gbit/s. 4. Support SDI output distance up to 100 meters (3G?SDI), 200 meters (HD?SDI), or 300 meters (SD?SDI), multiple converters can be connected together, achieving long?distance signal extension. 5. Audio and image output synchronously, video playback is stable and effective to solve various instability factors, installation is simple and convenient, and one converter satisfies most of your choices. Specification: Condition: 100percent Brand New Item Type: HDMI to SDI Converter Material: Ferroalloy Color: As Pictures Shown Size: Approx. 80mm x 41mm x 25 mm / 3.1 x 1.6 x 1in Input Interface: HDMI Output Interface: BNC (SD-SDI/HD-SDI/3G-SDI) HDMI Input Resolution: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60 SDI Transmission Rate: 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s, 270 Mb/s Adaptable Power Supply Specification: DC5-12V ESD Human Body Protection Model: +/-8kv (Air Discharge), +/-4kv (Contact Discharge) Weight: Approx. 150g / 5.3oz Working Temperature: 0 degrees C-40 degrees C / 32 degrees F-104 degrees F Storage Temperature: -20 degrees C-60 degrees C / -4 degrees F-140 degrees F Relative Humidity: 20-90percent RH (No Condensation) Maximum Power Consumption: 5W . Package List: 1 x Power Adapter (Input AC100-240V 50/60hz 0.2A Output 5V/1A)1 x Manual 1 x Converter Host
