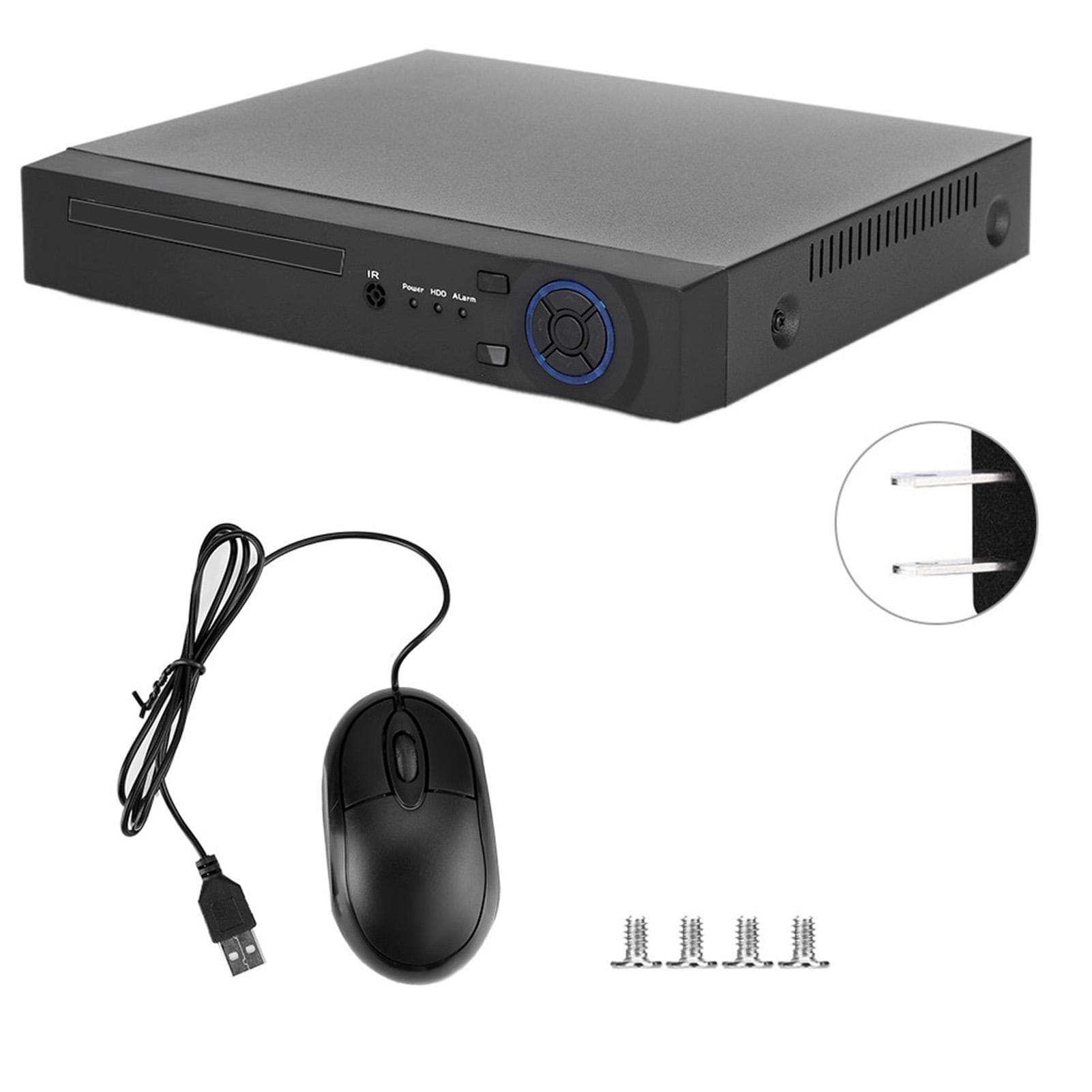

Professional 1080P 8CH AHD/IPC DVR Digital Video Recorder Support for ONVIF CCTV Security System

About this item

• Feature: 1. Support for VGA and for HDMI high?definition output display. 2. Support for ONVIF protocol to connect to third party devices (network mode). 3. Support multiple cloud technologies, realize networks penetration, front and back end docking, and push alarm information to mobile phones. 4. Supporting Web, CMS, central platform management software for MYEYE, and providing SDK development. 5. Support remote monitoring of various mobile phones and ipads(for ios, for android). 6. Remote access, with its own domain name service function (ARSP), one?click to enable remote monitoring. 7. Standard coaxial control, easy to achieve the back end control front end. 8. Support AHD / TVI / CVI / CVBS / PVI / IP signal 6?in?1 access. 9. The networks mode supports Full Netcom , compatible with all major brands of IPC, crossed?segment, and one?key networking with the same IP. Specification: Condition: Brand New Item Type: Digital Video Recorder Material: Metal Color: As picture System: Main Processors: Industrial-grade Embedded Chip Hi3520D V300 Video: Codec Standard: H.265 Surveillance Quality: VGA, for HDMI HD Preview Ability: 8x1080N Coding Ability: 8x1080N@12fps Decoding Capability: 8x1080N@12fps Mode Input: Coaxial: 8x1080N;4x1080P Mixed: 2x1080P(coaxial) + 2x1080P (networks); 4x1080N(coaxial)+4x960P(networks) Networks: 16x1080P; 9x1080P; 16x960P; 4x5M Motion Detection: 192 (16 x 12) Detection Areas Can Be Set for Each Screen; Multi-level Sensitivity Can Be Set Degrees (limited to Local Channels) Audio: Audio Compression: G.711A Intercom: Support Video: Recording Method: Manual> Alarm> Dynamic Detection> Timing Video Query: Time Point Search, Calendar Search, Event Search, Channel Search Video Storage: Local Hard Disk, Networks Video Backup: Networks Backup, USB Mobile Hard Disk, USB Burning, SATA Burning Interface: Video Input: 8 Channels BNC Video Output: 1 Channel VGA, 1 Channel for HDMI Loop-Through Output: No Audio I / O: 1(4)/1 Alarm I / O: 0/0 Network Interface: RJ45 10M/100M Adaptive Ethernet Port Expand Interface: 2 USB Interfaces Hard Disk Interface: 1 SATA Interface (Each Supports Up to 8T) Power Supply: 12V/2A Working Environment: Temperature 0 celsius -+ 55 celsius , Humidity: 10percent -90percent , Atmospheric Pressure: 86kpa-106kpa. Package List: 1 x Digital Video Recorder1 x Power Supply1 x Mouse1 x Instruction4 x Mounting Screws
