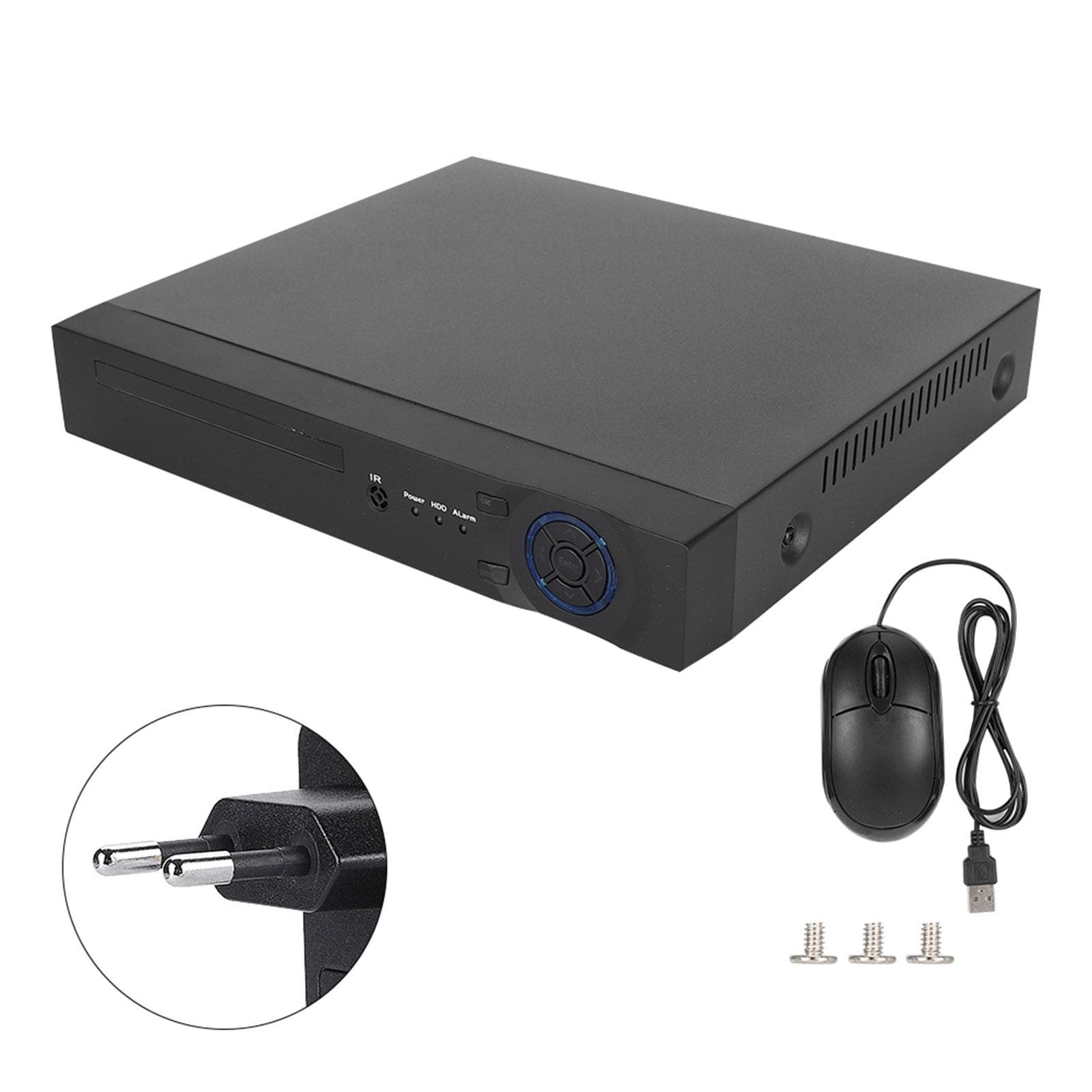

6?in?1 Coaxial NVR Network Video Hard Disk Recorder AHD/TVI/CVI/CVBS/IP 110?240V

About this item

• Feature: 1. Support VGA, High Definition Multimedia Interface high-definition output display; support. AHD/TVI/CVI/CVBS/IP signal 5-in-1 access. 2. Support a variety of cloud technologies, network penetration, front?end docking, alarm information pushed to mobile phones, etc. 3. Supporting Web, CMS, central platform management software MYEYE, providing SDK development. 4. Support all kinds of mobile phones, pad remote monitoring (for IOS, for Android). 5. Remote access, with domain name service function (ARSP), one-click enable remote monitoring. 6. Standard coaxial control for easy back-end control front end. 7. Network mode supports full Netcom , compatible with all major brands IPC, cross-network segment, same IP one-button network. Specification: Item Type: NVR Color: Black Material: Metal Main Processor: Industrial Embedded Chip hi3520d V300 Codec Standard: H.264 Monitoring Quality: VGA, High Definition Multimedia Interface HD Preview Capacity: 4 x 1080P (5 in 1) Coding Capacity: 4 x 1080P (5 in 1) Decoding Capacity: 4 x 1080P @ 15fps (5 in 1) Coaxial: 4 x1080P Mixing: 2 x 1080P (coaxial) + 2 x 1080P (network); 4 x 1080N (coaxial) + 4 x 960P (network); Network: 16 x 1080P; 9 x 1080P; 16 x 960P; 4 x 5M Motion Detection: 192 (16*12) detection areas can be set per screen; multi-level sensitivity can be set (local channel only) Audio Compression: G.711A Intercom: Support Recording Mode: Manual > Alarm > Dynamic Detection > Timing Local Playback: 1 Way 4M Video Query: Time Point Search, Calendar Search, Event Search, Channel Search Video Saving: Local Hard Disk, Network Backup Method: Network Backup, USB Mobile Hard Disk, Usb Burning, Sata Burning Video Intput: 4-Way BNC Video Output: 1 Way VGA, 1 Way High Definition Multimedia Interface Audio: I/O: 1/1 Alarm: I/O::0/0 Network Interface: 1 RJ45 10m/100m Adaptive Ethernet Port Expanded Interface: 2 USB 2.0 Interfaces Hard Disk Interface: 1 Sata Interface (maximum 8T Each) Power: 12V/2A Working Environment Temperature: 0 degrees C-+55 degrees C Humidity: 10percent -90percent RH Atmospheric Pressure: 86kpa-106kpa. Package List: 1 x NVR1 x Mouse1 x Power Supply1 x Instruction Manual3 x Screw Note:
