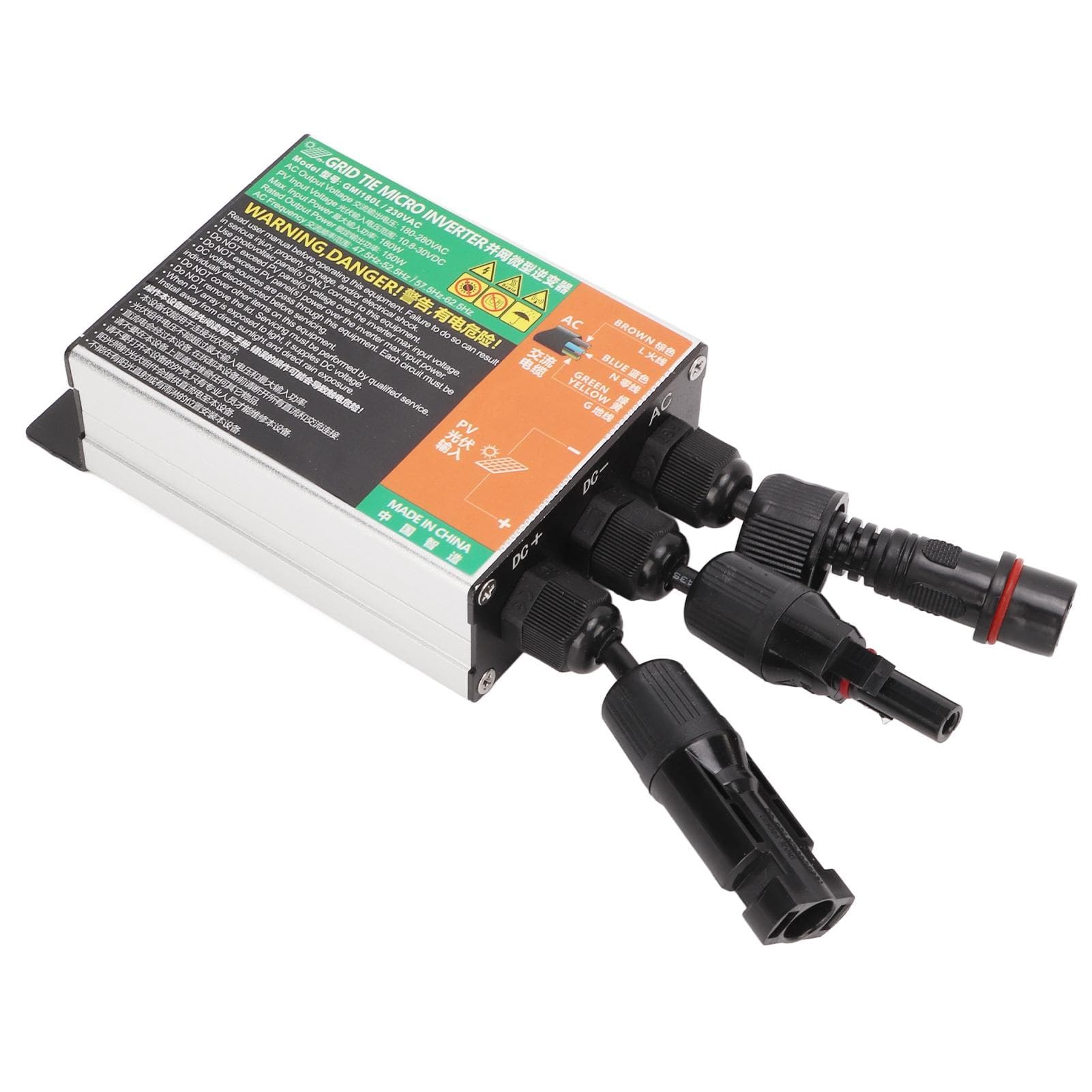

Solar Grid Tie Inverter Pure Sine Wave 180W 230V 10.8V to 30V DC Input to AC 180V to 280V Output

About this item

• Feature: 1. 0.2 to 1.6KW: This pure sine wave solar grid tie inverter converts the DC of the solar panel into AC. The capacity is 0.2 to 1.6KW. 2. DC to AC: This grid tie micro inverter supports 10.8V to 30V DC Input to AC 180V to 280V Output. 3. Please Note: This grid tie micro inverter is often used in small solar systems, and it can only be used with solar panels and cannot be used with batteries. 4. Multiple Protection: This solar grid tie inverter has islanding protection, voltage protection, frequency protection, temperature protection, current protection, etc. 5. Long Service Life: This solar micro inverter is made of premium aluminium alloy, which ensures long service life. Specification: Item Type: Solar Grid Tie Inverter Material: Aluminium Alloy Inverter Box Size: Approx. 10 x 7.5 x 3.5cm 3.94 x 2.95 x 1.38in Output Voltage Waveform: Sine Wave Photovoltaic Output (DC): Input Connector Quantity: 1 Set MPPT Voltage Range: 12.5V to 25V Operating Voltage Range: 10.8V to 30V Maximum Input Voltage: 30V Start Voltage: 10.8V Maximum Input Power: 180W Maximum Input Current: 9.37A AC Output (AC): Single Phase Grid Type: 230V Rated Output Power: 150W Maximum Output Power: 160W Rated AC Current: 230V: 0.65A Rated AC Voltage: 230V AC Output Voltage Range: 230V AC: 180V to 280V Rated Ac Frequency:: 5060Hz Output Frequency Range: 50Hz: 47.5 to 52.5Hz60Hz: 57.5 to 62.5Hz Output Power Factor: >0.99 Efficiency: The Highest Conversion Efficiency: 92.5percent CEC Weighted Efficiency: 230V AC: 91.5percent MPPT: Tracking Efficiency: 99.9percent Night Loss: <700mW Temperature Range: Minus 40 celsius to 65 celsius (Environment Temperature)Minus 40 celsius to +85 celsius (Storage Temperature) Waterproof Grade: IP55 Communication: None Protection Mode: Islanding Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, Etc. Comprehensive Grounding: the PE End of the AC Cable is the Grounding Wire of the Device, and There is No Other Grounding Port.. Package List: 1 x Solar Grid Tie Inverter1 x User Manual1 x AC Cable Note: This device can only be connected to solar photovoltaic modules as an input sourceThis equipment is a grid connected power generation equipment, it must be connected to the power grid and can generate electricity normally only when the power grid is working properly. When the power grid fails, the equipment will also stop generating electricity.Before use, please make sure that the open circuit voltage VOC and working voltage VMP of the photovoltaic module are in line with the input voltage and working voltage range of this equipmentBefore use, please ensure that the maximum output power of the photovoltaic modules does not exceed the maximum input power of the deviceThe DC power of the photovoltaic modules will pass through this equipment, each circuit must be disconnected separately before maintenance or disassemblyPlease do not cover any other objects on this device, please do not open the case, repair this device needs to be carried out by professionalsWhen photovoltaic modules are connected to this equipment and exposed to sunlight, they will supply DC power to this equipment, please pay attention to safetyPlease do not install the device in a place where it can be exposed to direct sunlight or may be covered by rain and snow (such as the gap between the two components should be avoided)0.2 to 1.6KW: This pure sine wave solar grid tie inverter converts the DC of the solar panel into AC. The capacity is 0.2 to 1.6KW. DC to AC: This grid tie micro inverter supports 10.8V to 30V DC Input to AC 180V to 280V Output. Please Note: This grid tie micro inverter is often used in small solar systems, and it can only be used with solar panels and cannot be used with batteries. Multiple Protection: This solar grid tie inverter has islanding protection, voltage protection, frequency protection, temperature protection, current protection, etc. Long Service Life: This solar micro inverter is made of premium aluminium alloy, which ensures long service life.
