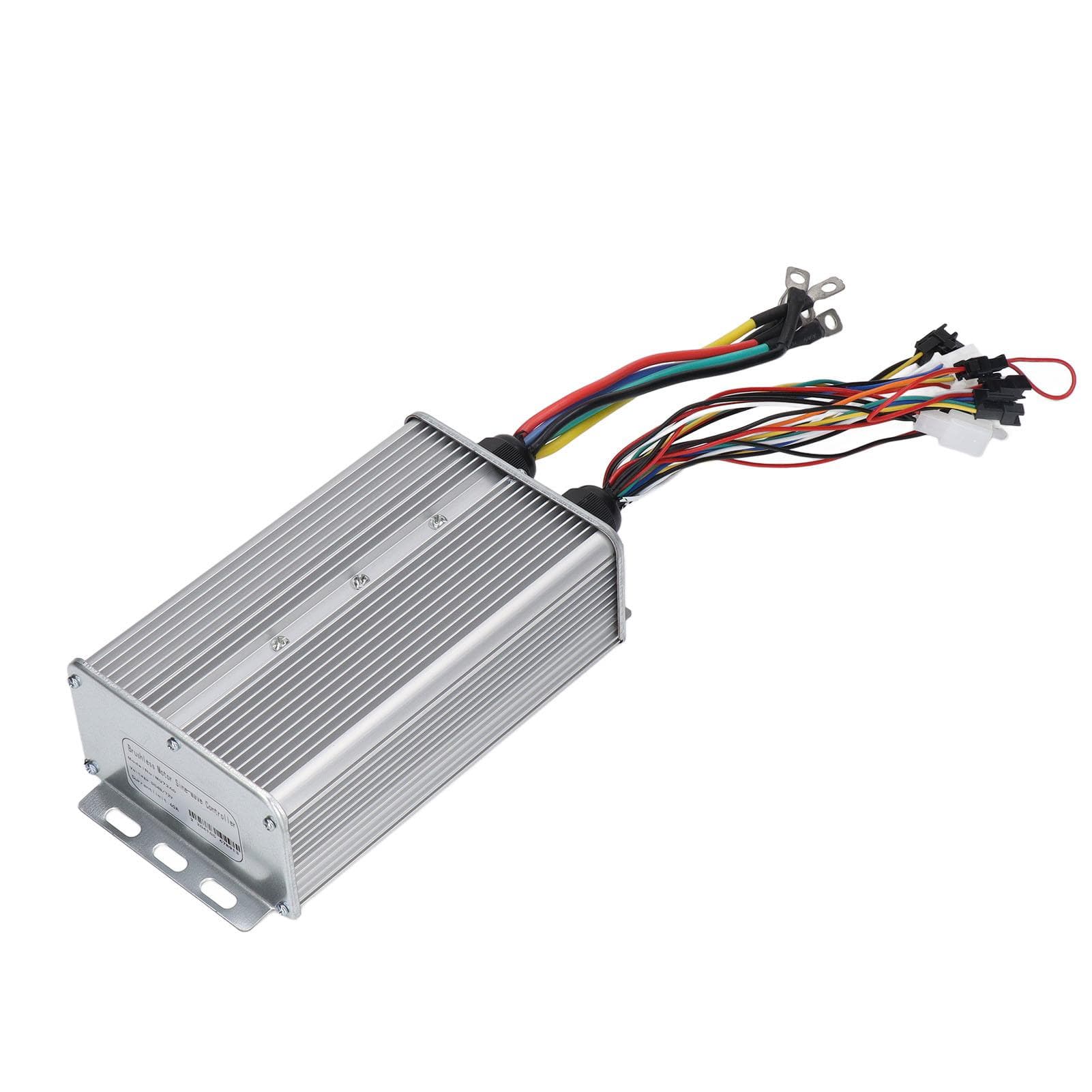

48V 72V 60A Electric Bike Controller Dual Mode 18 Tube Sine Wave Controller with SM Connector
Fishine|SKU 2716220177811vdfdswv
About this item
- Feature: 1. Aluminum Alloy Controller Shell: The controller shell is made of aluminum alloy material with grooves, and the good heat dissipation can protect the wires from damage and avoid thermal overload. 2. Stable Performance: The controller board is very stable, with 18 stable moss tubes, which can withstand up to 60A for short periods of time. 3. High Temperature Protection: When the temperature is too high, the controller will cut off the current to protect the safety of the entire system. 4. Matching Voltage and Motor: Matching voltage 48V 52V 60V 72V, matching motor 1000W 1500W 2000W 3000W, match with Hall motor and without Hall motor. 5. Self Learning Function: 48V 72V electric bicycle controller has a self?learning function. The controller is the No. 2 communication protocol. Specification: Item Type: Electric Bike Controller Material: Aluminum Alloy Color: As Pictures Shown Weight: Approx. 1100g 2.4lb Rated Voltage: DC 48V, 72V Maximum Current: 60A Rated Current: 30A Speed Setting: 14.2V Brake Input: Low Level Controller Box Size: Approx. 17.2x10.8x6cm 6.8x4.3x2.4in. Package List: 1 x Controller1 x Manual Note: Must match the NO.2 communication protocol display meter usedAluminum Alloy Controller Shell: The controller shell is made of aluminum alloy material with grooves, and the good heat dissipation can protect the wires from damage and avoid thermal overload. Stable Performance: The controller board is very stable, with 18 stable moss tubes, which can withstand up to 60A for short periods of time. High Temperature Protection: When the temperature is too high, the controller will cut off the current to protect the safety of the entire system. Matching Voltage and Motor: Matching voltage 48V 52V 60V 72V, matching motor 1000W 1500W 2000W 3000W, match with Hall motor and without Hall motor. Self Learning Function: 48V 72V electric bicycle controller has a self?learning function. The controller is the No. 2 communication protocol.
