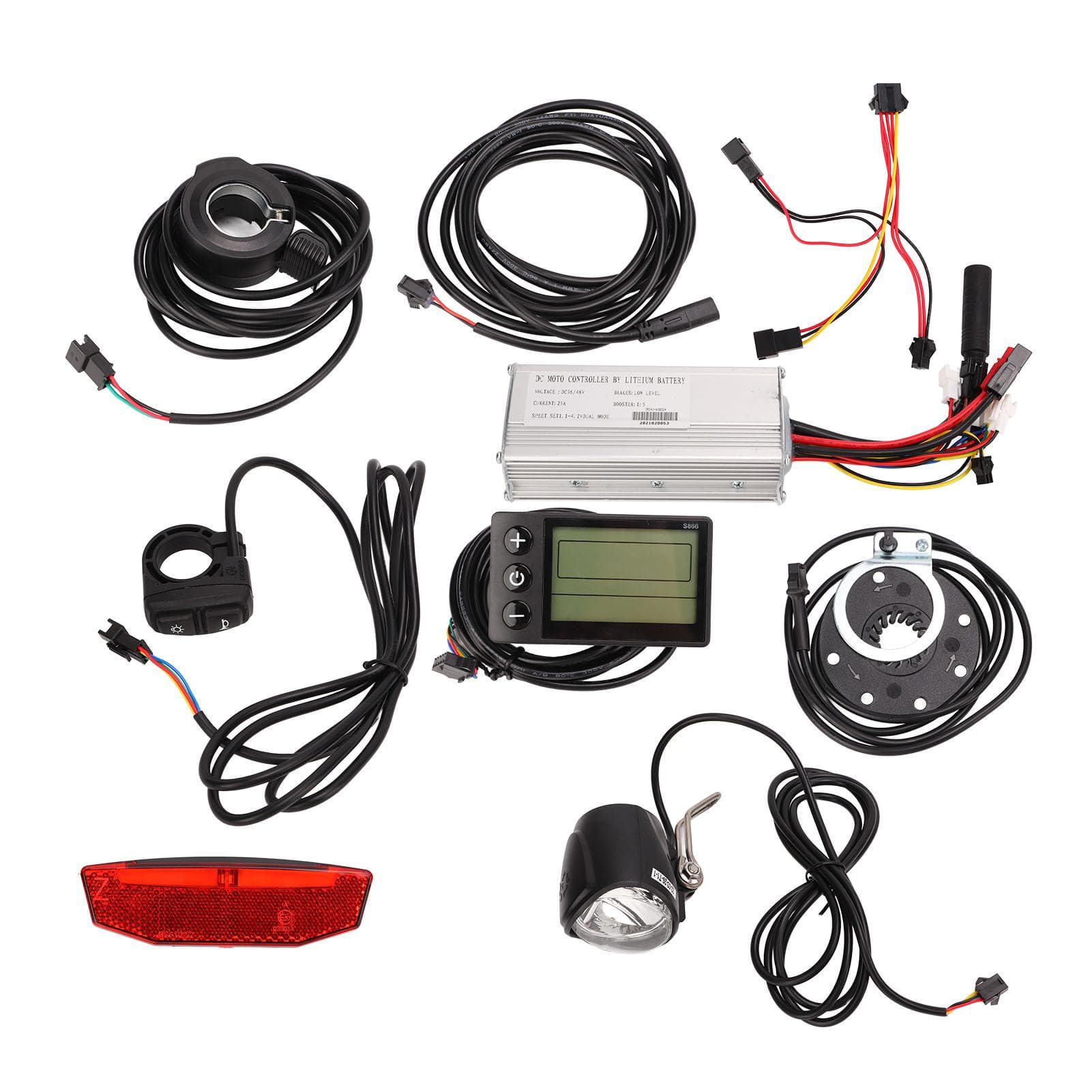

36V 48V 25A Controller Kit S866 Display Front Rear Lights 2 in 1 Switch Configuration for 750W

About this item

• Feature: 1. Controller Housing: The controller housing is made of metal with a grooved design, which protects the internal circuits from thermal overload due to good heat dissipation. 2. S866 Display: The S866 display is made of ABS material, which is light, strong and durable, has fine workmanship, good toughness and waterproof performance, providing better protection for the internal circuit. 3. Multifunctional S866 Display: The S866 display has a variety of functions, when riding a bike, the product will display many useful data on your bike, such as switch buttons, light switches, battery level display and other functions, a display can keep you informed of the situation. 4. Scope of Applicatipn: 25A controller small kit is suitable for 750W motor, mainly used for DIY electric bikes, electric scooters, folding bikes, etc. Easy to maintain. The lithium battery modification of the bike greatly improves the riding fun and is suitable for cyclists who like challenges. 5. Package List: Includes controller; S866 display, accelerator dial; power assist sensor wiring; power assist sensor sheet, headlight, tail light, horn light button, and four in one connection cable. There are many kinds of sets, suitable for your own DIY modification, to meet all needs. Specification: Item Type: 36V 48V 25A Controller S866 Display Kit Material: ABS, Rubber, Aluminum Alloy, Metal Color: As Pictures Shown Weight: Approx. 867g 30.6oz Application: Applicable to 750W Motor, Matching Communication Protocol is UART (commonly known as No. 2 communication protocol) Controller Size: Approx. 120x53x33mm 4.7x2.1x1.3in Controller Rated Voltage: DC 36V, 48V Controller Current: 25A Controller Speed Setting: 1.14.2V Supercharger: 1:5 Applicable Motor Power: 750W Brake: Input Low Level Controller Line Definition: 1. Black Single Wire: Motor (9pin) 2. Black and Red Single Wire: 2 Battery Power 3. Black, Yellow and Brown Wire: Power Assist Sensor (3pin) 4. Black, White and Red Wire: Throttle (3pin) 5. Black and Yellow Wire: 2 Brake (2pin) 6. Black and Red Wire: Headlight (2pin) 7. Black and Red Wire: Rearlight (2pin) 8. Multi Color Wire: Display (5pin). Package List: 1 x Controller1 x S866 Display (Including Bracket, Line)1 x Throttle Dial (Wire Included)1 x 8C Power Assist Sensor Wiring1 x 8C Power Assist Sensor Sheet1 x Headlight (Wire Included)1 x Tail Light1 x Tail Light Wire1 x Horn Light Button (Wire Included)1 x Four in One Cable2 x Manual Note: 1.These accessories have standard cables for taillights and headlights, so you can buy them with confidence.2.Note that the matching communication protocol is the product used by UART (communication protocol 2)Controller Housing: The controller housing is made of metal with a grooved design, which protects the internal circuits from thermal overload due to good heat dissipation. S866 Display: The S866 display is made of ABS material, which is light, strong and durable, has fine workmanship, good toughness and waterproof performance, providing better protection for the internal circuit. Multifunctional S866 Display: The S866 display has a variety of functions, when riding a bike, the product will display many useful data on your bike, such as switch buttons, light switches, battery level display and other functions, a display can keep y Scope of Applicatipn: 25A controller small kit is suitable for 750W motor, mainly used for DIY electric bikes, electric scooters, folding bikes, etc. Easy to maintain. The lithium battery modification of the bike greatly improves the riding fun and is su Package List: Includes controller; S866 display, accelerator dial; power assist sensor wiring; power assist sensor sheet, headlight, tail light, horn light button, and four in one connection cable. There are many kinds of sets, suitable for your own DIY
