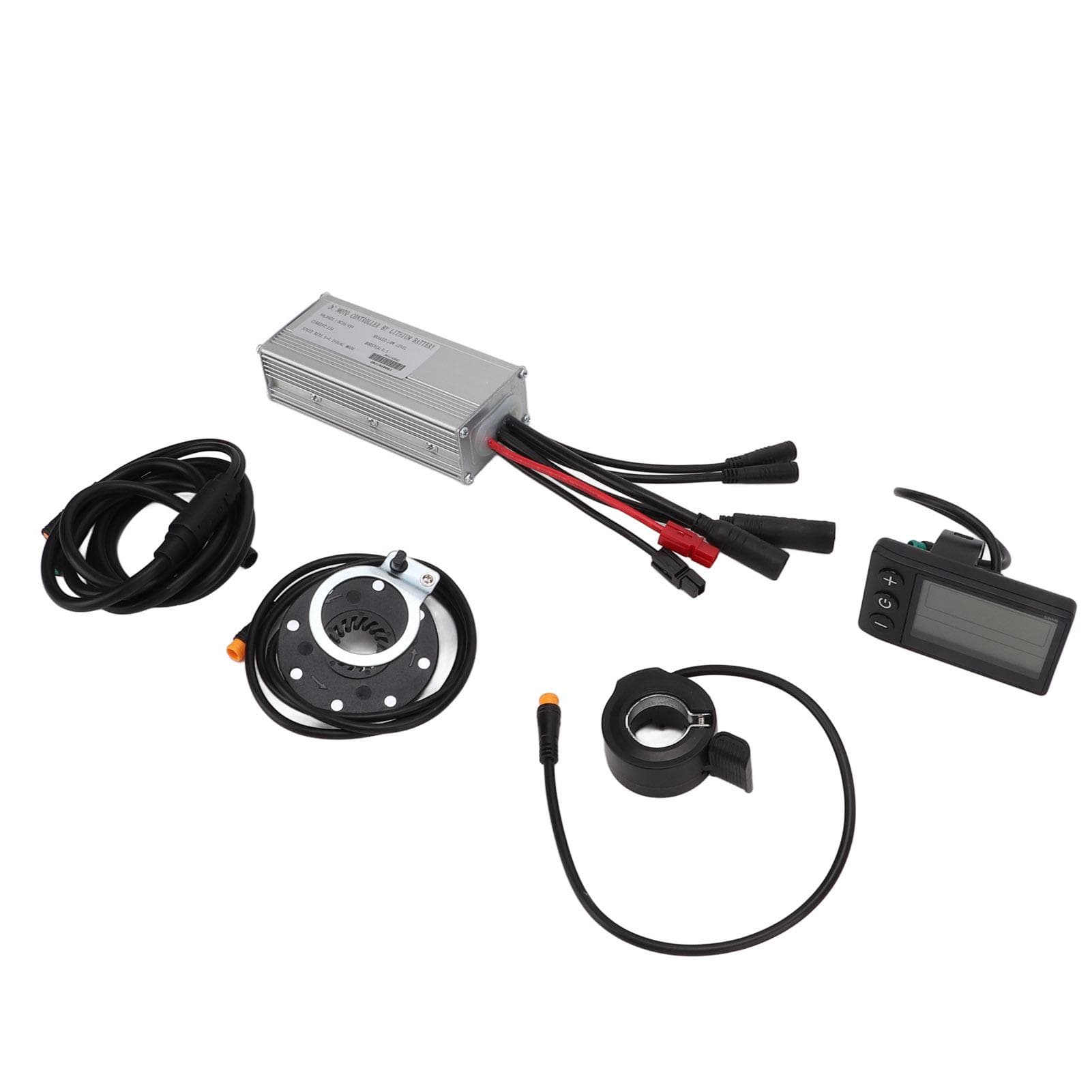

Electric Bicycle Modification Kit Waterproof 22A Controller S866 LCD Electric Bike Conversion Kit

About this item

• Feature: 1. [Including] This electric bicycle modification kit including 22A controller, S866 instrument, 130X thumb throttle, 8C power assist sensor and 1 to 2 connecting line. 2. [Good Heat Dissipation] The controller housing is made of high quality metal with a grooved design, which protects the internal circuits from thermal overload due to good heat dissipation, to meet your various need. 3. [Waterproof] The LCD instrument is made of high quality ABS material, which is light, strong and durable, with fine workmanship, good toughness and waterproof performance, providing better protection for the internal circuit and making it more durable. 4. [Multifunctional] The LCD S866 display instrument has a variety of functions, and the LCD backlight display can clearly display the status and data; when riding a bicycle, the product will display many useful data on your bicycle, such as battery display, speed display, battery indicator, fault indicator , total mileage, single mileage, current speed, average speed, maximum speed, gear display, etc. 5. [Widely Use] 22A controller kit is suitable for 500W motors, which is mainly used for DIY electric bicycles, electric vehicles, electric scooters, folding vehicles, easy to maintain, bicycle lithium battery modification greatly improves the cycling fun. Specification: Item Type: Electric Bike Conversion Kit Material: Aluminum alloy+ABS plastic Controller Box Size: Approx. 120 x 53 x 32 mm 4.7 x 2.1 x 1.3 in Instrument Size: Approx. 80 x 48 mm 3.2 x 1.9 in (manual measurement allowable error) Controller Rated Voltage: DC 36V48V Controller Maximum Current: 22A Controller Speed Setting: 14.2V Controller Brake Input: Low level BOOSTER: 1:5 Applicable Motor Power: 500W Connector Type: Full waterproof connector Weight: Approx. 640g 22.6oz Controller Line Definition: 1. Red, black single wire: power wire 2. Black single large wire (9pin): motor wire 3. Black single wire (9pin): 1 To 2 wire 4. Black single wire (3pin): power assist sensor wire 5. Black single wire (2pin): light wire LCD S866 Instrument Working Voltage: DC 24V, 36V, 48V, 60V compatible (meter selection setting)LCD S866 Instrument Function Description:1. Display function: speed display, battery indicator, fault indicator, total mileage, single mileage 2. Control setting functions: power switch control, wheel Diameter setting, idle speed automatic sleep time setting, backlight brightness setting, startup mode setting, drive mode setting, voltage level setting, controller limit value setting 3. Communication protocol: UART Display all the contents of the screen (full display for 1s after booting) 3.1 Display of battery power and BMS remaining power 3.2 Multifunction display area: total mileage ODO, single mileage TRIP (unit: mile, km), single boot time TIME, battery voltage VOL, DST: battery life 3.3 Speed display area AVG: Average speed, MAX: Maximum speed, SPEED: Current speed: unit Mph kmh The speed signal is taken from the Hall signal in the motor and sent to the meter by the controller. (The time of a single Hall cycle, unit: 1MS) The instrument will calculate the real speed according to the wheel Diameter and signal data (the number of magnets required by the motor Hall) 3.4 Vehicle power gear adjustment, 09 digital display and gear bar display.. Package List: 1 x Controller1 x Panel1 x Panel Manual1 x Thumb Throttle 1 x Power Assist Sensor1 x Controller Wiring Manual 1 x 1 To 2 Connecting Line Note: Note that the retrofit kit must be a fully waterproof kit[Including] This electric bicycle modification kit including 22A controller, S866 instrument, 130X thumb throttle, 8C power assist sensor and 1 to 2 connecting line. [Good Heat Dissipation] The controller housing is made of high quality metal with a grooved design, which protects the internal circuits from thermal overload due to good heat dissipation, to meet your various need. [Waterproof] The LCD instrument is made of high quality ABS material, which is light, strong and durable, with fine workmanship, good toughness and waterproof performance, providing better protection for the internal circuit and making it more durable. [Multifunctional] The LCD S866 display instrument has a variety of functions, and the LCD backlight display can clearly display the status and data; when riding a bicycle, the product will display many useful data on your bicycle, such as battery display [Widely Use] 22A controller kit is suitable for 500W motors, which is mainly used for DIY electric bicycles, electric vehicles, electric scooters, folding vehicles, easy to maintain, bicycle lithium battery modification greatly improves the cycling fun.
