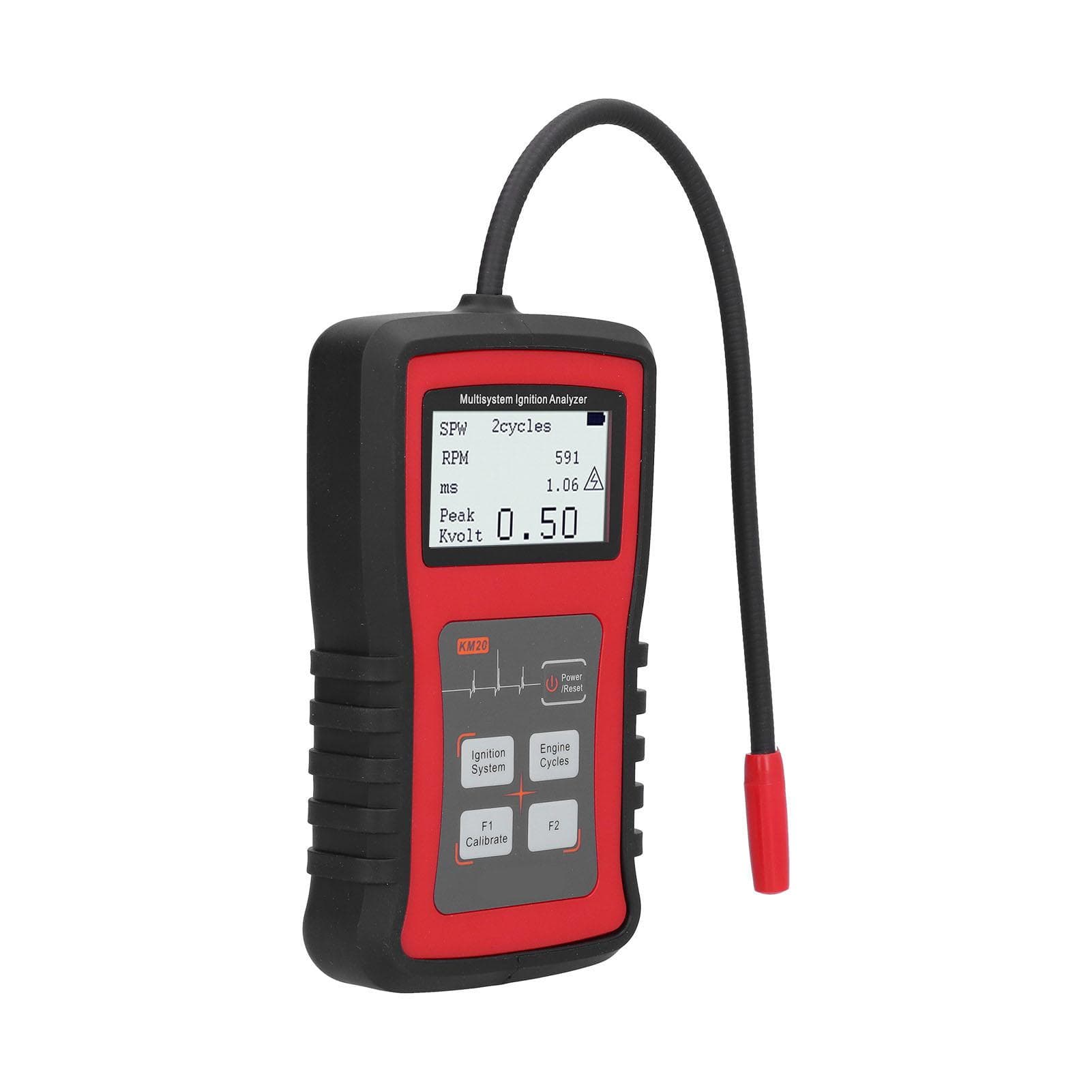

24W Ignition Analyzer MultiSystem LCD Display RPM Measurement Spark Plug Tester

About this item

• Feature: 1. With special features: capacitive pickup; flexible probe; protective rubber shell; LCD display; power ON OFF RESET button; secondary function acquisition key; push button ignition system; main function calibrate button 9. motor cycles button. 2. Can be used to measure RPM, spark volt measurements, measures candle burning time. Using advanced microcontroller technology, no ground wire connections required. 3. Has minimum and maximum functions (for COP and SPW mode), maintains a continuous record of the minimum and maximum readings of the currently selected function. 4. With spark calibration function (for COP mode only), requires the user to calibrate the tools in order to measure spark kvolt in the coil on the spark plug and the coil near the ignition systems plug. 5. The analyzer can be used to measure each speed of the automobile engine ignition cylinder, high voltage ignition coil ignition coil voltage and the injection time of each cylinder. It is induction type, without disassembling any stroke. Specification: Item Type: Ignition Analyzer Material: ABSDescription: The analyzer can be used to measure each speed of the automobile engine ignition cylinder, high voltage ignition coil ignition coil voltage and the injection time of each cylinder. It is induction type, without disassembling any stroke. You can check the general distributor type SPW and ignition coil type COP. It can dynamically display the parameters and display the maximum and minimum range Power: 24W Special Features: Spark Plug Tester Advantage: No Ground Wire Connections RequiredFunction 1: Measures Rpm Function 2: Measures Spark Volt Spark Burn Time Special Function: Advanced Microcontroller Technology Code Reader Functions: Turn off Mil, Engine Data Analyse, Live Data, Vin Im Readness Hardware Version: Ignition TesterBattery: 9V alkaline battery, 6LR61, 650mAh, shipped with battery Function: RPM: 200 to 19999 RPM 2 and 4 cycles and DIS; Accuracy: 0.5percent +1 LSD Spark KV:0 to 50 Kv; Repeatability: 3percent +1 LSD Spark burn time: 0 to 10 ms; Accuracy: +0.1ms Input Characteristics: Input Impedance: 100K Ohm + 1.5 nF (Minimum). Input Protection: +42 VDC Max. Functions: 1. Minimum and Maximum functions (For COP and SPW mode) The MST1000 maintains a continuous record of the minimum and maximum readings of the currently selected function. To view the Minimum and Maximum readings of the main display, if it is not already selected press Secondary Function Capture momentarily the Button. To reset the Minimum and Maximum readings, press the Power ON OFF Reset button momentarily. These values are also remainder when turning to 0 2. Kvolt spark calibration function (For COP mode only) It requires the user to calibrate the tools in order to measure spark kvolt in the coil on the spark plug and the coil near the ignition systems plug.This calibration uses the measurement values obtained during the procedure to find the optimal measurement parameters or a particular type of, ignition module, and compensates for differences in waveform and signal strength.Once the KM20 has been calibrated on one of the engine ignition modules being diagnosed, all subsequent KVOLT spark measurement will be relative to the calibration value. 3.Display Test Result. Package List: 1 x Ignition Analyzer1 x 9V Battery1 x User Manual1 x Storage BoxWith special features: capacitive pickup; flexible probe; protective rubber shell; LCD display; power ON OFF RESET button; secondary function acquisition key; push button ignition system; main function calibrate button 9. motor cycles button. Can be used to measure RPM, spark volt measurements, measures candle burning time. Using advanced microcontroller technology, no ground wire connections required. Has minimum and maximum functions (for COP and SPW mode), maintains a continuous record of the minimum and maximum readings of the currently selected function. With spark calibration function (for COP mode only), requires the user to calibrate the tools in order to measure spark kvolt in the coil on the spark plug and the coil near the ignition systems plug. The analyzer can be used to measure each speed of the automobile engine ignition cylinder, high voltage ignition coil ignition coil voltage and the injection time of each cylinder. It is induction type, without disassembling any stroke.
