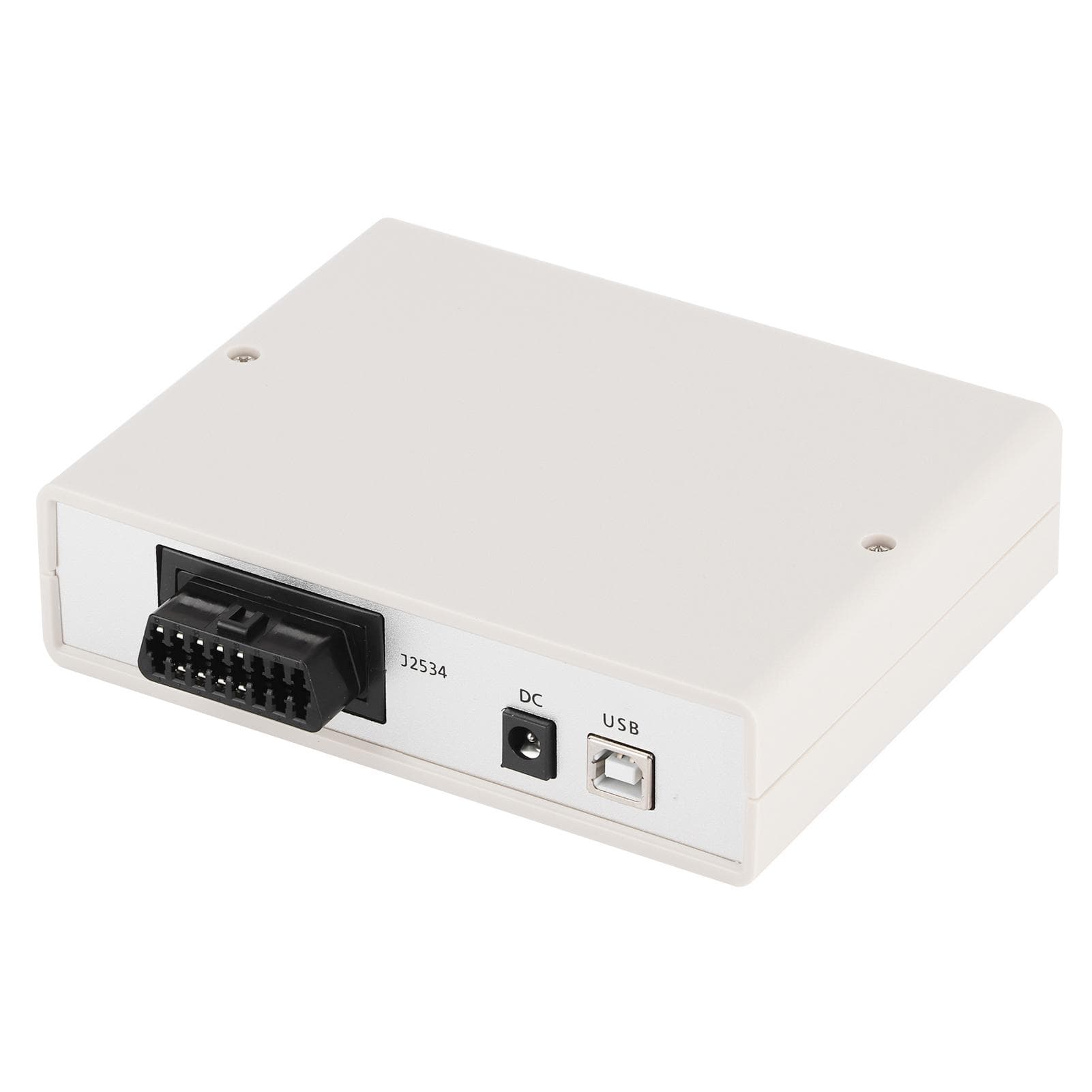

ECU Power Box FLASH with Full Adapters for JTAG Works ECU Openport

About this item

• Feature: 1. Professional tools, directly fit for JTAG Works ECU Openport J2534 flash memory using. 2. There is a detailed description of the wiring usage in the parameters, which greatly reduces the difficulty of use and makes you easy to control. 3. The tool has 3 switches for operating in different modes for easy control. 4. Designed for connecting to the computer. It is to be connected when the built?in USB UART converter is enabled. 5. Built to strict quality control standards, design improved for high quality and good performance. Specification: Item Type: ECU Device Box Material: ABS+MetalPlug: US PlugVoltage: 100240V It Is Compatible In The Automatic Mode With The Loading Programs which use: BOOTOEM12, 12 pin OBDII; LLINE, 15 pin OBDII. The Tool Has Builtin Current Limiting Resistors On The Following Signal lines: RESET 510 Ohm ; BOOT 510 Ohm ; CNF1 220 Ohm . The Tool Is Fitted With Multipurpose Connectors Which Allow To Establish the connections flexibly: USB: Designed for connecting to the computer. It is to be connected when the builtin USB UART converter is enabled; DC: Designed for powering the builtin circuit as well as the connected ECU. It is recommended to use only quality units with 12V output voltage. While reading the password, when it is impossible in the vehicle, one must note that highvoltage converters in ECUs consume rather high current at the start which can trigger protection mechanism or even result in the power unit damage; J2534 (OBDIIF): Designed for connecting the same name interface to OBDII; DB15: Designed for connecting to the main ECU connector. It is recommended to use 14P600KT02, 14P600KT03 cables or analogous ones; IDC26: Designed for connecting directly to the ECU board or via the adapter to the special head. It is recommended to use 14P600KT06 cable or an analogous one for Tricore GPT. It is recommended to use Flash Development Toolkit software for flashing for Renesas CPUs. Controls: The tool has 3 switches for operating in different modes. POWER: Power Control. The Tool Has Three Modes Of Power Supply To the ECU: OFF allows to remove all power and control signals from IDC26 and DB15 connectors; MANUAL supplies power to VECU and VKEY terminals and to the control outputs depending on the chosen tactics; AUTO, automatic control, in this mode power is controlled by the loading program with LLine signal (15 pin OBDII). BOOT: Simultaneous Control Of BOOT, RESET And CNF1 Signals (3.3V): OFF, allows to remove all control signals from DB15 connector; MANUAL pulls RESET and BOOT to the signal minus, and CNF1 to +3.3V; AUTO, automatic control, in this mode BOOT, RESET and CNF1 signals are simultaneously controlled by the loading program (12 pin OBDII, OEM12). GPT: Dor for Renesas and for Tricore with GPT CPUs. It is necessary to use 5V while working with SH705x CPUs, in other cases 3.3V is to be used. Lights: LED near the 5V3.3V switch indicates 5V or 3.3V voltage supply. VECU, VKEY LED indicates VECU and VKEY voltage supply. 12V LED indicates power voltage. BOOT LED indicates voltage on CNF1 output (the LED works both for input and output).. Package List: 1 x ECU Power Box 1 x Power Cord2 x Wire Set1 x Color Circuit StickersProfessional tools, directly fit for JTAG Works ECU Openport J2534 flash memory using. There is a detailed description of the wiring usage in the parameters, which greatly reduces the difficulty of use and makes you easy to control. The tool has 3 switches for operating in different modes for easy control. Designed for connecting to the computer. It is to be connected when the built?in USB UART converter is enabled. Built to strict quality control standards, design improved for high quality and good performance.
