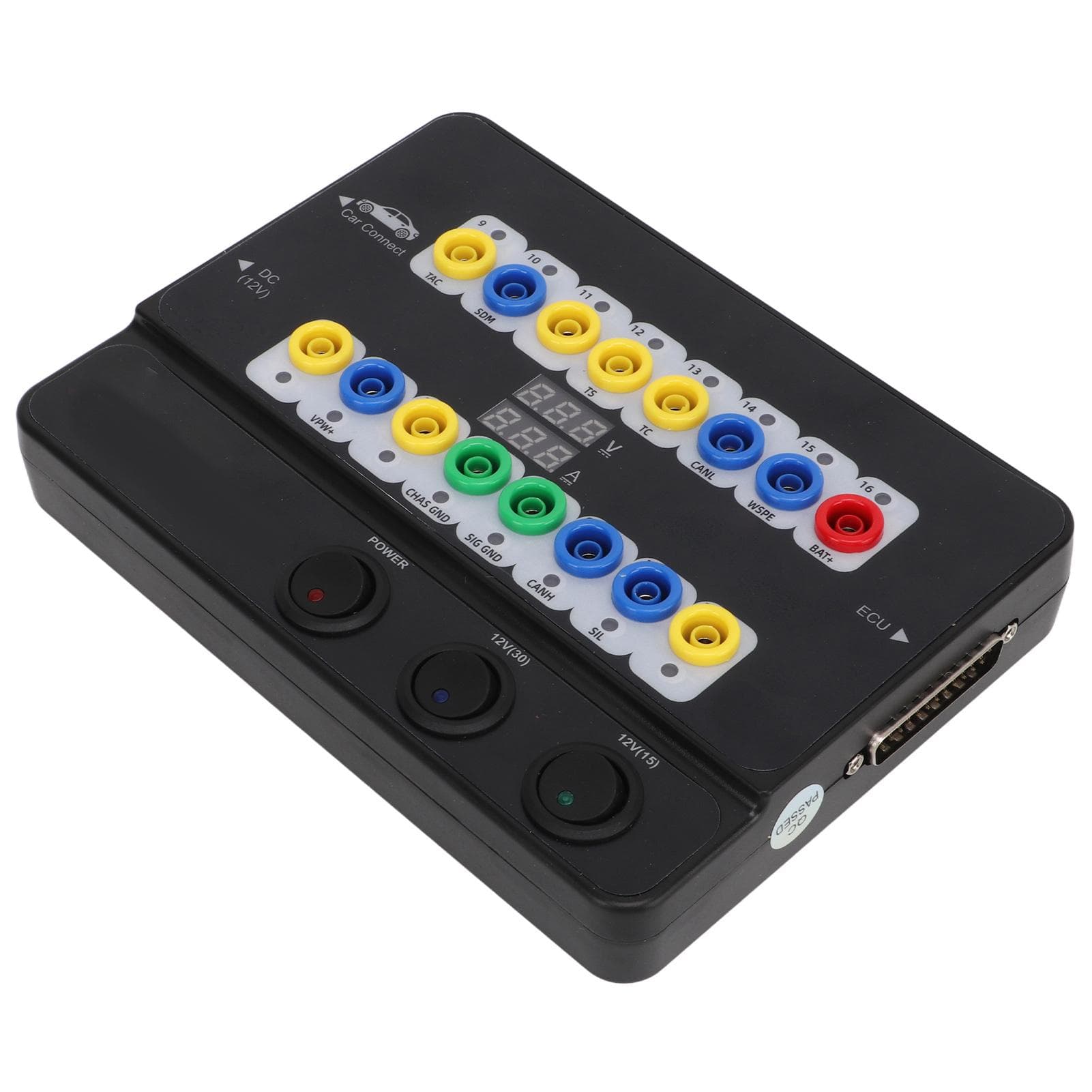

for GODIAG GT100+ ECU Bench Connector OBDII Breakout Protocol Detector Box Car Diagnostic Tool

About this item

• Feature: 1. Feature: The for GODIAG GT100+ ECU Connector is a platform for OBDII protocol communication detection and ECU maintenance, diagnosis, programming and coding. 2. Main Function: Convert the car OBD2 interface into 16 pin for signal detection and electrical level conversion. Can also be connected with any diagnostic tool to tell whether the car communication is good or not. 3. Temporary Power Supply: Supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, when the key remote control fails and the fault light turns on. 4. Electronic Current Display: You can intuitively see the current display of the ECU by connecting the ECU module with the Banana interface or the DB25 cable, which can make your work much easier. 5. ECU Testing: Intuitively see the current status of the ECU, then you can check whether the wiring is wrong, if so, there is no need to perform diagnostic communication and can directly repair the ECU. 6. Unique Functions: Convert OBD1 diagnostic interface to the standard OBD2 diagnostic interface. Reset instrument or immobilizer when all keys lost. Adds CANBUS Protocol Communication. Specification: Item Type: ECU ConnectorMaterial: ABSFeature: A platform for OBDII protocol communication detection and ECU maintenance diagnosis programming coding. Function:The tool can convert the car OBD2 interface into 16 pin for signal detection and electrical level conversion. Able to connect the single modules or multiple modules of the vehicle. It can be connected with any diagnostic tool to tell whether the car communication is good or not. It can also supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, the key remote control fails and the fault light turns on. Highlights: 1. New generation of GT100, Adds Electronic Current Display. You can intuitively see the current display of the ECU by connecting the ECU module with the Banana interface or the DB25 cable, which can make your work much easier. 2. ECU connection, OBDII Protocol Detector, Electronic Current Display. 4. Work together with for Xhorse VVDI2, for Autel devices, for Launch, for Foxwell etc. 5. Convert OBD1 diagnostic interface to the standard OBD2 diagnostic interface. Details: 1. GT100+ has Electronic Current Display. On bench connect the ECU module by using the banana connector or db25 dedicated ECU adapter, for Godiag GT100+ will display the electronic current. The advantage to display electronic current value: The user can intuitively see the current status of the ECU. There is no current display or the actual displayed current is inconsistent with the engineer s expected current, then you can immediately check whether the wiring is wrong, if the wiring is correct, you can judge that the ECU may be broken, so there is no need to perform diagnostic communication and can directly repair the ECU. If it shows too much current, then you can also determine if the cable is incorrectly connected or the ECU is broken. 2. GT100+ Adds CANBUS Protocol Communication GT100+ Pin 1, 9, 3, 11 12, 13, 8 [corresponding to the yellow banana connector on the machine], these non standard obd2 protocol interface may display CAN BUS or KLine communication protocol. GT100 can only display KLine Pwm Vpw+ KWP 2000 protocol. GT100+ will display CANBUS KLine Pwm Vpw+ KWP 2000 protocol communication. 3. Reset instrument or immobilizer when all keys lost When you want to program key replacement for Mitsubishi and other cars with all keys lost, or to program ECU, you need to activate the dashboard (reset instrument) or wake up the immobilizer module first. Then you can operate directly by using GT100 GT100+. a. To replace the engine ECU or to use some key programmer to program when all keys lost, it requires to short circuit PIN13PIN4 b. To program replacement for Mitsubishi key with all keys lost or to set OBDII when all remote keys lost, please short circuit PIN1PIN4. c. For 4th generation 5th generation keys (for example new for A6L A4 Q5 A7), please use GT100+ to short circuit banana connector PIN 16PIN 1 to lit up the dashboard, after that use the key programming tool to connect with the female adapter of GT100+ for data collection. Some vehicle dashboards won t be lit up, but data can also be collected, for example: A6L Q7. . Package List: 1 x Car Diagnostic Tool3 x Cable2 x Manual7 x Accessory1 x Power SupplyFeature: The for GODIAG GT100+ ECU Connector is a platform for OBDII protocol communication detection and ECU maintenance, diagnosis, programming and coding. Main Function: Convert the car OBD2 interface into 16 pin for signal detection and electrical level conversion. Can also be connected with any diagnostic tool to tell whether the car communication is good or not. Temporary Power Supply: Supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, when the key remote control fails and the fault light turns on. Electronic Current Display: You can intuitively see the current display of the ECU by connecting the ECU module with the Banana interface or the DB25 cable, which can make your work much easier. ECU Testing: Intuitively see the current status of the ECU, then you can check whether the wiring is wrong, if so, there is no need to perform diagnostic communication and can directly repair the ECU.
