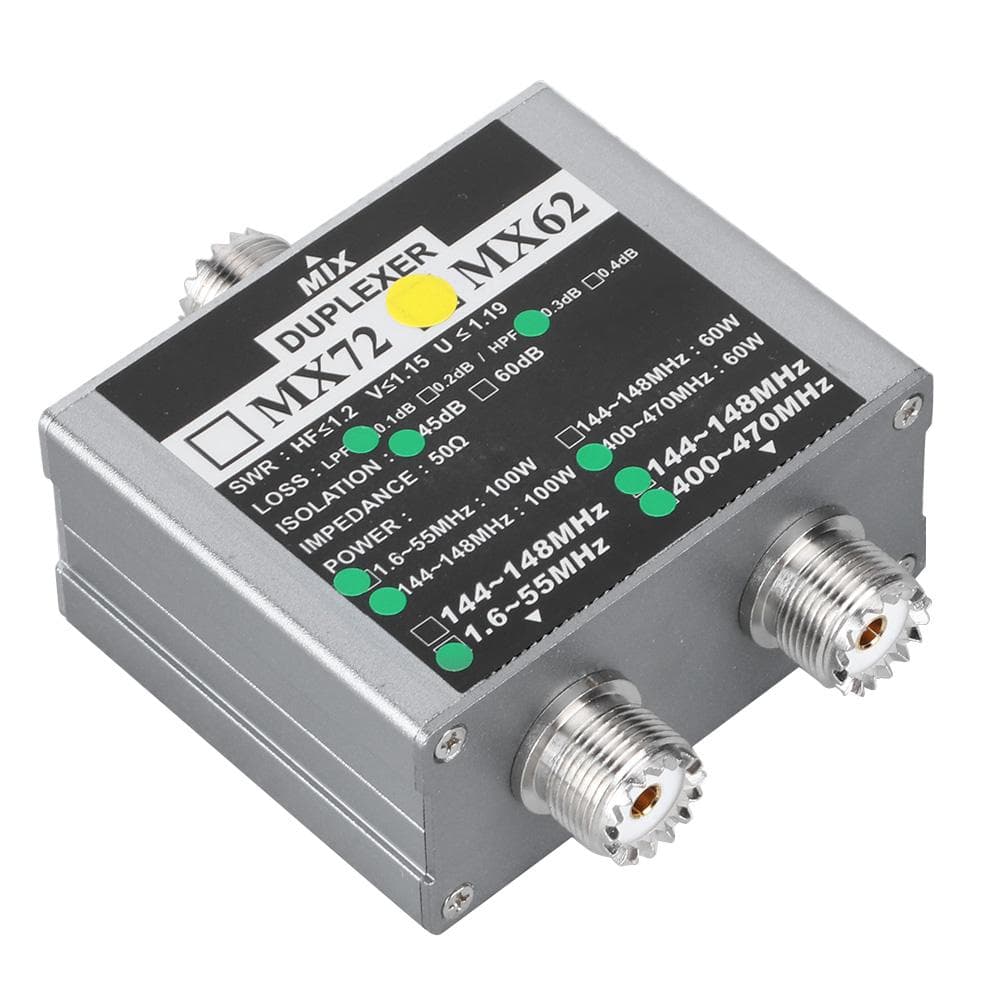

MX62 VHfUHF Duplexer 144148MHz 400470MHz Different Frequency Indoor Antenna Combiner

About this item

• Feature: 1. The MX62N duplexer is a series of inductance coils and capacitors that acts as a band?pass filter. 2. Combines the output of the HFVHF transceiver and the output of the UHF transceiver so that both transceivers can be connected to the same antenna. 3. Can also be used to separate UHFVHF transmissions from UHF transmissions so that one transceiver can be connected to two antennas. 4. The MX62N duplexer can be used in two different ways, used in different frequency, can not transmit at the same time. 5. The MX62 VHF + UHF duplexer is designed for indoor use, usage frequency is 1.6‑55MHz 144‑148MHz&400‑470MHz. Specification: Condition: 100percent Brand New Item Type: UHF+VHF Duplexer Material: Alloy Color: As Pictures ShownSize(W x H x D): Approx. 74 x 33 x 63mm2.9 x 1.3 x 2.5in Operating Frequency: 1.6 55MHz144 148MHz & 400 470MHz.Endurance: 1.655MHz & 144148MHz: 100W 400470MHz: 60W Isolation: 45 dB Insertion Loss: 1.655MHz: 0.1dB or Less 144148MHz & 400470MHz: 0.3dB or Less SWR: HF: 1.2 or Less, VHF: 1.15 or Less, UHF: 1.19 or Less Impedance: 50 Ohm Coaxial Feeder: 5DFB (Length: Approx. 30cm11.8in) Interface: MJMP MPNote: The MX62 VHF+UHF Duplexer is designed for indoor use.If you use the MX62 VHF+UHF Duplexer outdoors, it should only be used for short periods of time under good weather conditions. Do not use the MX62 VHF+UHF duplexer outdoors when there is any kind of precipitation. Package List: 1 x Duplexer2 x Frequency Dividing Line Note: The MX62 VHF+UHF Duplexer is designed for indoor use.If you use the MX62 VHF+UHF Duplexer outdoors, it should only be used for short periods of time under good weather conditions. Do not use the MX62 VHF+UHF duplexer outdoors when there is any kind of precipitation.The MX62N duplexer is a series of inductance coils and capacitors that acts as a band?pass filter. Combines the output of the HFVHF transceiver and the output of the UHF transceiver so that both transceivers can be connected to the same antenna. Can also be used to separate UHFVHF transmissions from UHF transmissions so that one transceiver can be connected to two antennas. The MX62N duplexer can be used in two different ways, used in different frequency, can not transmit at the same time. The MX62 VHF + UHF duplexer is designed for indoor use, usage frequency is 1.6‑55MHz 144‑148MHz&400‑470MHz.
