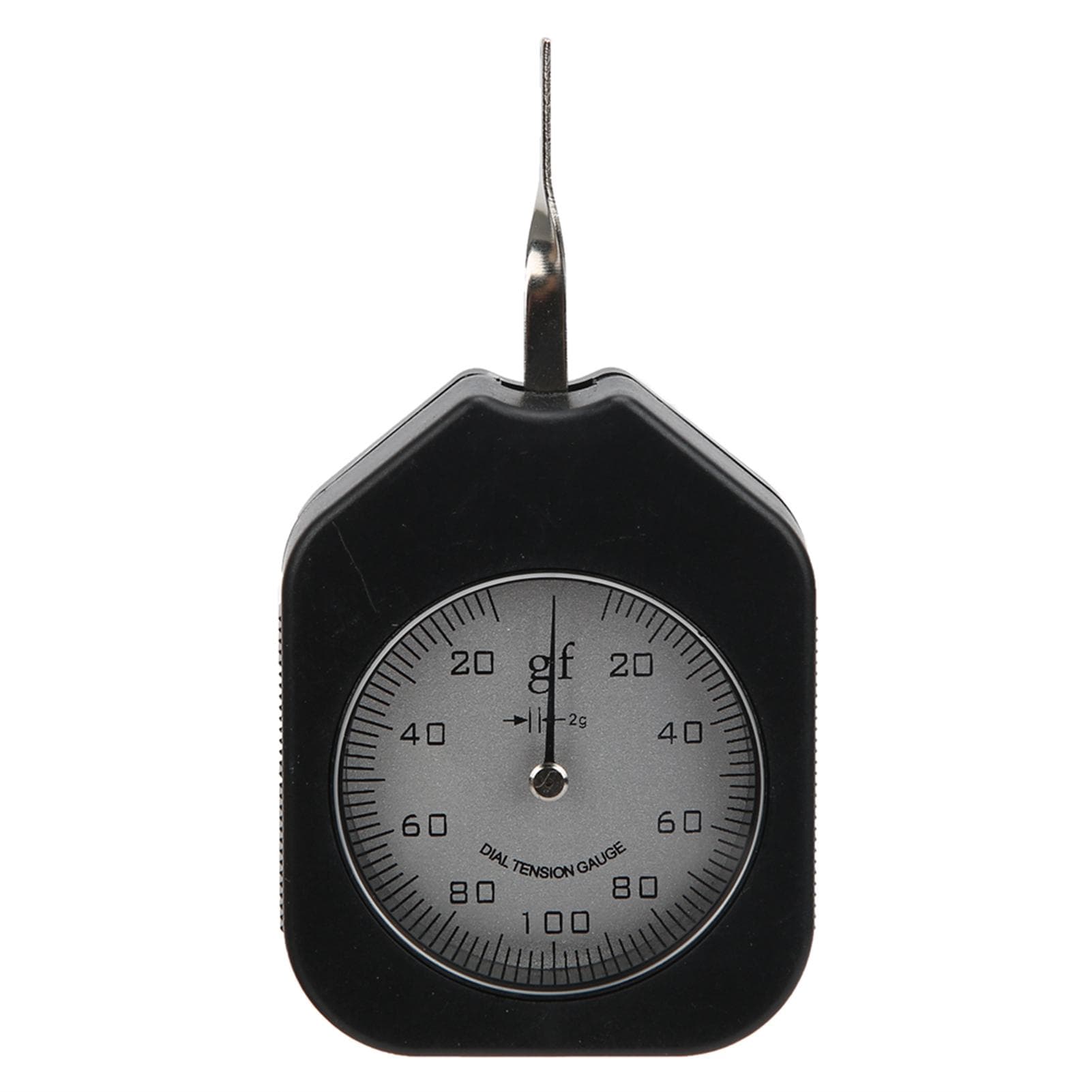

SEG?100?1 Gauge Tension Meter Single Needle Switch Dynamometer 100g for Measuring Force

About this item

• Feature: 1. Small and portable style, streamlined body in gray?black, low?key and stable without losing fashion. 2. High?quality alloy, accurate and worry?free, and forged with fine craftsmanship to make the measurement more accurate. 3. Holding with one hand, having a good feel can make the measurement work easier. 4. It is suitable for the measurement of relay contact pressure, electronic switch and micro switch. 5. The data on the dial can be read when measuring with the single?needle dynamometer, which is convenient and quick. Specification: Item Type: Tensiometer Material: ABS+Alloy Model Specification: SEG1001 Pointer: Single Needle Measurement Value: 100g Graduation Value: 2g Scale Style: 2010020 Accuracy: +0.5 Product Use: Tensiometer (in grams) is suitable for mechanical pressure such as relay contact pressure, electronic switch, micro switch, valve, spring tension, dial measuring instrument spindle pressure, automatic telephone equipment contact and armature pressure, tape recorder buffer Device pressure and other contact point pressure, and other precise pressure and tensile tests. How to use: When testing, just pull the object to be tested with the stylus to move it from the static state to the required position. The tensiometer can be tested either clockwise or counterclockwise, but the stylus arm must always be perpendicular to the direction of the pushpull force; tension meter is divided into single and double needles. The singleneedle tensiometer measures and reads immediately. After the doubleneedle tensiometer measures the highest value, the slave needle stops moving, which is convenient for the tester to read the test value.. Package List: 1 x Tensiometer Note: 1. Do not drop the product randomly,2. Do not bend the measuring alloy probe,3. When the product cannot be calibrated, you can open the back cover for calibration. It is not recommended to open the back cover for calibration frequently.Small and portable style, streamlined body in gray?black, low?key and stable without losing fashion. High?quality alloy, accurate and worry?free, and forged with fine craftsmanship to make the measurement more accurate. Holding with one hand, having a good feel can make the measurement work easier. It is suitable for the measurement of relay contact pressure, electronic switch and micro switch. The data on the dial can be read when measuring with the single?needle dynamometer, which is convenient and quick.
