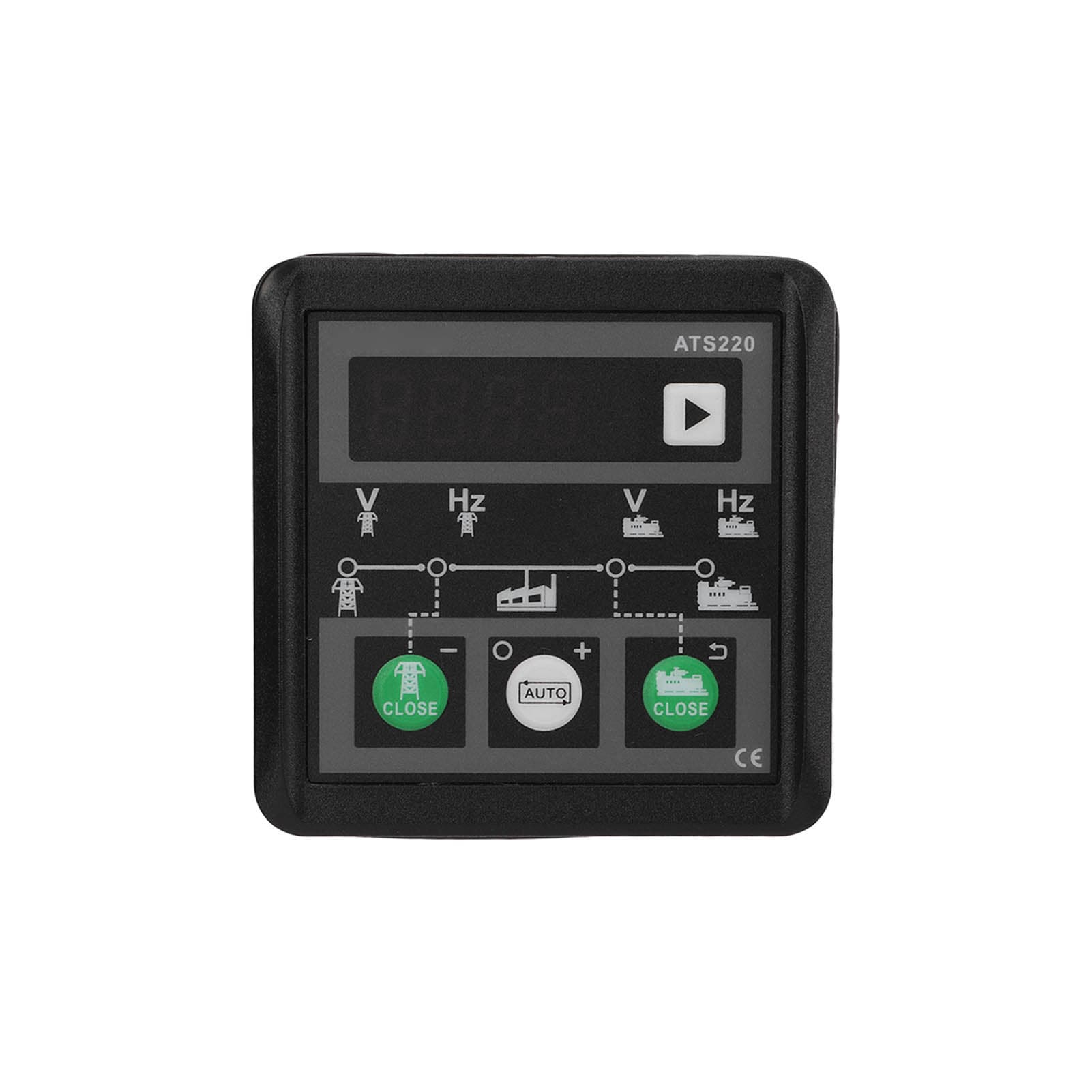

ATS220 AC30?300V Mains Genset Power Controller Automatic Switch Module with LED Display

About this item

• Feature: 1. LED Display: Equipped with 4 digit LED digital tube, it can clearly display the voltage and frequency of mains and power generation. 2. Mains Genset Automatic Switching Controller: It has the function of simulating mains and can flexibly select the starting conditions of the unit. 3. IP54 Protection Level: With standard waterproof rings, the protection performance of the panel after installation reaches IP54 level. 4. Easy To Control: Dual power switch controller, all parameters can be set directly through the panel keys, easy to operate. 5. Simple Assembly: Modular design, all connections are completed through European terminal blocks, which is convenient for installation. Specification: Item Type: Genset Power Controller Material: ABS Model: ATS220 Purpose: Power Switch Control Display: LED Parameter Item Parameter Range (Default Value) Mains Normal Delay 06500s (10s) Mains Abnormal Delay 06500s (5s) Normal Power Generation Delay 06500s (10s) Generator Set Start Up Delay 06500s (1s) Generator Set Shutdown Delay 06500s (5s) Closing and Opening Pulse Width 1.010.0s (10.0s) Conversion Interval Delay 03600.0s (1.Os) Over Conversion Delay 020s (20s) Mains Low Voltage Trip Value 55330V (184V) Mains Low Voltage Return Value 55330V (207V) Mains High Voltage Trip Value 55330V (276V) Mains High Voltage Return Value 55330V (253V) Generator Over Frequency Alarm Value 4080.0Hz (57.0Hz) Generator Under Frequency Alarm Value 070.0Hz (40.0Hz) Generator Overvoltage Alarm Value 0360V (264V) Generator Undervoltage Alarm Value 0360V (192V) Closed State Input Enable 0Disabled Indicating Name Main Function Mains Voltage Indication Indicates that the current display is the mains voltage E, when the load is switched to the mains, it will automatically display the mains voltage Mains Frequency Indication Indicates that the current displayed parameter value is the mains frequency Power Generation Voltage Indication Indicates that the current display is generating voltage, when the negative line is switched to generating, it will automatically display the generating voltage Generating Frequency Indication Indicates that the current displayed parameter value is the power generation frequency Mains Status Indication Always on when the mains power is normal, flashing when lowvoltage and high voltage alarms, and off when there is no mains power Mains Closing Instruction Lights up when mains closing is effective Power Generation Status Indicator Always on when power generation is normal, flash when low and high voltage alarms, and go out when there is no mains power Power Generation Closing Instruction Lights up when the power generation closing is effective. Auto Mode Indication Lights up when working in automatic mode, and goes off when working in manual mode . Package List: 1 x Controller2 x Terminal2 x Fixer1 x Manual Note: Keep away from open flames.LED Display: Equipped with 4 digit LED digital tube, it can clearly display the voltage and frequency of mains and power generation. Mains Genset Automatic Switching Controller: It has the function of simulating mains and can flexibly select the starting conditions of the unit. IP54 Protection Level: With standard waterproof rings, the protection performance of the panel after installation reaches IP54 level. Easy To Control: Dual power switch controller, all parameters can be set directly through the panel keys, easy to operate. Simple Assembly: Modular design, all connections are completed through European terminal blocks, which is convenient for installation.
