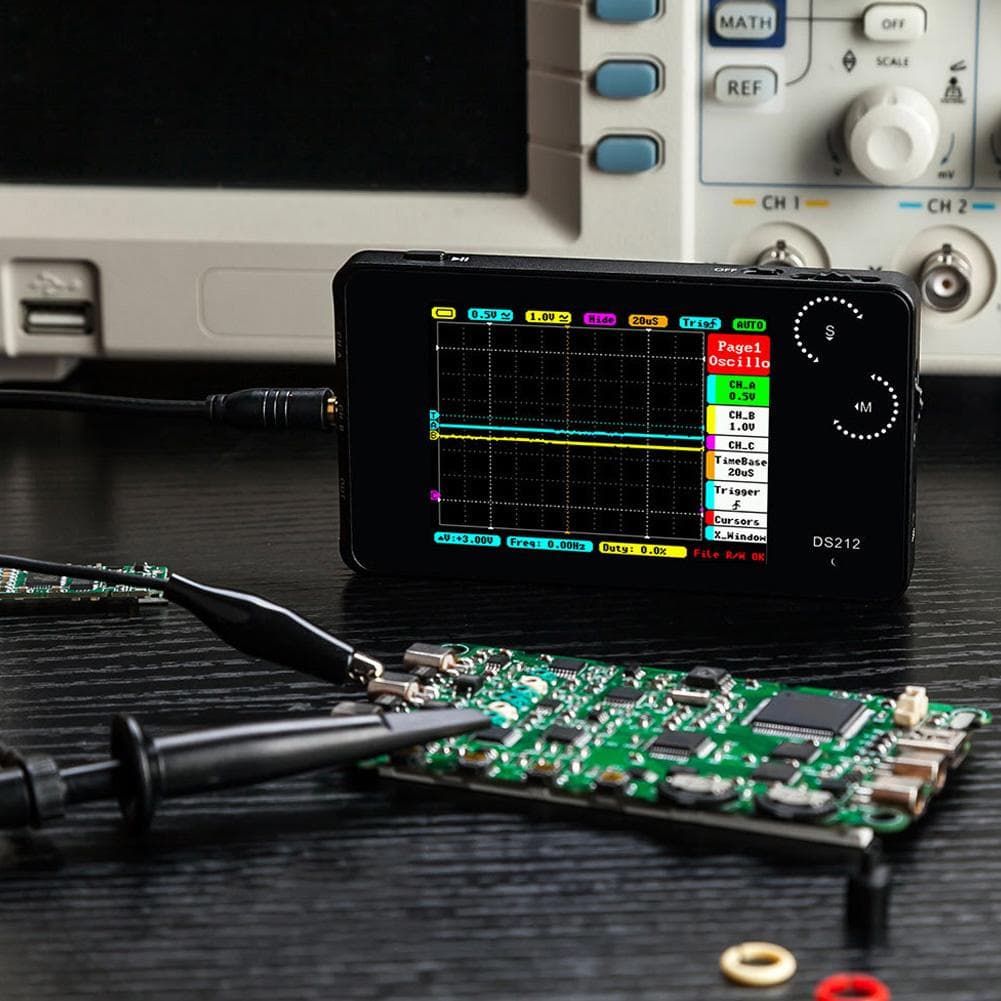

DS212 Portable Digital Oscilloscope Pocket Size 2 Channel Oscilloscope with USB Interface

About this item

• Feature: 1. Multiple Purpose: Inbuilt signal generator10Hz1MHz square wave (duty adjustable) or 10Hz20KHz SineSquareTriangleSawtooth wave. 2. Builtin 500mAh lithium battery, adopts Micro USB interface for charging. 3. Powerful Performance, with modes of vertical range, adaptive horizontal and triggering threshold. Builtin 8MB Udisk storage for waveform data and images. 4. Synchronous mode: Auto, Normal, Single, None, Scan. Auto measurement: frequency, cycle time, duty cycle, RMS voltageVpp VmaximumVminVavg. 5. Pocket size digital storage oscilloscope meets basic electronic engineering requirements. 320x240 Colorful TFT display, mini and compact. 6. RisingFalling edge trigger, adjustable highlow trigger level and triggering sensitivity. Specification: Condition: 100percent Brand New Item Type: Oscilloscope Material: Aluminium Alloy Color: As shown in the picture Weight: Approx.344g12.1oz Sampling rate 10Msas (maximum) Analog channel signal bandwidth 1MHz Sampling storage depth 8K (maximum) Standard input impedance of analog channels 1M Ohm Analog channel input voltage +40V (maximum, X1 probe) Analog channel input coupling mode ACDC Analog channel input sensitivity range 20mvDiv~10VDiv (125 step) Horizontal scanning time base range 1uSDiv~2SDiv (125 step) Function parameter Mode with Auto, Normal, Single, None, Scan synchronization mode Trigger mode with risingfalling edge trigger mode Settable mode can set adaptive horizontal, vertical range, trigger threshold mode Measurement signal Measurable signal frequencyperiodduty cycle, RMS voltageVpp VmaximumVminVavg Signal source Builtin 10Hz~1MHz square wave (adjustable duty cycle) or 10Hz~20KHz SineSquareTriangleSawtooth wave Source storage capacity builtin U disk storage capacity 8MB, can store waveform data and waveform images Battery Builtin 500mAh lithium battery, charged by Micro USB port Display color TFT LCD display (resolution 320x240) Host size 100x56.5x10mm3.9x2.2x0.4in . Package List: 1 x Oscilloscope 1 x USB Charging Cable2 x Oscilloscope Probe4 x Color Ring1 x Socket Head Wrench2 x IC Caps2 x Ground 2 x Test Hook Hat Note: 1. Please allow 12cm error due to manual measurement. Thanks for your understanding.2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard. Multiple Purpose: Inbuilt signal generator10Hz1MHz square wave (duty adjustable) or 10Hz20KHz SineSquareTriangleSawtooth wave. Builtin 500mAh lithium battery, adopts Micro USB interface for charging. Powerful Performance, with modes of vertical range, adaptive horizontal and triggering threshold. Builtin 8MB Udisk storage for waveform data and images. Synchronous mode: Auto, Normal, Single, None, Scan. Auto measurement: frequency, cycle time, duty cycle, RMS voltageVpp VmaximumVminVavg. Pocket size digital storage oscilloscope meets basic electronic engineering requirements. 320x240 Colorful TFT display, mini and compact.
